Fluid control and management are essential components of any industrial, commercial, or residential system. Whether it’s water distribution, oil and gas pipelines, chemical processing, or HVAC systems, maintaining the correct flow direction and preventing backflow is critical to protecting equipment, reducing downtime, and ensuring system safety. Among the range of valves used for this purpose, piston check valves—also known as lift check valves or spring-loaded piston checks—stand out for their ability to handle high pressures, rapid flow reversals, and demanding operating conditions.
Piston check valves are engineered to allow flow in one direction while preventing reverse flow. Unlike some other check valves, they provide rapid closure, helping prevent water hammer and damage to pumps, pipelines, or sensitive equipment. In this article, we explore the construction, function, and advantages of piston check valves, compare them to swing check valves, examine material selection, discuss industry applications, and explore future trends in valve technology.

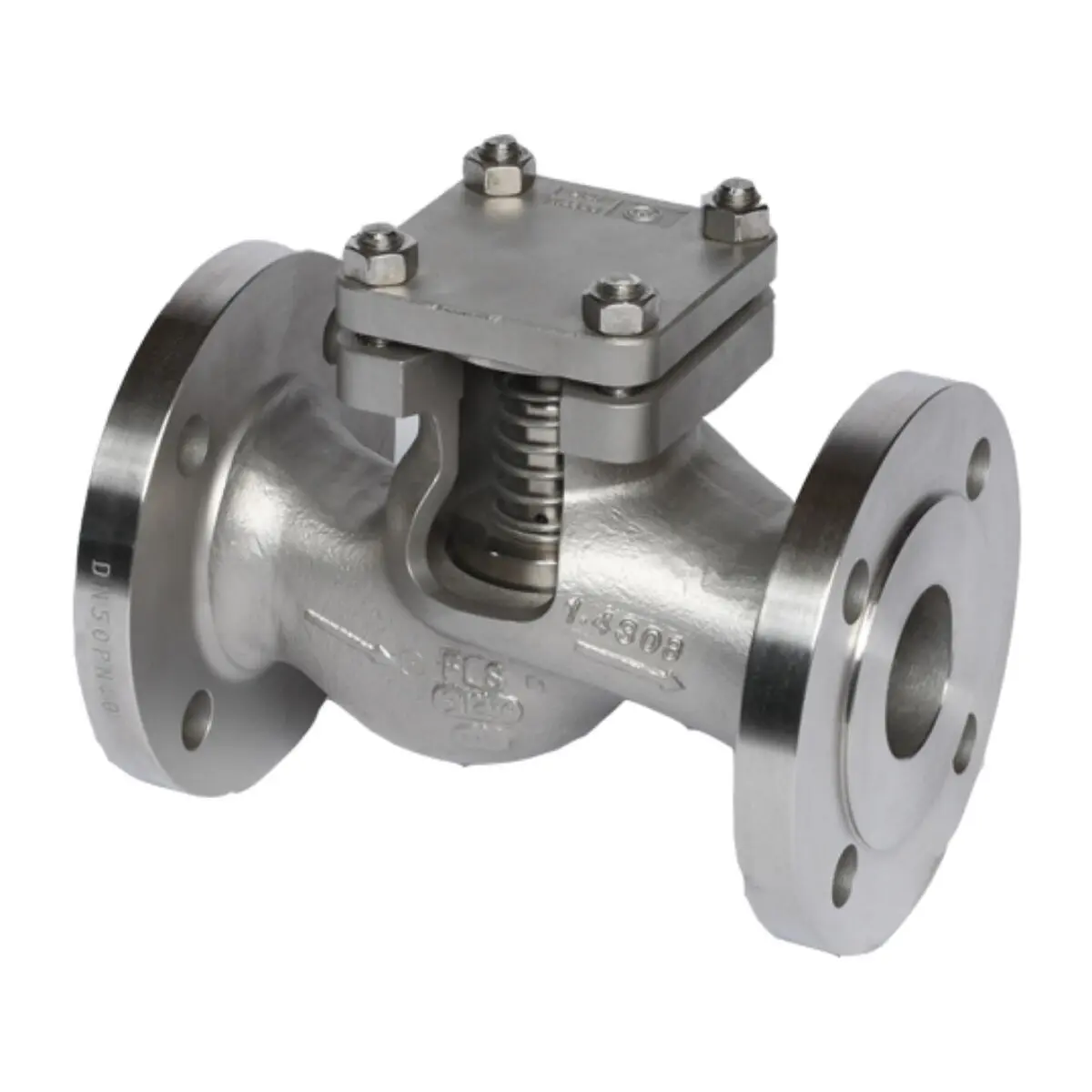

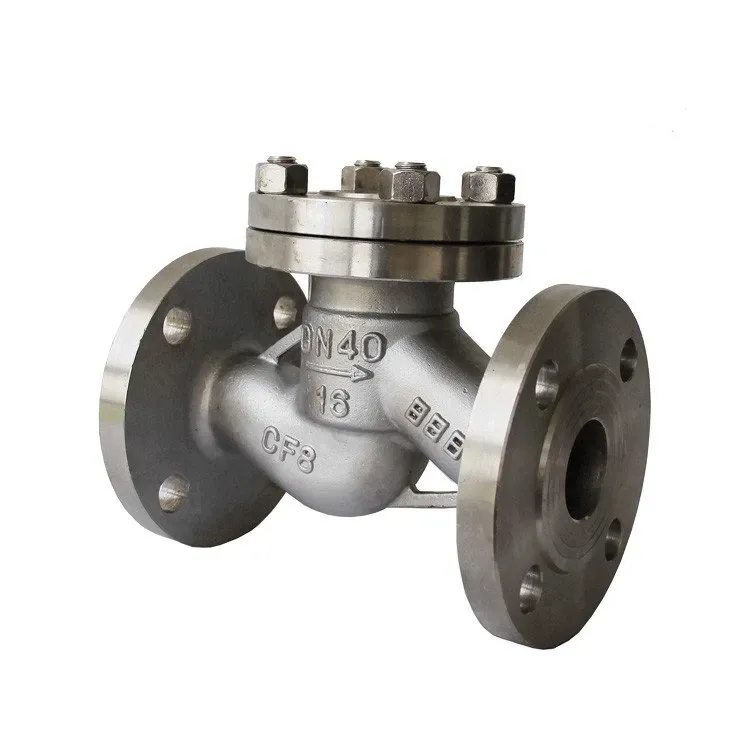

A piston check valve is a spring-loaded valve engineered to allow flow in one direction while preventing reverse flow. It features a cylindrical piston that lifts when fluid moves forward and seals tightly against the seat when flow reverses. This design ensures quick closure and prevents backflow that could lead to system damage, contamination, or operational failures. Commonly used in high-pressure applications such as oil and gas, chemical processing, water treatment, and steam systems, piston check valves offer reliable performance, durability, and protection for pipelines and critical equipment in demanding industrial environments.
Valve Body – The outer shell that connects to the piping system and contains all internal components. It is typically made of stainless steel, brass, cast iron, or specialized alloys for high-performance applications.
Seat – The area where the piston rests to seal the valve and prevent reverse flow.
Spring – Provides a closing force to rapidly move the piston back onto the seat once forward flow diminishes.
Piston (Cylindrical Plunger) – Moves up and down inside the valve body to regulate flow. It lifts when fluid flows in the desired direction and returns to the seat during flow reversal.
A piston check valve is designed to control fluid flow in one direction while preventing reverse flow, making it a vital component in high-pressure pipelines and systems prone to sudden flow changes. The valve operates based on both the direction and pressure of the fluid.
During forward flow, fluid enters the valve from beneath the seat. The pressure of the fluid lifts the cylindrical piston, allowing the liquid or gas to pass freely through the valve body. As long as the forward pressure is maintained, the piston remains lifted, and the flow continues without obstruction.
When the flow slows or attempts to reverse, the spring-loaded mechanism combined with gravity forces the piston back onto the valve seat. This rapid movement creates a tight seal, effectively blocking any backflow.
The quick closure of the piston check valve is particularly beneficial in preventing water hammer, a phenomenon where a sudden stop or reversal of fluid generates shockwaves in the pipeline. Water hammer can damage valves, fittings, pumps, and even the pipeline itself. By closing swiftly and reliably, piston check valves protect the system, maintain operational efficiency, and ensure safety in industrial, chemical, water treatment, and steam applications.
Piston check valves are widely used in industries where high-pressure handling, fast flow reversal, and reliability are crucial. Some of the main advantages include:
Rapid Closure: The spring-loaded design allows the piston to close almost immediately upon flow reversal, reducing the risk of water hammer.
High-Pressure Capability: Unlike swing check valves, piston check valves are suitable for high-pressure systems, making them ideal for oil and gas, chemical, and steam applications.
Precision Flow Control: The piston creates a tight seal against the valve seat, providing precise control over flow direction and preventing leakage.
Durability: Built with high-strength materials like stainless steel or high-performance alloys, piston check valves withstand demanding operational conditions.
Versatility: Effective in systems carrying liquids, gases, or steam, piston check valves are adaptable to multiple industrial environments.
Despite their advantages, piston check valves have some limitations:
Higher Pressure Drop: The spring and piston design can create a slightly higher pressure drop compared to simpler swing or ball check valves.
Complex Installation: The alignment of the piston and spring requires precise installation, particularly in vertical pipelines.
Higher Cost: More complex design and additional components result in higher manufacturing and maintenance costs.
Regular Maintenance: To ensure optimal operation, periodic inspections are necessary to prevent spring fatigue, piston wear, and leakage.
Understanding the differences between swing check valves and piston check valves helps engineers select the appropriate valve type for specific applications.
Swing Check Valve: Uses a hinged disc that swings open in the direction of flow and closes under reverse flow, relying on gravity and fluid pressure. Simple, effective, and easy to maintain.
Piston Check Valve: Uses a cylindrical piston that moves vertically to allow or prevent flow. The spring-assisted piston closes quickly to prevent backflow and water hammer.
Swing Check Valves: Suitable for low to medium-pressure systems. They provide minimal resistance but can be slower to close and may allow some backflow under high-pressure surges.
Piston Check Valves: Designed for high-pressure and rapid flow-reversal applications. They provide precise flow control and are effective in preventing backflow even under challenging operating conditions.
Swing Check Valves: Simple to install and maintain, often requiring little attention once placed in the system.
Piston Check Valves: Require careful installation due to piston and spring alignment. Regular maintenance ensures proper operation and prevents wear, spring fatigue, or leakage.
Swing Check Valves: Generally lower in cost and widely available, making them ideal for general-purpose applications.
Piston Check Valves: Higher initial cost due to more complex design but offer long-term protection and reliability in critical systems.
Material selection is crucial to ensure optimal performance, longevity, and safety. Factors to consider include:
Fluid Type: Corrosive fluids require corrosion-resistant materials such as stainless steel or specialized alloys.
System Pressure and Temperature: High-pressure systems demand materials with strong mechanical properties.
Environmental Conditions: Outdoor or aggressive chemical environments may require materials that resist oxidation, scaling, and chemical attack.
Stainless Steel: High strength, corrosion resistance, and durability. Suitable for harsh environments and high-pressure applications.
Brass: Good corrosion resistance and machinability. Used in low-pressure systems and residential applications.
Polymers/Composites: Lightweight, corrosion-resistant, and cost-effective. Ideal for low-maintenance, non-critical systems.
Proper material selection can extend valve service life by up to 40%, reducing maintenance costs and system downtime.
Piston check valves are highly versatile and serve a wide range of applications:
Prevent reverse flow in pipelines, compressors, and gas processing facilities.
Handle high-pressure and high-temperature conditions.
Protect pumps, filters, and pipelines from backflow.
Maintain water quality and prevent contamination.
Resistant to aggressive chemicals and extreme operating conditions.
Provide precise control in high-pressure pipelines.
Prevent backflow into boilers, protecting equipment from damage.
Suitable for high-temperature steam lines and condensate return systems.
Maintain consistent flow in multi-story buildings.
Prevent water hammer and backflow in complex piping networks.
Prevent reverse flow in chilled water or heating loops.
Protect pumps and valves from pressure surges.
Although piston check valves are durable, regular maintenance is essential to ensure reliable operation:
Inspect Springs: Check for fatigue or corrosion, which can affect closing speed.
Examine Pistons: Ensure smooth movement and inspect for wear or damage.
Check Seats: Confirm proper sealing to prevent leakage.
Clean Debris: Remove dirt, scale, or deposits that can impede piston movement.
Lubrication: Use manufacturer-recommended lubricants to maintain smooth piston operation in high-wear systems.
Proper maintenance reduces the risk of failures, minimizes downtime, and ensures system safety.
As industries evolve, piston check valves continue to adapt to meet higher demands:
Advanced Materials: High-performance alloys and composite materials offer enhanced strength and corrosion resistance.
Smart Monitoring: Integration with IoT sensors for real-time flow and pressure monitoring.
Compact Designs: Optimized internal geometry to reduce pressure drop while maintaining high performance.
Sustainability: Longer service life reduces replacement frequency, minimizing waste and lowering environmental impact.
Customization: Tailored solutions for extreme applications, such as cryogenic, high-temperature steam, or aggressive chemical handling.
Piston check valves are essential components for ensuring reliable, safe, and efficient fluid control in high-pressure and critical applications. Their rapid closing design, high-pressure tolerance, and precise flow control make them indispensable in industries ranging from oil and gas to water treatment and chemical processing.
While they may have higher initial costs and require more careful installation and maintenance than swing check valves, the benefits of piston check valves—preventing backflow, reducing water hammer, and protecting sensitive equipment—far outweigh these challenges.
Selecting the right material, design, and size ensures optimal performance, extended service life, and minimal maintenance, making piston check valves a valuable investment for industrial systems.
As technology advances, piston check valves continue to evolve, offering smarter, more efficient, and durable solutions for modern pipeline systems. Engineers, facility managers, and operators must understand their advantages, limitations, and applications to leverage their full potential and ensure system safety and efficiency.
