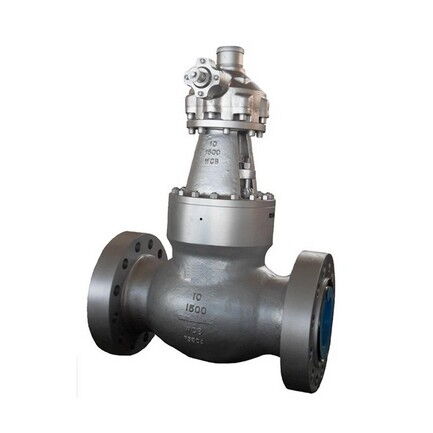

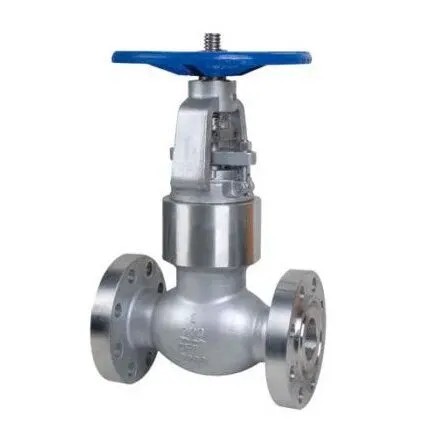

Industrial valves are the backbone of critical systems in oil and gas, power generation, chemical processing, and petrochemical plants. Among them, the pressure seal bonnet globe valve has established itself as a trusted solution for controlling fluids under extreme pressure and temperature conditions. Unlike standard valves that rely solely on bolted connections for sealing, the pressure seal bonnet design incorporates a self-energizing mechanism that strengthens the seal as internal pressure rises. This engineering innovation makes it indispensable in demanding environments where safety, reliability, and durability are non-negotiable.
This article explores in detail what a pressure seal bonnet globe valve is, how it works, where it is applied, its advantages, and the key considerations for installation and maintenance.
A globe valve is primarily designed for regulating fluid flow by adjusting the position of a movable disk against a stationary seat. When combined with a pressure seal bonnet, the valve gains the ability to perform under the harshest conditions.
The term “bonnet” refers to the component that covers the valve body, enclosing internal parts like the stem, disk, and seat. In conventional bolted bonnet valves, the joint between the body and bonnet is sealed with gaskets that may require significant maintenance over time. However, in a pressure seal design, the sealing capability actually improves as the internal pressure increases.
This is achieved through a metallic gasket system positioned between the bonnet and valve body. As fluid pressure builds inside the valve, it forces the gasket into tighter compression, creating a seal that strengthens automatically. This makes the valve virtually leak-proof, even in the most challenging environments, such as superheated steam lines in power plants or high-pressure crude pipelines in the oil sector.
The genius of the pressure seal bonnet valve lies in its self-energizing mechanism. At low pressures, the gasket is compressed during assembly to form a tight initial seal. When the system comes under pressure, the force is transferred to the gasket, pressing it more firmly into the sealing surfaces.
Key Technical Features:
Metallic Gasket – Typically made from stainless steel or alloy materials, designed to withstand high temperatures and prevent creep or deformation.
Bonnet Retention – The bonnet is often wedged into a taper inside the body, which allows pressure to push it tighter against the body seat.
Self-Energizing Effect – Internal pressure enhances the sealing force, unlike bolted bonnet designs where over-tightening can damage gaskets.
This design reduces maintenance needs, lowers the risk of leakage, and ensures long-term safety.
Because of their resilience, pressure seal bonnet globe valves are found in some of the world’s most demanding industries.
Used extensively in thermal and nuclear power plants.
Controls the flow of superheated steam, feedwater, and cooling fluids at extremely high pressures.
Ensures reliable operation in environments where a single leak could compromise efficiency or safety.
Installed in high-pressure crude oil and natural gas pipelines.
Essential for controlling production fluids at wellheads and refining plants.
Prevents leakage in subsea and offshore drilling applications, where maintenance is challenging.
Manages aggressive fluids and corrosive chemicals at high pressures.
Protects downstream equipment by maintaining accurate flow control.
Withstands temperature fluctuations and chemical attack thanks to alloy construction.
Applied in boiler feedwater systems, district heating networks, and high-pressure condensate return lines.
Offers precise flow regulation where continuous, safe operation is required.
The popularity of these valves lies in their performance advantages over conventional bolted bonnet valves.
The seal becomes tighter as internal pressure increases, ensuring leak-free operation. This is especially valuable in thermal power plants where steam pressures can exceed 250 bar.
The self-energizing design minimizes the need for frequent adjustments or gasket replacement. Operators benefit from reduced downtime and lower life-cycle costs.
Compared to bolted bonnet valves designed for similar pressures, pressure seal designs often weigh less, which reduces installation costs and space requirements.
Made from robust alloys like ASTM A217 WC9 (chromium-molybdenum steel), designed to resist creep, thermal stress, and corrosion.
Long service life ensures safety in critical operations.
Modern designs include:
Self-aligning gland bushings for uniform packing pressure.
Eye-bolt type gland studs with optional Belleville spring systems for live loading.
Optimized spherical gland shapes to improve alignment and sealing consistency.
Proper installation is essential to ensure the efficiency, safety, and long-term reliability of pressure seal bonnet globe valves. These valves are designed for demanding, high-pressure environments, and even minor installation errors can lead to leakage, reduced performance, or costly downtime.
The first step is surface preparation. Both the valve body and bonnet contact areas must be thoroughly cleaned and inspected, ensuring they are free from dirt, scale, or debris that could compromise the sealing surfaces. Next, careful alignment of the bonnet with the valve body is required to prevent damage to the gasket and ensure a tight, uniform seal.
When tightening the bonnet bolts, it is critical to follow the recommended bolting sequence. Bolts should be tightened gradually in a star or cross pattern and torqued according to the manufacturer’s specifications. Over-tightening must be avoided, as it can deform or damage the metallic gasket.
Finally, once installation is complete, pressure testing should be carried out. Hydrostatic and functional tests confirm the valve’s integrity, verifying that the sealing system performs as intended. By following these guidelines, operators can maximize valve lifespan and maintain safe, leak-free operation in high-pressure applications.
Although pressure seal bonnet globe valves are designed for durability, preventive maintenance is essential to maximize performance.
Perform regular inspections for signs of wear, erosion, or leakage.
Monitor stem movement and packing condition.
Replace metallic gaskets if deformation or surface damage is detected.
Renew packing materials periodically to maintain stem sealing.
Use high-temperature lubricants for stems and bearings.
Avoid over-lubrication, which can attract contaminants.
Maintain detailed maintenance logs to track valve performance and servicing intervals.
As industries push for higher efficiency and safety, demand for advanced valve technologies is rising. Pressure seal bonnet globe valves continue to evolve in response to these trends.
Material Innovation: Development of new alloys and coatings for improved corrosion and wear resistance.
Digital Monitoring: Integration of sensors and IoT systems to track valve condition and predict failures.
Energy Efficiency: Optimized flow paths reduce pressure drop, helping plants achieve energy savings.
Nuclear Applications: Growing nuclear power investments are increasing demand for ultra-reliable pressure seal valves.
In a 660 MW coal-fired power plant, pressure seal bonnet globe valves are installed in the main steam lines. Operating at pressures above 250 bar and temperatures around 600°C, these valves ensure precise control of steam to turbines. Their self-sealing capability significantly reduces the risk of steam leakage, which would otherwise lead to efficiency loss, safety hazards, and unplanned shutdowns.
By using pressure seal bonnet globe valves, the plant benefits from lower maintenance costs, longer valve lifespan, and enhanced operational safety.
Despite their many advantages, there are some considerations to keep in mind:
Complex Installation: Requires skilled technicians due to the precision needed in gasket seating.
Higher Initial Cost: More expensive upfront compared to bolted bonnet valves, though offset by lower lifecycle costs.
Specialized Spare Parts: Replacement gaskets and components may require sourcing from original manufacturers.
The pressure seal bonnet globe valve represents a fusion of engineering innovation and practical design, tailored for the most demanding industries. With its self-energizing sealing mechanism, exceptional durability, and adaptability to high-pressure, high-temperature environments, it has become a cornerstone of reliable fluid control in power generation, oil and gas, and chemical processing sectors.
By combining robust construction with ease of maintenance, these valves not only ensure safety but also deliver cost efficiency over their operational life. As industries continue to evolve, the role of pressure seal bonnet globe valves will only grow, especially as digital monitoring and advanced materials expand their capabilities.
For operators and engineers, understanding their working principle, applications, and maintenance practices is crucial to unlocking their full potential in critical systems.
