In the complex world of industrial engineering, valves are the silent guardians of flow control, ensuring safety, efficiency, and precision in critical processes. Among these, ball valves have long been recognized for their versatility, durability, and ability to provide tight shutoff with simple quarter-turn operation.
Within the family of ball valves, side entry ball valves occupy a distinctive niche. These valves, characterized by their side-loaded design, are widely deployed in oil and gas, petrochemical, power generation, marine, and water treatment industries. While top entry ball valves offer ease of inline maintenance, side entry ball valves are prized for their rugged construction, mechanical strength, and suitability for high-pressure, large-diameter applications.
This article explores side entry ball valves in depth—covering their history, design principles, working mechanism, variations, advantages, limitations, applications, manufacturing standards, maintenance practices, and future outlook. For engineers and industry professionals, understanding the role of these valves is key to building efficient and reliable fluid control systems.
The concept of ball valves dates back to the mid-20th century, when industries sought simpler yet more effective shutoff devices than traditional gate and globe valves. The early ball valves were primarily floating ball designs, suitable for low to medium pressure.
As industrial demands grew, engineers developed trunnion-mounted designs and side entry assemblies to handle higher pressures and larger bore sizes. The side entry design emerged as a logical step: by splitting the valve body into two or three sections, manufacturers could insert a larger ball and seats while maintaining structural integrity.
By the 1970s, side entry ball valves had become the standard for oil and gas pipeline applications, where reliability and sealing performance were non-negotiable. Today, they remain one of the most common ball valve configurations in heavy-duty service.
A side entry ball valve is a type of quarter-turn valve in which the ball is inserted into the valve body from the side, rather than from the top, as in top entry valves, or from the end, as in end entry valves. This distinctive design allows for robust construction, making it ideal for high-pressure and large-diameter pipeline applications.

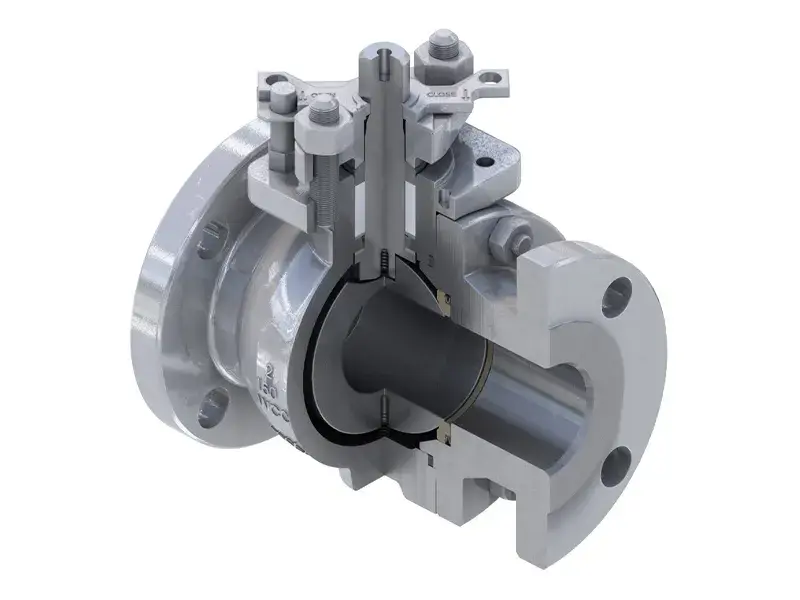

Inside the valve, a hollow ball with a central bore rotates to control fluid flow. When the bore aligns with the pipeline, fluid passes through freely; when rotated 90 degrees, the ball blocks flow completely. A stem connects the ball to a manual handle or actuator, enabling smooth and precise quarter-turn operation.
To maintain leak-free performance, seats and seals are installed around the ball, ensuring tight shutoff even under high pressure or temperature. Side entry ball valves are typically manufactured as two-piece or three-piece assemblies, with the body sections bolted together. This construction not only enhances durability but also allows the production of large valves capable of handling demanding industrial conditions.
Overall, side entry ball valves are valued for their strength, reliability, and suitability for critical flow control applications.
Several key engineering features define side entry ball valves:
The ball is inserted from the side and enclosed between valve body sections.
Requires disassembly for internal maintenance but ensures excellent pressure containment.
Typically forged or cast in carbon steel, stainless steel, duplex alloys, or exotic materials for corrosion resistance.
Designed to withstand extreme mechanical loads and thermal cycling.
Floating designs allow the ball to shift slightly downstream under pressure.
Trunnion-mounted balls are supported at both ends, reducing torque and seat wear in large, high-pressure valves.
Soft seats (PTFE, RPTFE, nylon) for low leakage and corrosion resistance.
Metal-seated designs for high temperature and abrasive services.
Two-piece valves: Simpler, lighter, and cost-effective, but require removal from pipeline for maintenance.
Three-piece valves: Allow easier servicing by removing only the central section while leaving end connections intact.
Manufactured for ANSI/ASME Class 150 through 2500, and API 6D pipeline standards.
Available in sizes from 1 inch up to 60 inches or larger.
Fire-safe seats prevent leakage during fire exposure.
Anti-static devices ensure safety in hydrocarbon services by preventing sparks.
The working principle is simple yet effective:
In the open position, the bore of the ball aligns with the pipeline, allowing full flow with minimal pressure drop.
In the closed position, a 90-degree turn moves the solid side of the ball against the seats, blocking flow completely.
In multi-port designs, the ball can divert or mix flows across multiple outlets.
The side entry construction does not change the basic function but enhances the strength, sealing, and reliability of the valve. The seats are compressed against the ball to maintain a leak-free seal, even in high-pressure systems.
|
Feature |
Side Entry |
Top Entry |
End Entry |
|
Assembly |
Ball inserted from side, body bolted in 2–3 pieces |
Ball inserted from top, single-body casting |
Ball inserted from one end, simplest design |
|
Maintenance |
Requires body disassembly |
Easy inline access |
Must remove valve from pipeline |
|
Strength |
Very robust |
Moderate |
Less robust |
|
Typical Sizes |
Medium to very large bores |
Medium to large bores |
Small to medium bores |
|
Cost |
Medium to high |
High |
Low |
|
Best Application |
Oil, gas, power, water pipelines |
High-pressure refining, nuclear |
General-purpose, low-pressure |
This comparison highlights why side entry valves dominate pipeline and process industries, where strength and durability matter most.
Cost-effective and widely used in less critical applications.
Requires complete removal for servicing.
Easier to maintain—central body can be removed while leaving end connections intact.
Favored in process industries for frequent maintenance.
Suited for smaller sizes and lower pressures.
Provides tight shutoff through ball-seat compression.
Standard for large-diameter, high-pressure systems.
Reduces operating torque and seat wear.

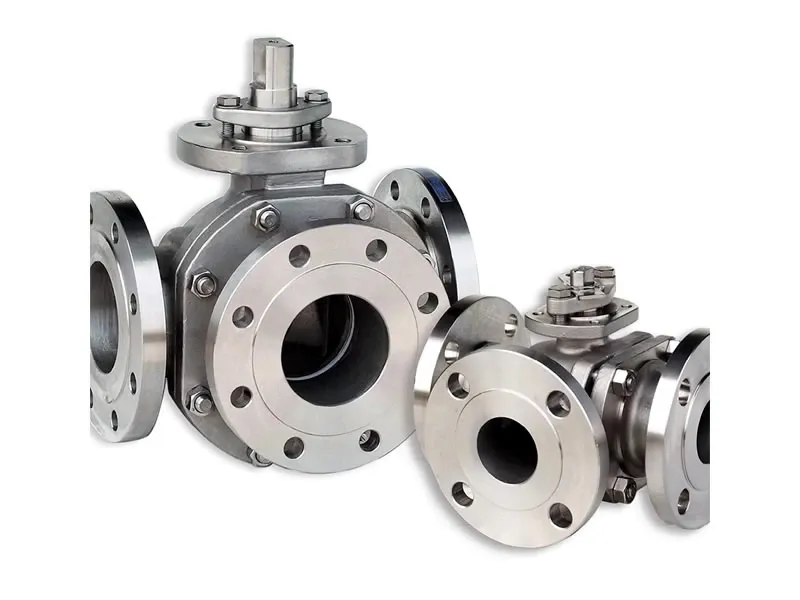

Three-way or four-way side entry valves for mixing or diverting flows.
Used in chemical and process industries.
High Strength: Withstands extreme pressure and temperature.
Reliable Sealing: Zero-leakage design for hazardous fluids.
Versatility: Handles liquids, gases, slurries, and corrosive chemicals.
Large Size Range: Available for massive pipelines.
Customization: Fire-safe, cryogenic, and anti-static options.
Long Service Life: Engineered for decades of operation with minimal issues.
Complex Servicing: Disassembly required for internal repairs.
Heavier Construction: Larger size and weight complicate installation.
Higher Cost: More expensive than end entry valves, particularly in very large sizes.
Side entry ball valves are indispensable in:
Pipeline isolation (onshore and offshore).
LNG facilities and storage terminals.
Subsea installations with trunnion-mounted designs.
Handling aggressive fluids such as acids, solvents, and hydrocarbons.
Multi-port designs for process diversion and mixing.
Steam and cooling water control.
Fuel gas handling in combined-cycle plants.
Municipal water distribution.
Large-scale desalination projects.
Ballast systems.
Crude oil transport.
Slurry handling in ore processing.
High-abrasion services requiring metal-seated valves.
To ensure global compatibility and safety, side entry ball valves comply with:
API 6D (pipeline valves)
API 608 (general ball valves)
ASME B16.34 (valve design, pressure-temperature ratings)
ISO 14313 (pipeline transportation systems)
NACE MR0175/ISO 15156 (sour service resistance)
Firesafe Standards: API 607, ISO 10497
Carbon Steel (ASTM A105, WCB) – standard pipelines
Stainless Steel (316, 304, CF8M) – corrosion resistance
Duplex/Super Duplex – seawater and chlorides
Alloy Steels (WC6, WC9) – high temperature
Nickel Alloys (Inconel, Monel) – extreme chemical resistance
Titanium – offshore, subsea, highly corrosive environments
Even with rugged construction, maintenance is essential:
Routine Inspection of seats, seals, and stem packing.
Lubrication to ensure smooth quarter-turn operation.
Leakage Detection to identify early wear.
Scheduled Overhauls to replace seats and seals after service intervals.
Modern manufacturers are integrating self-lubricating seats and advanced coatings to minimize maintenance requirements.
Given their role in handling hydrocarbons and hazardous chemicals, side entry ball valves are designed with:
Double Block and Bleed Capability: Ensures isolation during maintenance.
Emergency Sealant Injection: Allows sealing even if seat damage occurs.
Anti-Blowout Stem Design: Prevents stem ejection under pressure.
Low-Emission Packing: Reduces fugitive emissions, meeting ISO 15848.
The future of side entry ball valves is shaped by several trends:
Automation: Growing demand for electric, pneumatic, and hydraulic actuators.
Digitalization: Smart valves with sensors for real-time monitoring and predictive maintenance.
Hydrogen Economy: Valves designed for hydrogen pipelines and storage.
Material Science: Development of lightweight alloys and composites for reduced weight.
Sustainability: Focus on reducing fugitive emissions and improving energy efficiency.
As industries push toward renewable energy, carbon capture, and green hydrogen, side entry ball valves will remain a cornerstone of critical infrastructure, adapted with new materials and intelligent features.
Side entry ball valves may not be the easiest to maintain, but they remain among the most reliable and robust valve solutions for heavy-duty applications. Their ability to withstand high pressure, high temperature, and aggressive media makes them essential in oil and gas pipelines, chemical plants, power stations, and water treatment facilities worldwide.
With advances in design, materials, and smart monitoring, side entry ball valves will continue to evolve—ensuring that they remain vital in modern industry for decades to come.
