In modern industrial processing, achieving reliable flow control while handling corrosive, abrasive, or high-purity media has become more critical than ever. Industries such as chemical processing, pharmaceuticals, chlor-alkali production, semiconductor manufacturing, wastewater treatment, and mining require valves that can operate under harsh conditions without degrading or compromising safety. Among the many options available, lined ball valves have emerged as one of the most dependable solutions for managing aggressive and high-purity fluids.
A lined ball valve combines the proven sealing performance of a ball valve with the corrosion-resistant benefits of a specialized liner. These liners—typically made of fluoropolymers such as PTFE, PFA, FEP, or PVDF—protect the internal surfaces of the valve from chemical attack, erosion, and contamination. Their durability and chemically inert characteristics make lined ball valves essential for processes where metal valves would fail prematurely or react with the media.
As industries continuously strive for higher safety standards, improved efficiency, and longer operational life cycles, understanding the design, materials, and selection criteria of lined ball valves is crucial. This comprehensive news article explores what lined ball valves are, how they work, what materials they use, where they are applied, and how companies can select the best model for their operational requirements.

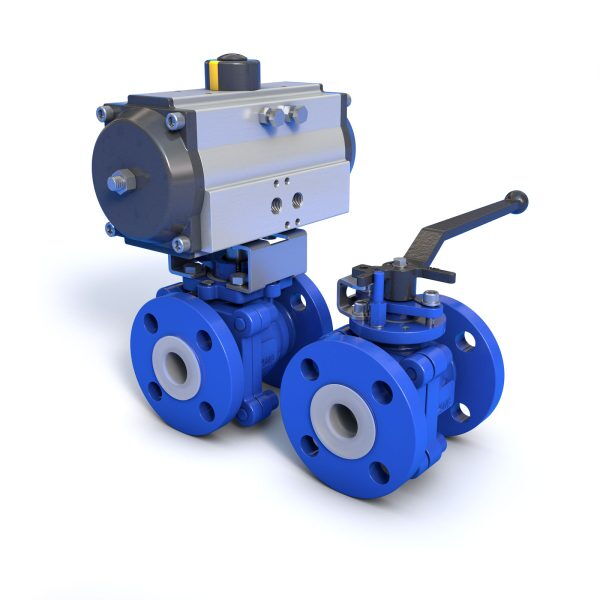

A lined ball valve is a quarter-turn valve featuring a spherical ball with a hollow center (the bore). When the ball is rotated 90 degrees by the handle or actuator, the bore aligns with the pipeline and allows fluid to pass through. When rotated back, the bore becomes perpendicular to the pipeline, effectively blocking the flow.
What differentiates lined ball valves from traditional ball valves is the protective lining that coats interior surfaces—such as the body, ball, and sometimes the stem. This lining acts as a chemical-resistant barrier, preventing corrosive fluids from coming into contact with metal components.
Lined ball valves are specially designed to provide reliable performance in demanding industrial environments where corrosive, abrasive, or high-purity media are handled. One of their most significant advantages is high corrosion resistance, achieved through linings made from advanced materials such as PTFE, PFA, FEP, PVDF, or ETFE. These fluoropolymer coatings protect the valve’s metal body from chemical attack, extending its operational life and ensuring safe handling of aggressive fluids.
The smooth interior surface of lined ball valves minimizes buildup of deposits and reduces friction, allowing fluids to flow consistently and efficiently. This feature is particularly valuable in applications requiring sanitary conditions or contamination-free operation, such as pharmaceutical, chemical, or semiconductor processes.
Compared with unlined metal valves, lined ball valves offer an extended service life and reduced maintenance requirements, even under harsh operating conditions. Their inherent chemical resistance and low-friction surfaces also contribute to excellent sealing performance, preventing leaks and maintaining system integrity over long periods.
Lined ball valves are ideal for installations where conventional steel or alloy valves would quickly deteriorate, fail, or compromise the purity of the media. Their combination of durability, efficiency, and reliability makes them an essential component for chemical processing, water treatment, industrial manufacturing, and other demanding applications.
The performance of a lined ball valve largely depends on the lining material. Each fluoropolymer offers distinct advantages depending on temperature, pressure, chemical compatibility, and flow characteristics.
PTFE is the most widely used lining material due to its exceptional chemical inertness and broad temperature resistance—from approximately –200°C to 180°C. It is ideal for handling:
Strong acids (sulfuric acid, nitric acid, hydrochloric acid)
Caustic solutions (sodium hydroxide, potassium hydroxide)
Organic solvents
High-purity or ultra-clean fluids
PTFE’s non-stick surface minimizes residue buildup, making it popular in industries requiring contamination-free operation.
PFA offers similar chemical resistance to PTFE but with:
Better mechanical strength
Higher stress-crack resistance
Superior performance at elevated temperatures
Its purity and durability make PFA-lined ball valves common in:
Semiconductor manufacturing
Pharmaceutical production
Chlor-alkali applications
Ultra-pure water systems
FEP provides:
Good chemical resistance
Flexibility and impact resistance
Excellent transparency
It is used in applications requiring corrosion resistance with low operating pressures and temperatures.
PVDF is recognized for:
High mechanical strength
UV and weather resistance
Chemical compatibility with acids, alcohols, and organic compounds
It is a popular choice for:
Water treatment
Food and beverage processing
Pharmaceutical systems
ETFE is valued for:
Exceptional toughness
Outstanding weathering resistance
Durability under mechanical stress
It is used in architectural facades, but in valves, ETFE lining is often selected for its abrasion resistance and superior structural integrity.
The function of a lined ball valve remains similar to standard ball valves, but with added benefits for corrosive service. The ball rotates inside the lined cavity, creating a strong seal due to the fluoropolymer lining's naturally low friction and high chemical resistance.
Operational Advantages
Low torque requirements compared to metal ball valves
Reduced risk of seizing or jamming, even with sticky or aggressive fluids
Longer lifespan under continuous chemical exposure
Smooth flow path, minimizing pressure drop and turbulence
This simplicity and reliability make lined ball valves highly valued in automated systems as well as manually operated installations.
Because fluoropolymers can withstand extreme chemical reactions, lined ball valves are indispensable across a wide range of industries.
Used extensively for handling:
Chlorine
Sulfuric acid
Hydrofluoric acid
Nitric acid
Solvents and polymers
Their resistance to virtually all industrial chemicals makes them a standard choice in chemical plants.
Lined ball valves prevent corrosion in:
Acidic wastewater lines
Alkaline injection systems
Corrosive byproduct flows
PFA and PTFE-lined valves are preferred for:
High-purity chemicals
Cleanroom production lines
Solvent transfer
They help maintain contamination control and meet stringent regulatory standards.
Ultra-high purity materials are essential here. PFA-lined ball valves support:
DI (deionized) water
Etching chemicals
High-purity acids
Corrosive and abrasive slurries require rugged valves. PVDF and ETFE-lined valves withstand:
Chemical leaching solutions
Ore processing chemicals
Used in:
Disinfection chemical dosing
Waste acid neutralization
pH control systems
The most significant benefit of lined ball valves is their unmatched compatibility with corrosive media. The lining prevents the fluid from reacting with the valve body, eliminating corrosion failures.
Fluoropolymers resist scaling, corrosion, and chemical attack, allowing the valve to operate for extended periods without servicing.
With various lining materials and valve designs available, lined ball valves can be customized for virtually any corrosive service.
The smooth, non-stick lining reduces friction and turbulence, enabling efficient flow even with viscous fluids.
Lined valves perform consistently under:
Extreme temperatures
High concentrations of chemicals
Continuous duty cycles
This reliability enhances operational safety and reduces downtime.
Selecting the proper lined ball valve is crucial to maintain system reliability, efficiency, and safety. Several factors must be evaluated before making a decision.
Knowing the chemical composition of the fluid helps determine:
Whether PTFE, PFA, FEP, PVDF, or ETFE is necessary
Resistance to corrosive elements
The need for high-purity materials
Each lining material has a specific temperature and pressure range. Exceeding these limits can cause:
Liner deformation
Cracking
Loss of sealing integrity
Different chemicals react differently to fluoropolymers. Companies must review:
Chemical compatibility charts
Concentration levels
Expected exposure duration
The bore size and flow coefficient (Cv) influence:
Flow rate
Pressure drops
Overall system efficiency
Proper sizing ensures optimal performance and prevents premature wear.
Quality lined ball valves should meet relevant standards such as:
ISO
ANSI
DIN
API
CE
Compliance ensures safety and reliability.
Working with experienced and certified manufacturers helps guarantee:
High-quality lining materials
Proper bonding techniques
Consistent manufacturing processes
Long-term product support
Lined ball valves play a pivotal role in modern industrial systems requiring reliable, corrosion-resistant flow control. Their ability to handle aggressive chemicals, maintain purity, and withstand harsh environments makes them indispensable in industries such as chemical processing, pharmaceuticals, petrochemical refining, water treatment, semiconductor manufacturing, and more.
By understanding the properties of different lining materials—PTFE, PFA, FEP, PVDF, and ETFE—industrial users can select the right valve for their specific operational needs. Evaluating factors like media characteristics, temperature, pressure, flow requirements, and industry standards ensures optimal performance and safety.
As industrial processes become more complex and demands for safety and efficiency increase, lined ball valves will continue to be one of the most essential components in corrosion-resistant flow control systems. Their long-term durability, low maintenance requirements, and superior chemical resistance make them a smart and reliable choice for any facility handling aggressive media.
