In modern industrial process systems, precise control over fluid flow, pressure, and temperature is essential for maintaining efficiency, safety, and product quality. Among the range of control valves available, the single-seated control valve stands out as a versatile and reliable solution for applications that demand high performance and precise regulation.

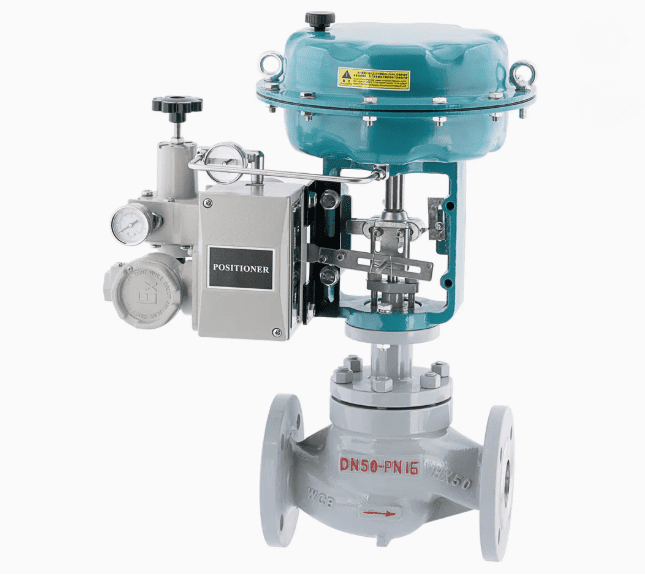

A single-seated control valve is a top-guided, straight-through valve with an S-shaped streamlined body channel that facilitates smooth fluid flow while minimizing turbulence. Its simple yet robust construction ensures excellent sealing performance, high flow capacity, and stable operational behavior across a wide range of process conditions. One of its notable design advantages is the top spiral system, which significantly reduces vibration when the valve operates at small openings, thereby prolonging the valve’s service life.
Thanks to its well-defined flow characteristic curve, the single-seated control valve excels in applications requiring high precision, high flow rates, and minimal pressure drop. Whether configured with a hard metal seal or a soft elastomeric seal, advanced design and precise manufacturing techniques allow these valves to achieve virtually zero leakage, ensuring both process reliability and operational safety.

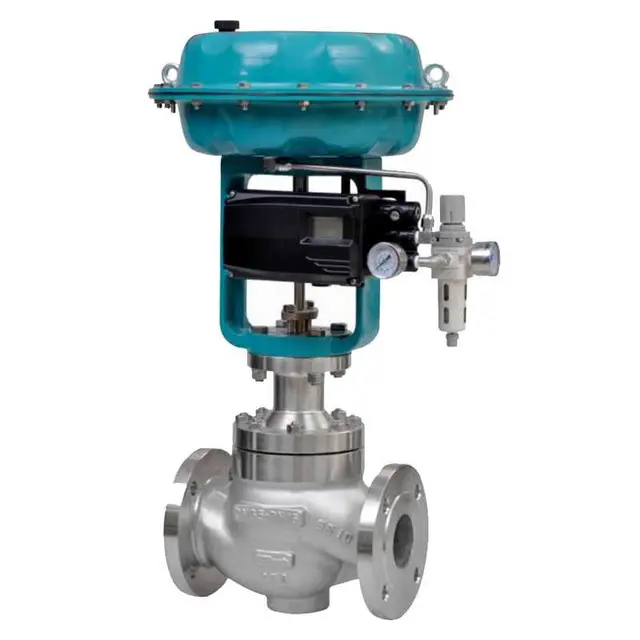

Typically, single-seated control valves are equipped with actuators—such as pneumatic diaphragm actuators, electric actuators, or manual actuators—depending on the application requirements. These valves can also be integrated with auxiliary control components like positioners, solenoid valves, and limit switches to serve as key elements in process automation. They are commonly employed to regulate parameters including pressure, temperature, and liquid levels across industrial processes.
A single-seated control valve, also known as a single-port valve, features a single plug and a corresponding seat, which together regulate the flow of fluid through the valve. The plug is connected to a stem, which is actuated to move the plug vertically (or sometimes rotationally) inside the valve body. By adjusting the plug position, the valve controls the rate of fluid passing through, from fully closed to fully open.
The single plug-and-seat design ensures a tight shut-off, making these valves ideal for applications where leakage must be minimized. They are widely used in industries where precise control over flow rates is critical, such as oil and gas, chemical processing, power generation, water treatment, and HVAC systems.
The operation of a single-seated control valve is straightforward but highly effective. Fluid enters the valve body and approaches the valve seat, where the plug controls its passage. The actuator moves the plug in response to a control signal, modulating the flow rate:
When the plug is fully lowered onto the seat, the flow is completely blocked, achieving a tight shut-off.
When the plug is lifted, the fluid is allowed to pass through the valve in a controlled manner.
One characteristic of single-seated valves is that the fluid exerts upward pressure on the stem, particularly at high pressures or with viscous fluids. This stem force must be counteracted by the actuator, which is why these valves often require larger or more powerful actuators in high-pressure systems.
Understanding the main components of a single-seated control valve helps clarify why it performs so reliably in demanding applications.
The valve body is typically globular or spherical, earning the valve its classification as a globe valve. The body contains an inlet and an outlet port and provides the passage through which fluid flows. Its internal channel is often streamlined in an S-shaped pattern to minimize turbulence and reduce pressure loss, ensuring smooth and efficient flow. The robust construction of the body also provides the mechanical strength required to withstand high pressures and harsh operating conditions.
The plug (or disc) is the movable element responsible for controlling flow. Connected to the valve stem, the plug moves up and down (or rotates in some designs) to vary the flow area between itself and the valve seat. Plugs are designed for tight sealing against the seat to ensure zero leakage when the valve is closed, and they are carefully engineered to provide stable flow modulation when partially open. Depending on the application, plugs can feature various shapes, including linear, parabolic, or equal-percentage profiles, to achieve the desired flow characteristics.
The seat is the stationary part of the valve against which the plug seals. Seat materials are selected based on durability, wear resistance, and sealing capability. Common seat materials include metals, such as stainless steel, for high-temperature and high-pressure applications, or soft elastomers for applications requiring extremely tight shut-off. The seat ensures both effective sealing in closed conditions and controlled flow when the valve is partially open, playing a critical role in the valve’s overall performance.
The stem connects the plug to the actuator and transmits motion to the plug for flow control. High-quality stems are made of materials resistant to corrosion, erosion, and mechanical wear, ensuring consistent performance over long operating cycles. Precision machining of the stem reduces friction and allows smooth, responsive control.
The actuator provides the force needed to move the plug or disc. Depending on process requirements, actuators may be:
Pneumatic, using air pressure to position the plug with high speed and precision.
Electric, providing precise control and automation integration.
Hydraulic, suitable for high-pressure or large-diameter valves.
Manual, used in simpler or low-frequency applications.
Actuators may be paired with positioners, solenoid valves, or other accessories to enhance control precision and responsiveness.
The flow characteristic curve of a single-seated control valve describes the relationship between plug position and flow rate. These curves are crucial for achieving precise process control. Typical flow characteristics include:
Linear, where the flow rate changes proportionally with plug movement.
Equal percentage, where each incremental movement of the plug produces a consistent percentage change in flow.
Quick opening, where a small initial movement allows a rapid increase in flow, suitable for on-off applications.
By selecting the appropriate flow characteristic, engineers can ensure that the valve meets the control requirements of the specific process, maintaining stable and efficient operation.
Single-seated control valves offer several advantages that make them popular across a wide range of industries:
The single plug-and-seat design ensures minimal leakage, making these valves ideal for critical applications.
The streamlined body and precision plug design allow high flow rates with low pressure drop.
Pneumatic, electric, hydraulic, and manual actuators can be used to suit diverse operational needs.
The top-guided design and spiral stem system reduce vibration and enhance operational stability, even at low openings.
Available with soft or hard seals, the valve can be tailored to handle a range of fluids, temperatures, and pressures.
Single-seated valves can easily be fitted with positioners, limit switches, and solenoid valves for advanced process control.
The versatility of single-seated control valves makes them suitable for various industrial sectors:
Oil and Gas: For controlling flow in pipelines, refineries, and petrochemical processes, where precise regulation and tight shut-off are crucial.
Chemical Industry: Used to manage aggressive, corrosive, or high-temperature chemicals with accuracy.
Power Generation: In steam, water, and fuel systems, ensuring precise control of energy flow and temperature.
Water Treatment: Regulating water flow, pressure, and chemical dosing to maintain system efficiency.
HVAC Systems: Controlling water and air flow in heating and cooling systems for optimal temperature regulation.
Food and Beverage Industry: Maintaining process consistency and hygiene by using valves with suitable seal materials.
These valves are particularly valued in processes where flow modulation, high reliability, and leak-free performance are critical.
When selecting a single-seated control valve, several design factors should be evaluated:
Material Selection: The valve body, seat, and plug materials must be compatible with the process fluid and operating conditions to prevent corrosion, erosion, or chemical attack.
Valve Sizing: Proper sizing is essential to achieve the desired flow rate, minimize pressure loss, and avoid cavitation or noise issues.
Actuator Sizing: The actuator must provide sufficient force to overcome stem friction and fluid pressure, especially in high-pressure or high-viscosity applications.
Flow Characteristic: Matching the valve’s flow characteristic to the process requirement ensures accurate and stable control.
Seal Type: Hard or soft seals should be chosen based on the need for tight shut-off, temperature, and pressure conditions.
Advanced computational tools and precise manufacturing processes now allow engineers to design valves that meet stringent performance criteria while ensuring longevity and reliability.
Proper maintenance is key to extending the operational life of single-seated control valves:
Regular Inspection: Check for wear, corrosion, and leakage.
Lubrication: Apply appropriate lubricants to reduce stem friction and prevent seizure.
Seal Replacement: Inspect and replace seals as needed to maintain tight shut-off.
Actuator Checks: Ensure actuators function properly and respond accurately to control signals.
Cleaning: For valves handling viscous or contaminated fluids, periodic cleaning prevents buildup that can affect performance.
Following these practices ensures consistent performance, reduces downtime, and maximizes the valve’s service life.
Single-seated control valves are indispensable components in modern industrial automation. Their combination of precise flow control, tight shut-off, versatile actuation options, and durable design makes them ideal for applications requiring high reliability and accuracy. By selecting the right materials, sizing the valve correctly, and integrating it with appropriate actuators and control components, industries can achieve superior performance and operational efficiency.
From oil and gas to chemical processing, power generation, water treatment, and HVAC systems, single-seated control valves provide the precise control, stability, and leak-free operation necessary for critical process management. Proper maintenance and careful design ensure that these valves remain reliable workhorses in demanding industrial environments.
For engineers and process designers seeking an efficient, precise, and durable solution, the single-seated control valve remains a trusted choice, combining the best features of flow control, safety, and longevity in a single, compact package.
