How to Choose the Right Y Type Strainer for Industrial Applications

In modern industrial systems, maintaining fluid purity is essential for ensuring reliable operation, reducing maintenance costs, and extending equipment life. Whether handling water, steam, oil, gas, chemicals, or compressed air, contaminants such as rust, scale, welding slag, dirt, and other debris can significantly affect the performance of critical equipment. One of the most effective and economical solutions for removing these unwanted particles is the Y Type Strainer.

Y type strainers are widely used across industries including oil and gas, petrochemical processing, power generation, water treatment, HVAC systems, marine engineering, pharmaceutical manufacturing, and food processing. Their compact design, excellent filtration capability, and easy maintenance make them a preferred choice for protecting downstream equipment.

Selecting the correct Y strainer is not simply a matter of choosing a size. Engineers must consider factors such as fluid characteristics, operating pressure, temperature, filtration requirements, material compatibility, maintenance accessibility, and industry standards. This article explores the fundamentals of Y type strainers, available designs, selection criteria, maintenance practices, and future trends to help operators choose the most suitable solution for their applications.

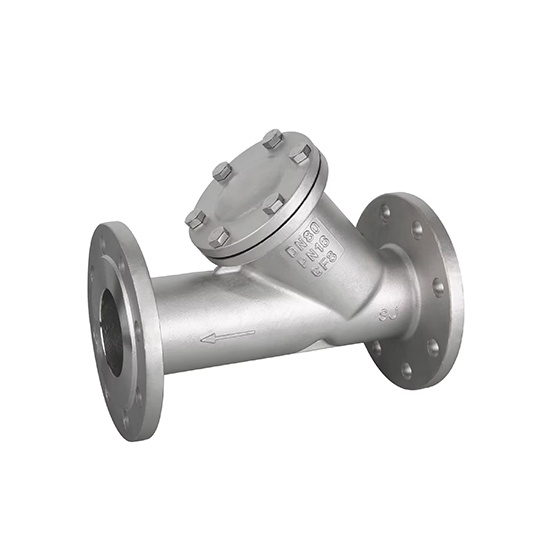

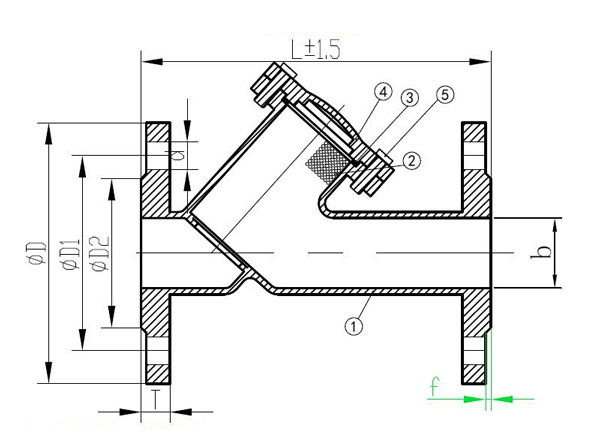

A Y type strainer is a mechanical filtration device installed in pipelines to remove solid particles from flowing liquids, gases, or steam. Its distinctive Y-shaped body houses a removable screen or mesh element that captures debris while allowing clean media to pass through.

The angled branch of the strainer contains the filtration element. As fluid flows through the strainer, contaminants become trapped within the screen, preventing them from reaching sensitive downstream equipment such as:

• Pumps
• Control valves
• Pressure regulators
• Flow meters
• Heat exchangers
• Compressors
• Turbines
• Instrumentation devices

Without proper filtration, these components may experience excessive wear, clogging, erosion, or complete failure.

The simplicity of the Y strainer design makes it one of the most cost-effective filtration solutions available for industrial piping systems.

Contaminants are introduced into pipeline systems from numerous sources, including:

• Pipe scale and rust
• Welding slag
• Construction debris
• Corrosion products
• Sand and sediment
• Process residues
• Foreign particles from storage tanks

Even small particles can cause significant operational problems.

Potential consequences include:

Equipment Damage

Hard particles can erode pump impellers, valve seats, and turbine blades, resulting in expensive repairs.

Reduced Efficiency

Deposits can restrict flow and reduce heat transfer efficiency in heat exchangers and boilers.

Instrument Failure

Sensitive measuring instruments can become clogged or damaged by contaminants.

Product Quality Issues

In pharmaceutical, food, and chemical industries, contamination can compromise product purity.

Increased Downtime

Unexpected shutdowns for cleaning and repairs can significantly increase operational costs.

Installing a properly selected Y type strainer minimizes these risks and improves overall system reliability.

Industrial applications require different filtration solutions. Manufacturers offer several Y strainer variations designed for specific operating conditions.

Cast Y strainers are among the most common designs used in industrial facilities.

They are manufactured from materials such as:

• Cast iron
• Ductile iron
• Carbon steel
• Stainless steel
• Alloy steel
• Bronze

These strainers provide reliable filtration for general service applications involving water, steam, oil, and gas.

Advantages include:

• Cost-effectiveness
• High durability
• Easy installation
• Wide availability

Fabricated Y strainers are custom-built from plate and pipe materials rather than castings.

They are often selected for:

• Large diameter pipelines
• High-pressure services
• Specialized industrial processes
• Custom connection requirements

Benefits include:

• Flexible dimensions
• Enhanced strength
• Special material options
• Custom screen configurations

Fabricated designs are frequently found in refinery and petrochemical applications.

These strainers utilize perforated metal screens with precisely sized holes.

They are ideal for removing larger particles and debris while maintaining low pressure loss.

Common applications include:

• Cooling water systems
• Irrigation systems
• Industrial water treatment
• Pump protection

Perforated screens offer excellent strength and long service life.

Wire mesh screens provide finer filtration than perforated screens.

They are capable of capturing smaller particles and are often used in:

• Instrument protection
• Chemical processing
• Pharmaceutical production
• Fine filtration systems

Various mesh sizes allow operators to achieve specific filtration requirements.

Magnetic strainers incorporate high-strength permanent magnets inside the screen chamber.

These magnets attract and capture ferrous particles such as:

• Iron filings
• Rust particles
• Steel fragments

Industries benefiting from magnetic strainers include:

• Lubrication systems
• Hydraulic systems
• Metal processing
• Power generation

Magnetic filtration provides an additional layer of protection beyond conventional screening.

Self-cleaning strainers are designed for applications with high contaminant loads.

These units feature automatic cleaning mechanisms such as:

• Backwashing systems
• Rotating brushes
• Scraper assemblies

Advantages include:

• Reduced maintenance
• Continuous operation
• Lower labor requirements
• Improved process efficiency

They are widely used in:

• Oil and gas production
• Water treatment facilities
• Power plants
• Mining operations

Selecting the right Y strainer requires careful evaluation of several critical factors.

The nature of the process fluid directly affects strainer selection.

Common media include:

• Water
• Steam
• Natural gas
• Petroleum products
• Chemicals
• Compressed air
• Food-grade fluids

Each fluid presents unique challenges related to corrosion, viscosity, temperature, and contamination levels.

Material compatibility must always be verified before installation.

Pressure rating is one of the most important considerations.

The selected strainer must safely withstand maximum system pressure.

Common pressure classes include:

• Class 150
• Class 300
• Class 600
• Class 900
• Class 1500
• Class 2500

High-pressure applications often require forged steel or alloy steel strainers designed according to ASME and API standards.

Temperature significantly influences material performance.

Applications may range from:

• Cryogenic temperatures below -196°C
• Ambient conditions
• High-temperature steam exceeding 500°C

The strainer body, gasket, and screen materials must maintain structural integrity throughout the operating range.

Determining the required filtration level is essential.

Fine filtration captures smaller particles but may increase pressure drop.

Typical filtration options include:

Engineers should balance filtration efficiency with acceptable pressure loss.

The strainer must accommodate system flow without creating excessive restriction.

Undersized strainers can cause:

• High pressure drop
• Reduced efficiency
• Increased maintenance frequency

Manufacturers provide flow coefficients and pressure-loss charts to assist proper sizing.

Choosing the right construction material ensures long-term reliability.

Common materials include:

Cast Iron

Suitable for low-pressure water services.

Ductile Iron

Provides improved strength and impact resistance.

Carbon Steel

Ideal for oil, gas, and steam applications.

Stainless Steel

Offers superior corrosion resistance.

Duplex Stainless Steel

Excellent for seawater and aggressive environments.

Bronze

Widely used in marine and potable water systems.

The screen is the heart of every Y strainer.

Selecting the appropriate screen involves evaluating:

• Particle size
• Contaminant type
• Flow characteristics
• Cleaning frequency

Common screen materials include:

• Stainless Steel 304
• Stainless Steel 316
• Duplex Stainless Steel
• Monel
• Hastelloy

Proper screen selection maximizes filtration performance while minimizing maintenance requirements.

Even the highest-quality Y strainer can underperform if improperly installed.

Key installation guidelines include:

Correct Flow Direction

Always install the strainer according to the flow arrow marked on the body.

Proper Orientation

For liquid applications, the screen chamber should generally point downward.

For steam and gas service, alternative orientations may be recommended.

Adequate Clearance

Provide sufficient space around the blow-off plug and cover for maintenance access.

Pressure Monitoring

Install pressure gauges upstream and downstream to monitor pressure differential and identify screen blockage.

Drain Connections

Consider adding drain valves for easier cleaning and maintenance.

Compressed air systems often contain contaminants including:

• Rust particles
• Pipe scale
• Moisture residues
• Compressor wear debris

Regular maintenance is essential for reliable performance.

Inspect the strainer periodically for:

• Corrosion
• Leaks
• Mechanical damage
• Excessive pressure drop

Visual inspections help identify potential problems before they become serious failures.

Shut off the compressed air supply and safely relieve system pressure.

Disconnect the strainer carefully while preventing debris from entering the pipeline.

Remove the cap or cover according to manufacturer instructions.

Carefully remove the filtration element.

Use:

• Soft brushes
• Compressed air
• Approved cleaning solvents

Avoid damaging the mesh during cleaning.

Check for:

• Tears
• Deformation
• Corrosion
• Excessive wear

Replace damaged screens immediately.

Install the cleaned or replacement screen and reassemble the strainer.

Gradually repressurize the system and inspect for leaks.

Excessive Pressure Drop

Possible causes:

• Clogged screen
• Undersized strainer
• Excessive contaminant loading

Solutions:

• Clean screen
• Increase maintenance frequency
• Upgrade strainer size
• Leakage

Possible causes:

• Damaged gasket
• Loose cover bolts
• Corroded housing

Solutions:

• Replace gaskets
• Retighten fasteners
• Repair or replace components
• Frequent Clogging

Possible causes:

• High contamination levels
• Incorrect screen selection

Solutions:

• Install larger screen area
• Consider self-cleaning models
• Improve upstream cleaning practices

Oil and Gas Industry

Y strainers protect:

• Control valves
• Compressors
• Pumps
• Flow meters

They are critical for maintaining production reliability.

Power Generation

Power plants use Y strainers in:

• Boiler feedwater systems
• Steam lines
• Cooling circuits
• Turbine protection systems

Reliable filtration improves plant efficiency and equipment lifespan.

Chemical Processing

Chemical facilities require precise filtration to prevent contamination and equipment damage.

Corrosion-resistant materials are often essential.

Water Treatment

Applications include:

• Pump protection
• Membrane pre-filtration
• Distribution systems

Strainers help maintain water quality and system efficiency.

HVAC Systems

Y strainers remove debris from chilled water and heating systems, preventing equipment fouling and improving energy efficiency.

Marine Applications

Ships and offshore platforms utilize Y strainers in:

• Seawater cooling systems
• Ballast systems
• Fuel lines

Corrosion-resistant alloys are commonly selected.

As industrial processes become increasingly automated, Y strainer technology continues to evolve.

Emerging trends include:

Smart Monitoring

Sensors continuously monitor pressure differential and provide predictive maintenance alerts.

Advanced Materials

New alloys and composite materials offer improved corrosion resistance and longer service life.

Automated Cleaning

Enhanced self-cleaning mechanisms reduce manual intervention and maintenance costs.

Digital Integration

Industrial Internet of Things (IIoT) platforms enable real-time monitoring and performance analysis.

Sustainable Design

Manufacturers are developing energy-efficient filtration solutions that reduce waste and improve operational sustainability.

Choosing the right Y Type Strainer is essential for protecting critical industrial equipment, maintaining process efficiency, and reducing operational costs. Factors such as fluid characteristics, operating conditions, filtration requirements, material compatibility, and maintenance accessibility must all be carefully evaluated during the selection process.

From standard cast designs and fabricated units to magnetic and self-cleaning models, modern Y strainers offer solutions for virtually every industrial application. Proper installation, regular inspection, and routine maintenance further ensure long-term reliability and optimal filtration performance.

As industries continue to pursue higher efficiency, automation, and sustainability, Y type strainers will remain a vital component in fluid handling systems worldwide, providing dependable protection against contamination while supporting safe and efficient operations across countless industrial sectors.
