As global industries accelerate toward automation and digitalization, pneumatic actuated ball valves are playing an increasingly important role in modern fluid control systems. From oil and gas to chemical processing, water treatment, HVAC, pharmaceuticals, and advanced manufacturing, these valves continue to gain momentum because of their reliability, fast response, high torque output, and suitability for remote and automated operation.
This news report provides an in-depth review of pneumatic actuated ball valves, including their working structure, design principles, actuator characteristics, material selection, application advantages, and evolving industry trends. With demand growing in both developed and emerging markets, pneumatic ball valves are expected to maintain strong growth in the next decade as part of a broader shift toward intelligent industrial infrastructure.

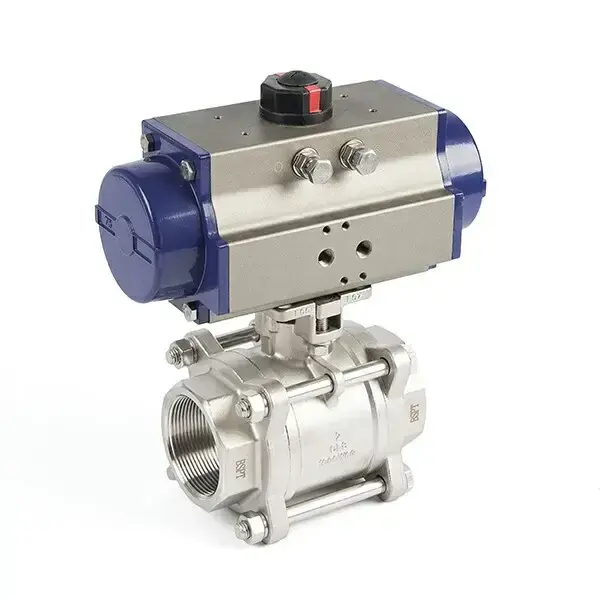

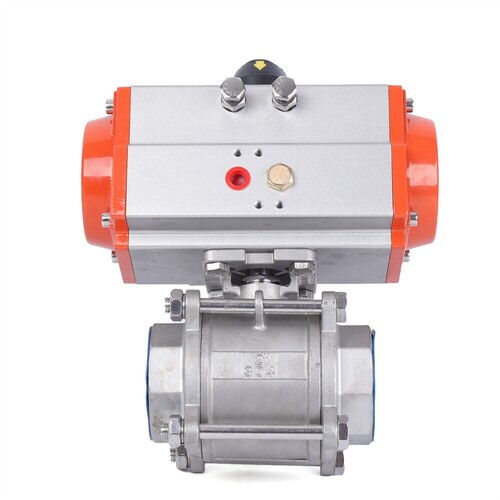

A pneumatic actuated ball valve consists of two core components: the pneumatic actuator and the ball valve assembly. When combined, these devices form a robust, rapid, and cost-effective method of controlling fluid flow in pipelines. Their growing popularity across industries is driven by several key factors:
High reliability due to the simple mechanical structure and low failure rate
Fast response suitable for automated emergency shutoff and safety interlock systems
Lower investment cost compared with electric actuated valves, especially for larger DN sizes
Stable torque output that makes them ideal for frequent operation in harsh environments
Compatibility with ISO 5211 mounting interfaces, enabling easy actuator replacement or upgrades
With industrial safety standards tightening worldwide and automation coverage expanding, pneumatic actuated ball valves have transitioned from an optional accessory to a standard component in many modern plants.
One of the reasons pneumatic ball valves are widely adopted is the standardized mounting interface defined by ISO 5211.
The actuator and the ball valve are usually connected through an ISO 5211 mounting flange—common sizes include F03, F04, F05, F07, F10, and F12. This universal design allows operators to replace actuators or valve bodies without modifying the pipeline or customizing adapters.
Easy interchangeability between different actuator brands
Reduced inventory pressure since fewer customized accessories are required
Lower service and upgrade costs
Faster field maintenance with minimal downtime
Improved safety and reliability because mounting alignment is standardized
The standardization of the drive shaft interface is also critical. Ensuring that the actuator uses the same drive shaft size and flange pattern prevents torque transfer issues that could damage the valve stem or reduce service life.
Pneumatic actuators convert compressed air into a 90° rotary motion to open or close the valve. Based on their working principles, they are classified into double-acting and single-acting (spring-return) models.
A double-acting actuator controls both the open and close action through air pressure. Air enters alternating chambers on each side, creating torque in both directions.
Key Advantages:
Larger torque output
Ideal for medium-to-high pressure pipelines
Suitable for large-diameter valves
Maintains last-known position if air supply is lost (no automatic return)
Longer service life due to reduced spring fatigue
Single-acting actuators use compressed air to move the valve in one direction and rely on an internal spring to drive it back to the default position.
Key Advantages:
Automatic fail-safe function: closes or opens the valve when air supply is interrupted
Essential for emergency shutdown systems in oil & gas and chemical plants
Fast response time—can complete emergency closure in as little as 0.8 seconds
Higher safety performance for critical applications
Single-acting actuators are often the first choice for ESD (Emergency Shut Down) systems, flare gas recovery systems, and hazardous material pipelines where instant action is required.
Correct actuator sizing is essential to ensure the valve operates smoothly without stalling or causing excessive wear. The recommended formula used by many manufacturers is:
Torque = Fluid Pressure × Valve Diameter × Safety Factor (1.2–1.5)
The safety factor accounts for uncertainties such as:
Valve seat friction increase over time
Temperature-related material expansion
Fluid impurities causing additional resistance
Startup torque spikes
Wear of internal components
Under-sizing the actuator may lead to incomplete closure, internal leakage, or actuator failure. Over-sizing increases cost and may accelerate wear of the valve stem. Choosing the right torque output ensures optimal valve performance over its lifetime.
The valve body is the core pressure-containing component that anchors the ball, seats, stem, and other internal parts. Its primary functions are:
Fixation and alignment: Ensuring ball and seat alignment with a coaxiality tolerance ≤ 0.1 mm
Pressure containment: Withstanding internal fluid pressure, thermal stress, and mechanical stress
Isolation: Preventing media leakage to the external environment
Selecting the correct body material is essential to guarantee long-term performance under different working conditions.
|
Working Condition |
Recommended Material |
Key Advantages |
|
Low-pressure, clean water, HVAC |
Cast iron, ductile iron |
Low cost, easy installation |
|
Medium-pressure, corrosive fluids |
Stainless steel SS304/SS316 |
High corrosion resistance |
|
High-pressure pipelines (oil & gas, petrochemical) |
Carbon steel WCB or forged steel A105 |
High strength and pressure tolerance |
|
Ultra-high pressure, severe corrosion |
Super duplex, alloy steel, Hastelloy |
Superior mechanical & chemical resistance |
Forged steel valve bodies offer 20% higher compressive strength than cast steel and are preferred in high-pressure, high-temperature environments.
Flow channel geometry significantly affects system efficiency.
Full-bore design reduces flow resistance by up to 50% compared with right-angle channel designs
Full-bore ball valves are ideal for:
Pumping systems
Clean energy systems
Pipelines requiring minimal pressure loss
The internal surface also needs precision machining to reduce turbulence and improve sealing performance.
The ball executes the open/close action through a 90° rotation. When the through-hole aligns with the pipeline, the valve is fully open; when rotated, the solid sphere blocks the flow completely.
Sealing performance is heavily influenced by the surface roughness of the ball:
Ra ≤ 0.8 μm for standard industrial applications
Ra ≤ 0.2 μm for high-precision sealing applications
Leakage rate can be reduced to below 0.1 mL/h
This precision requires advanced polishing and hard coating technologies.
SS304: Suitable for clean water, gas, light-duty applications
SS316: Better for corrosive fluids and seawater environments
Tungsten carbide coated balls:
Used for media containing solid particles
Wear resistance increases by 5 times
Ceramic-coated balls (for extreme wear):
Exceptional hardness
Excellent for abrasive slurries
High-hardness coatings significantly extend service life in abrasive or high-cycling systems.
The valve seat forms the sealing interface with the ball. It must resist wear, pressure, temperature changes, and chemical attack.
Widely used for chemical processing
Excellent corrosion resistance
Suitable for temperatures up to ~180°C
Improved wear resistance
Better performance under pressure fluctuations
High-temperature resistance
Suitable for steam and thermal oil systems
Used for high-temperature, high-pressure, abrasive media
Fire-safe applications in oil & gas
A spring-loaded seat compensates for:
Wear of the ball surface
Thermal expansion/contraction
Pressure fluctuations
For low-temperature applications, composite seats made from fluororubber and PTFE ensure elasticity and prevent brittleness.
For high-corrosive media, PTFE seats combined with metal springs deliver improved sealing without sacrificing resilience.
Pneumatic ball valves are now standard equipment in multiple industries because of their unique combination of safety, efficiency, and reliability.
Top Advantages
Fast switching (hundreds of milliseconds)
Long cycle life suitable for frequent operation
High torque output for large valves
Excellent sealing with precision-engineered ball and seat systems
Explosion-proof safety since no electrical hazards are introduced by the actuator
Compatibility with harsh environments including humidity, dust, vibration, or corrosive gases
These advantages make pneumatic actuated ball valves essential in:
Oil & gas pipelines
Chemical and petrochemical plants
Industrial furnaces and thermal power plants
Water and wastewater treatment
Food and pharmaceutical production
Mining and offshore engineering
Industry experts forecast continuous growth in pneumatic ball valve adoption due to several global trends:
Smart factories now rely heavily on automated flow control. Pneumatic valves are preferred due to durability and low maintenance.
Refineries and chemical plants are increasingly required to implement fail-safe shutdown systems, boosting demand for single-acting spring return actuators.
Full-bore pneumatic valves help reduce system energy losses, supporting sustainability targets.
Integration with positioners, sensors, and IIoT systems is turning pneumatic valves into intelligent control components.
Large-scale water treatment projects in Asia, Africa, and South America heavily rely on pneumatic valve technology.
Pneumatic actuated ball valves remain a cornerstone of industrial automation due to their high durability, rapid response, and ability to handle demanding environments. As global industries continue evolving toward higher safety, efficiency, and intelligence, pneumatic ball valves are well-positioned for long-term growth.
With standardized ISO 5211 mounting, advanced actuator options, improved materials, and precision-engineered internal components, modern pneumatic ball valves have become more reliable, cost-effective, and adaptable than ever before.
These characteristics ensure pneumatic ball valves will continue playing an essential role in the next generation of industrial control systems worldwide.
