Cast steel gate valves are widely recognized as essential components in industrial piping systems, offering reliable flow control, long-term durability, and versatile applications across multiple sectors. These valves are used in industries ranging from oil and gas, power generation, and chemical processing to water treatment and marine engineering.

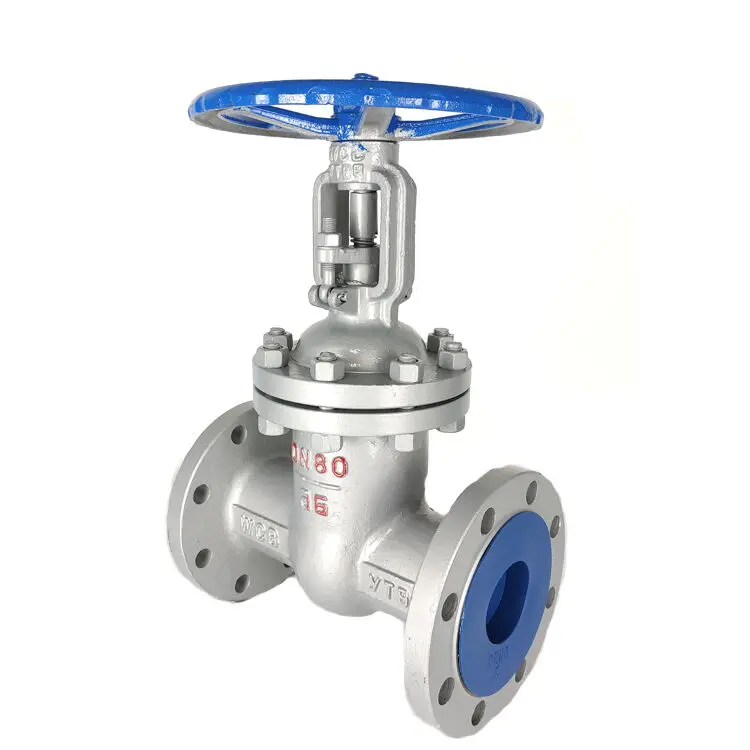

A cast steel gate valve is primarily composed of several key components, including the valve body, bonnet, gate, valve stem, valve seat, handwheel, and assembly bolts. Each component is designed to work harmoniously, ensuring smooth operation and effective control of fluid flow. The choice of material, precise engineering, and robust construction make cast steel gate valves a reliable solution for high-pressure and high-temperature applications.

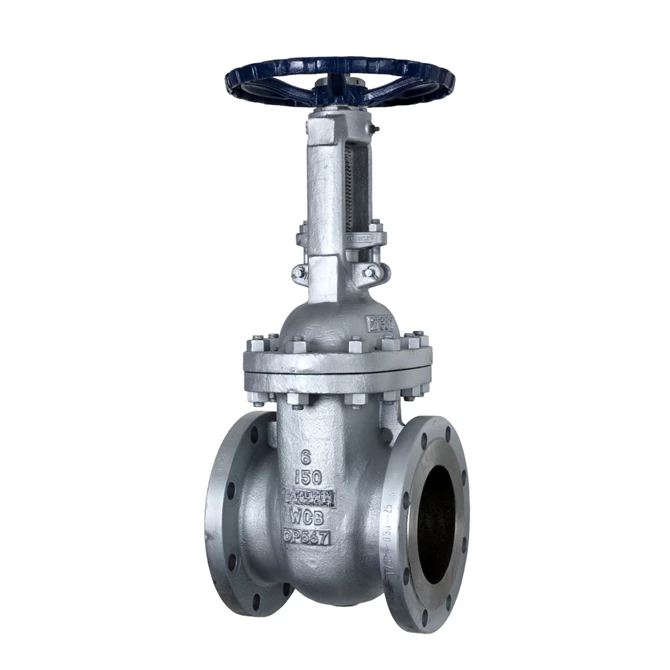

The valve body forms the main housing and serves as the primary passageway for fluid flow. Common materials used for cast steel gate valves include WCB cast steel and stainless steel grades 304 and 316, selected for their corrosion resistance, mechanical strength, and durability. To protect against rust and external wear, the exterior surfaces of cast steel valves are often painted or coated. Additionally, for clear identification and traceability, valve information such as size, pressure rating, material, and trademark is either cast directly onto the body or displayed on a durable nameplate.
The bonnet is attached to the valve body and houses the valve stem and handwheel assembly. Typically constructed from the same material as the valve body, the bonnet may include a gland depending on the valve design, which ensures a tight seal around the stem and prevents leakage.
At the heart of the valve is the gate, a wedge-shaped component that moves vertically to regulate fluid flow. The gate may include a metal sealing ring embedded into its surface to improve sealing performance. The valve stem connects the gate to the operator mechanism, enabling the transfer of motion from the handwheel, lever, or actuator to the gate itself.
The valve seat provides the critical sealing surface. It is precisely machined to match the gate and may vary in design depending on the operational environment, such as high-temperature steam, corrosive chemicals, or abrasive fluids. The handwheel, usually crafted from cast steel or stainless steel, allows manual operation, while larger valves may feature turbine heads, electric actuators, or pneumatic systems for automated control. Handwheels are often painted red or blue for easy identification in industrial settings.
The operation of a cast steel gate valve is based on a simple yet effective principle: linear motion. The gate moves perpendicularly to the fluid flow, either rising to open the valve or lowering to close it. This up-and-down movement directly controls the fluid passage through the valve.
When the valve is fully open, the gate retracts entirely into the bonnet, creating a straight, unobstructed flow path. This ensures minimal pressure drop and allows maximum fluid throughput. Conversely, in the closed position, the gate fits snugly against the valve seats, effectively blocking the flow and preventing leakage.
The gate valve can be operated using several types of actuators:
Manual Actuation: A handwheel or lever is rotated by the operator, which turns the stem and moves the gate. This is suitable for smaller valves or systems where infrequent operation is required.
Electric Actuation: An electric motor drives the stem, allowing automated control, remote operation, and integration into process control systems.
Pneumatic Actuation: Compressed air is used to operate the valve, providing fast and reliable movement, often in hazardous environments where electricity may pose a risk.
Hydraulic Actuation: High-pressure hydraulic fluid operates the valve, offering smooth motion for large valves or systems requiring precise flow control.
Regardless of the actuator type, the movement of the gate is linear and straightforward, which simplifies operation and reduces the likelihood of mechanical failure.
One of the defining characteristics of cast steel gate valves is their sealing mechanism. When closed, the gate presses tightly against the valve seats, creating a secure barrier that prevents any fluid leakage. The sealing surfaces of both the gate and seats are machined to high tolerances to ensure a perfect fit.
In some designs, soft sealing materials such as PTFE (polytetrafluoroethylene) or rubber are used to enhance sealing performance, particularly in systems where absolute tight shut-off is critical. This combination of metal-to-metal or soft-to-metal sealing allows cast steel gate valves to handle a wide range of fluids, from clean water and steam to oil, gas, and chemicals.
Cast steel gate valves are chosen over other valve types in many industrial applications due to several compelling advantages:
Full Flow Capacity: The straight-through design of a gate valve minimizes flow resistance when fully open, maximizing fluid throughput and reducing pressure drops in the pipeline.
Bi-Directional Flow: These valves can handle flow from either direction, providing flexibility in pipeline design and installation.
Tight Shut-Off: The precise machining of the gate and seat, along with optional soft sealing, ensures a leak-free seal when closed, making them ideal for critical shut-off applications.
Durability and Strength: Cast steel offers exceptional mechanical strength, thermal resistance, and durability. Gate valves can withstand high pressures, high temperatures, and harsh industrial environments.
Low Maintenance: With a relatively simple design and few moving parts, cast steel gate valves require minimal maintenance and have a long operational lifespan.
Versatility: They are available in a wide range of sizes, pressure ratings, and materials to suit various industrial requirements, from small-scale piping to large pipelines exceeding 48 inches in diameter.
Customizable Operation: The ability to attach different actuators allows these valves to be adapted for manual, semi-automatic, or fully automated control systems.
The versatility and robust performance of cast steel gate valves make them suitable for a wide range of industrial applications:
Oil and Gas Industry: Used for upstream, midstream, and downstream operations, including pipelines, refineries, and storage facilities. Their bi-directional flow capability and tight shut-off are essential for controlling oil, gas, and petroleum products.
Power Generation: Employed in steam, water, and cooling systems in power plants. Their ability to withstand high temperature and pressure makes them indispensable in boiler feed lines and steam pipelines.
Chemical and Petrochemical Plants: Resistant to corrosive chemicals, cast steel gate valves can be lined or equipped with specialized seats to handle aggressive fluids safely.
Water Treatment and Distribution: Used in water pipelines, wastewater treatment plants, and municipal supply networks, offering reliable control and minimal leakage.
Marine and Shipbuilding: Durable cast steel construction allows them to withstand harsh marine environments and saline water applications.
Industrial Manufacturing: Applied in various process systems, including paper mills, pulp processing, and food processing lines, where durability and flow control are critical.
Proper installation is crucial for the optimal performance of cast steel gate valves. Key considerations include:
Ensuring proper alignment with the pipeline to avoid undue stress on the valve body or stem.
Installing valves in accessible locations for maintenance and operation.
Using appropriate gaskets and fasteners to prevent leakage at flanged connections.
Avoiding excessive torque during actuator or handwheel operation, which could damage the gate or stem.
Maintenance of cast steel gate valves is generally straightforward due to their simple design. Regular inspections are recommended to check for:
Leakage around the bonnet or stem.
Corrosion or surface damage.
Smooth operation of the gate and actuator mechanism.
Wear or damage to the seating surfaces.
Periodic lubrication of the stem and actuator components, combined with routine cleaning, can significantly extend valve service life and ensure reliable operation in critical systems.
In recent years, cast steel gate valves have benefited from technological innovations and evolving industry standards. Some notable trends include:
Integration with Digital Control Systems: Smart actuators and sensors allow remote monitoring, predictive maintenance, and automated operation, enhancing safety and operational efficiency.
Advanced Materials: Beyond traditional WCB and stainless steel, high-performance alloys and corrosion-resistant coatings improve valve longevity in extreme environments.
Environmental Compliance: New standards for emission control and leakage reduction encourage the use of valves with tighter shut-off capabilities and enhanced sealing designs.
Large-Diameter Valve Solutions: Advances in casting and machining technology have enabled the production of valves exceeding 48 inches, meeting the needs of large pipelines in oil, gas, and water sectors.
Cast steel gate valves are fundamental to modern industrial piping systems, offering a combination of durability, precision, and operational reliability. Their linear motion design, robust sealing mechanism, and versatility in actuator options make them suitable for a wide range of applications across multiple industries.
With advantages such as full flow capacity, bi-directional operation, tight shut-off, and low maintenance requirements, cast steel gate valves continue to be a preferred choice for engineers and operators worldwide. As industrial demands evolve and automation becomes more widespread, the role of cast steel gate valves in ensuring safe, efficient, and reliable fluid control remains as vital as ever.
By combining traditional engineering excellence with modern materials and smart technology, cast steel gate valves are poised to maintain their critical role in industrial systems for decades to come.
