As global demand for liquefied natural gas (LNG) and other cryogenic fluids continues to grow, so too does the need for reliable, high-performance valves capable of withstanding the rigors of ultra-low temperature service. Cryogenic gate valves are a vital part of this infrastructure, playing a key role in controlling the flow of cryogenic liquids and gases such as liquid nitrogen, liquid oxygen, LNG, liquid hydrogen, and liquid helium.
Designed to perform effectively at temperatures well below -40°C, these valves must maintain tight shut-off, minimal leakage, and mechanical integrity under some of the most extreme thermal conditions found in industrial operations. This news article explores what cryogenic gate valves are, how they work, how they are installed, their maintenance requirements, and their applications in modern cryogenic systems.
The term “cryogenic” broadly refers to temperatures below -150°C (-238°F). Many industrial gases fall into this category, including:
Liquid oxygen (LOX): Boiling point at approximately -183°C (-297°F)
Liquid nitrogen (LIN): Boiling point at -196°C (-320°F)
Liquid hydrogen: Boiling point at -253°C (-423°F)
Liquid helium: Boiling point at -269°C (-452°F)
At these temperatures, materials behave differently. Metals can become brittle, seals can fail, and thermal contraction can cause leaks if the valve is not designed properly. The cryogenic gate valve’s design mitigates these challenges through the use of specialized materials, extended bonnets, and other engineering features that enable safe and efficient operation.

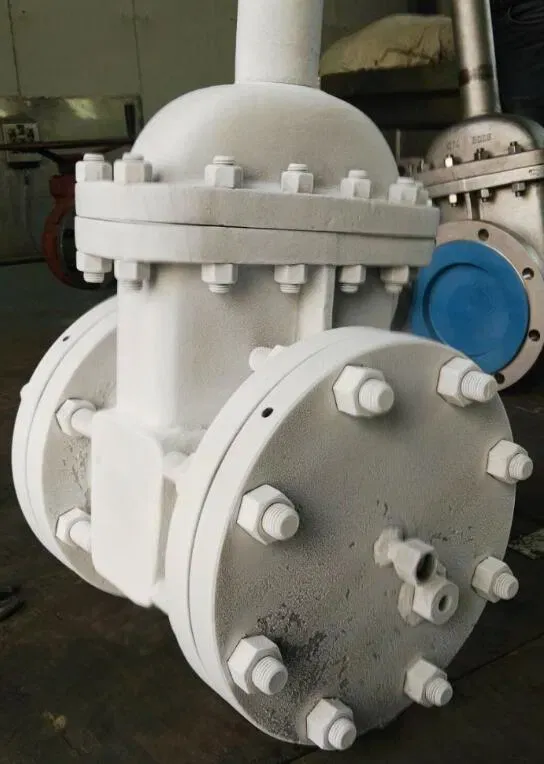

Cryogenic gate valves are easily identified by their extended bonnets. This extension plays two vital roles:
It keeps the stem packing—where the valve stem enters the valve body—far enough away from the cryogenic fluid to prevent freezing. The stem packing must remain flexible to ensure a tight seal and smooth operation.
The extended bonnet limits the heat transfer from the ambient atmosphere to the cryogenic medium inside the valve. This design helps prevent unwanted vaporization (flash-off) of the cryogenic liquid, improving energy efficiency and maintaining process stability.
Inside, the gate valve uses a flat or wedge-shaped gate that moves perpendicular to the flow direction to start or stop flow. In the open position, the gate is lifted entirely out of the flow path, providing minimal pressure drop. In the closed position, the gate seats against the valve seats to ensure a bubble-tight shut-off.
Cryogenic gate valves function like standard gate valves but incorporate special features and materials to handle extreme cold. The basic operation involves a handwheel or actuator that moves the gate up or down along the stem.
When open, the flow path is unobstructed, allowing the full flow of cryogenic fluid with minimal turbulence or pressure loss—a critical factor for high-flow systems such as LNG pipelines or air separation units.
When closed, the gate presses firmly against the seats, creating a tight seal that prevents leaks even at low temperatures. The seats and gate are typically made from stainless steel or other cryogenic-compatible alloys to maintain strength and ductility in sub-zero conditions. Some valves also include flexible or resilient seat inserts to enhance sealing performance.
Additionally, cryogenic valves often incorporate features to prevent thermal shock and ensure reliable operation:
Pressure relief holes: These equalize pressure between the upstream and downstream sides when the valve is closed, preventing pressure buildup that could damage internal components.
Vent and drain ports: These help safely remove trapped cryogenic liquid before maintenance.
Low-emission packing: Specialized packing materials are used to minimize fugitive emissions, which is especially important for gases like LNG and liquid hydrogen.
Cryogenic gate valves are used wherever the secure control of cryogenic liquids or gases is required. Common applications include:
Liquefied natural gas (LNG) terminals: Managing the flow of LNG during liquefaction, storage, and regasification.
Air separation units (ASUs): Producing and handling liquid oxygen and liquid nitrogen.
Hydrogen production and storage: Handling liquid hydrogen for clean energy applications.
Medical and research facilities: Storing and distributing liquid helium and other cryogenic media for MRI machines and particle accelerators.
Space industry: Transporting and controlling cryogenic rocket fuels like liquid hydrogen and liquid oxygen.
Installing a cryogenic gate valve requires careful attention to system design and operating conditions. Improper installation can result in leaks, operational difficulties, or safety hazards. Here are some general steps and best practices:
First, confirm that the valve is suitable for the intended cryogenic service. Check material certifications, pressure ratings, temperature limits, and end connections. Ensure that the extended bonnet is appropriate for the insulation thickness and that the valve orientation matches the system design.
Before installation:
Clean the pipeline thoroughly to remove debris, oil, or moisture.
Ensure flanges, weld ends, or threaded connections align properly.
Check that the pipeline supports are adequate to handle thermal contraction and expansion.
For valves with an extended bonnet, install the valve in the upright position to ensure that the stem packing stays warm enough to function correctly. Horizontal installation is not recommended for most cryogenic gate valves unless specified by the manufacturer.
Depending on the end connection:
Flanged valves: Use appropriate gaskets rated for cryogenic service. Tighten bolts in a cross pattern to ensure even compression.
Butt-weld valves: Use welding procedures designed for stainless steel or cryogenic alloys, with proper purging to avoid oxidation.
Threaded valves: Apply compatible sealing compound or PTFE tape suitable for low-temperature use.
After installation, the piping and valve body should be insulated properly. However, do not insulate the entire bonnet—only the body and pipeline. The extended bonnet must remain uninsulated to keep the packing area above freezing temperatures.
Before commissioning, perform a hydrostatic or pneumatic test according to industry standards to ensure leak-tight performance. Cryogenic leak tests may also be conducted at operating temperatures for critical systems.
Operators should be aware of the unique behavior of cryogenic systems:
Thermal contraction: Piping and valves contract significantly at cryogenic temperatures. Flexible supports and expansion loops may be necessary.
Cold embrittlement: Materials can become brittle and susceptible to cracking if exposed to rapid temperature changes.
Frosting and icing: Surfaces exposed to ambient air will accumulate frost. Proper insulation minimizes this issue.
For manual operation, use slow and smooth valve actuation to reduce the risk of thermal shock. For automated systems, actuators should be designed for low-temperature operation and tested under real conditions.
Like any industrial valve, cryogenic gate valves require regular maintenance to ensure reliability and safety.
Inspect the extended bonnet for signs of frost build-up.
Check stem packing for leaks or damage.
Verify that insulation remains intact and dry.
Some cryogenic valves require special low-temperature lubricants on the stem and threads to ensure smooth operation. Always use lubricants recommended by the valve manufacturer.
If a valve does not shut off completely, inspect the seats and gate for damage or wear. Cryogenic service can cause minor erosion or galling over time. Polishing or replacement of damaged parts may be necessary.
For automated valves, check actuator seals, gears, and connections regularly. Ensure that electric or pneumatic actuators are functioning correctly at low temperatures.
Working with cryogenic systems presents unique safety risks:
Cold burns: Direct contact with cryogenic liquids or even cold valve surfaces can cause severe frostbite. Always wear proper cryogenic gloves and protective gear.
Asphyxiation: Cryogenic liquids vaporize rapidly, displacing oxygen in confined spaces. Ensure adequate ventilation and use oxygen monitors where needed.
Over-pressurization: Rapid vaporization of cryogenic liquids can generate high pressures. Valves and piping must include pressure relief devices.
Always follow industry standards and local regulations when designing, installing, and maintaining cryogenic systems.
Cryogenic gate valves are indispensable components in industries where precise control of ultra-low temperature fluids is required. Their robust design, extended bonnet configuration, and carefully selected materials allow them to perform reliably in environments where ordinary valves would fail.
As global energy and industrial trends continue to drive the demand for LNG, hydrogen, and other cryogenic applications, choosing the right cryogenic gate valve—and ensuring its proper installation and maintenance—remains critical for safety, efficiency, and cost-effectiveness.
From LNG terminals to medical research labs, the cryogenic gate valve stands as a testament to modern engineering, bridging the gap between ambient conditions and the extreme cold that fuels many of today’s most advanced technologies.
