Introduction

In today’s fluid handling industries, the need for reliable, efficient, and leak-proof flow control devices has never been greater. Among the diverse range of valve technologies available, soft sealing ball valves stand out for their superior sealing performance, ease of operation, and cost-effectiveness in many low to medium pressure applications.

A soft sealing ball valve, sometimes referred to as a soft-seated ball valve, combines a precision-engineered metal ball with a resilient, non-metallic seat. This seat is typically made from materials such as PTFE (polytetrafluoroethylene), RPTFE (reinforced PTFE), Devlon, Nylon, Peek, or elastomers like EPDM or Viton. The result is a flexible, adaptive sealing surface that accommodates minor irregularities on the ball’s surface, ensuring a bubble-tight shutoff even after repeated cycles.

However, like any piece of industrial equipment, soft sealing ball valves come with design considerations and performance limitations. Understanding where they excel—and where they may not be suitable—helps plant engineers, operators, and procurement specialists make informed decisions that balance efficiency, reliability, and cost.

In this in-depth news feature, we will explore the fundamentals of soft sealing ball valves, their working principles, advantages, typical applications, material selection, limitations, and key considerations for choosing the right valve for your process needs.

What is a Soft Seated Ball Valve?

A ball valve is a quarter-turn rotary motion valve that uses a perforated, pivoting ball to control flow through it. The essential difference between soft-seated and metal-seated ball valves lies in the construction of the seat ring—the component that comes into direct contact with the ball to form the seal.

In soft seated ball valves, the seat ring is made from a soft material like PTFE, RPTFE, or other plastics and elastomers. The inherent flexibility and resilience of these materials allow them to conform tightly to the surface of the metal ball. This creates a reliable seal, even when minor imperfections exist on the ball’s surface, and helps compensate for thermal expansion or slight misalignment.

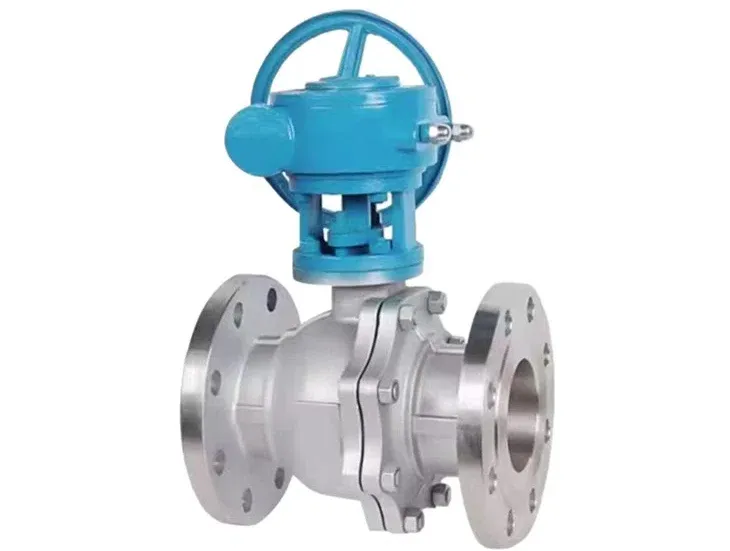

Soft Sealing Ball Valve

Floating vs. Trunnion Soft Seated Designs

Soft seated ball valves can be broadly categorized as floating or trunnion-mounted designs.

In a floating ball valve, the ball is held in place by two flexible seats, one on each side. The fluid pressure pushes the ball against the downstream seat to create a tight seal. This simple design works well for small to medium-sized valves.

In a trunnion-mounted ball valve, the ball is fixed in position by upper and lower trunnions (bearings or shafts), while the seats are spring-loaded or pressure-energized to maintain contact with the ball. Trunnion designs handle higher pressures and larger diameters more efficiently and often use a combination of a metal seat ring with a soft seat insert to ensure optimal sealing.

Despite these variations, both configurations are commonly referred to as soft seated ball valves as long as the sealing surface contacting the ball is made of a soft material.

Key Advantages of Soft Sealing Ball Valves

The popularity of soft sealing ball valves across industries is no coincidence. Their widespread adoption is rooted in several clear operational advantages:

1. Superior Sealing Performance

Soft seated ball valves are renowned for their ability to achieve bubble-tight shutoff. The soft seat material flexes slightly under pressure, filling microscopic voids and compensating for minor scratches or irregularities on the ball. This ensures minimal leakage rates—often meeting stringent international standards for zero leakage.

Such performance makes soft seated ball valves an excellent choice for applications where tight sealing is paramount, including in gas distribution systems, chemical processing, and water treatment.

2. Low Operating Torque

Compared to metal-seated designs, soft seats produce less friction between the ball and the seat. This translates to lower torque requirements to operate the valve. As a result, smaller actuators can be used in automated systems, and manual operation with a lever or handwheel becomes easier and safer for operators.

This ease of operation is particularly valuable in applications requiring frequent cycling or where quick shutoff is critical.

3. Cost-Effective Solution

Soft seated ball valves generally cost less to produce and maintain than metal-seated variants. The soft seat materials are more economical and easier to machine or replace during maintenance.

In addition, their low torque operation reduces wear on actuators and gearboxes, minimizing the risk of costly downtime.

4. Resistance to Particulate Damage

The resilience of soft seat materials provides a degree of forgiveness when handling fluids with minor solid particles. While soft seated ball valves are not recommended for highly abrasive services, they are more tolerant of small debris than metal-seated options, which can be scratched or scored by particulates, leading to leakage.

Common Seat Materials: Properties and Selection

The seat material is arguably the most critical factor influencing a soft sealing ball valve’s performance. Here’s a look at some popular seat materials and where they shine:

Seat Material

Temperature Range

Strengths

Typical Applications

PTFE (Teflon)

-50°C to +180°C

Excellent chemical resistance, low friction

General purpose, chemicals, water

RPTFE

-50°C to +200°C

Improved wear resistance, slightly higher pressure capability

Steam, moderate abrasive fluids

Devlon

-50°C to +220°C

Good mechanical strength, chemical compatibility

Oil & gas, chemical processing

Nylon

-40°C to +120°C

Tough, good impact strength

Water systems, general industrial

Peek

-40°C to +250°C

Excellent high-temp performance, high strength

Aggressive chemicals, high temperature

Choosing the right seat material requires balancing chemical compatibility, operating temperature, pressure, and the characteristics of the fluid being handled.

Typical Applications of Soft Sealing Ball Valve

Soft sealing ball valves are used in a wide range of industries, including:

Chemical Processing: Thanks to their excellent sealing and chemical resistance, they handle corrosive fluids safely.

Oil & Gas: Used in upstream and downstream operations for non-abrasive services.

Water & Wastewater Treatment: Commonly installed in pipelines for potable water, desalination, and effluent management.

HVAC Systems: Ideal for regulating chilled and heated water circuits due to their reliable shutoff and ease of automation.

Food & Beverage: When made from hygienic materials and designed to sanitary standards, they are used for clean-in-place (CIP) systems and fluid transfer.

In general, they excel in clean fluid service where leakage prevention is critical, and operating conditions stay within the temperature and pressure limits of the soft seat material.

Limitations and Considerations

While soft seated ball valves offer excellent sealing, they do have inherent limitations:

Temperature and Pressure Limits

Soft seat materials can degrade at elevated temperatures and pressures. For very high-temperature or high-pressure services, metal-seated ball valves or other valve types (e.g., globe or gate valves) may be more appropriate.

Wear and Deformation

Over time, soft seat materials can wear down, become deformed, or suffer from creep under prolonged stress, leading to leakage. Regular inspection and timely replacement of seat rings are vital for long-term reliability.

Not Ideal for Severe Abrasives

Applications with significant solids or slurries can erode the soft seat material. In these scenarios, a metal-seated design with hard coatings (e.g., Stellite or tungsten carbide) may be required.

Fire Safety

In high-risk environments, special fire-safe designs with secondary metal seats are recommended. In the event the soft seat burns away during a fire, the metal seat maintains sealing to prevent catastrophic leaks.

Fire-Safe Design: A Special Note

Many industries, particularly oil and gas, require valves to meet fire-safe standards. Fire-safe soft seated ball valves feature a secondary metal seat that engages when the primary soft seat fails due to extreme heat. This ensures continued containment of the process fluid, minimizing the risk of leaks that could fuel a fire.

Buyers should always check that soft seated ball valves for critical services comply with relevant fire-safe certifications, such as API 607 or ISO 10497.

Maintenance and Lifespan

A key benefit of soft sealing ball valves is their ease of maintenance. Seats and seals can often be replaced without removing the entire valve from the pipeline, reducing downtime and labor costs.

To extend the valve’s operational life:

Periodically inspect for signs of seat wear, deformation, or chemical attack.

Ensure that the operating environment stays within the specified pressure-temperature ratings.

Avoid using soft seated valves for fluids that can crystallize or deposit solids, which can scratch or damage the seat material.

When well maintained and properly applied, soft seated ball valves can deliver years of reliable service.

As industries continue to demand higher performance and safety, manufacturers are advancing soft seated ball valve designs in several ways:

Improved Seat Materials: New composites and high-performance polymers extend temperature and chemical resistance.

Enhanced Fire-Safe Features: Dual-seal designs and improved metal seat inserts increase safety margins.

Smart Actuation: Integration with IoT-enabled actuators for remote monitoring and predictive maintenance.

Eco-Friendly Materials: Development of seat materials with lower environmental impact.

Conclusion

Soft sealing ball valves are a trusted solution across diverse industries that rely on dependable, leak-tight flow control. Their combination of bubble-tight sealing, ease of operation, and cost-effectiveness makes them invaluable in low to medium pressure systems where chemical compatibility and operational efficiency are key.

However, selecting the right soft seated ball valve goes beyond choosing a generic model off the shelf. It requires a careful understanding of the fluid characteristics, temperature and pressure conditions, seat material compatibility, and the operational demands of the system.

When correctly specified and properly maintained, these versatile valves can deliver reliable performance for years, ensuring safety, efficiency, and peace of mind for engineers, operators, and facility owners alike.
