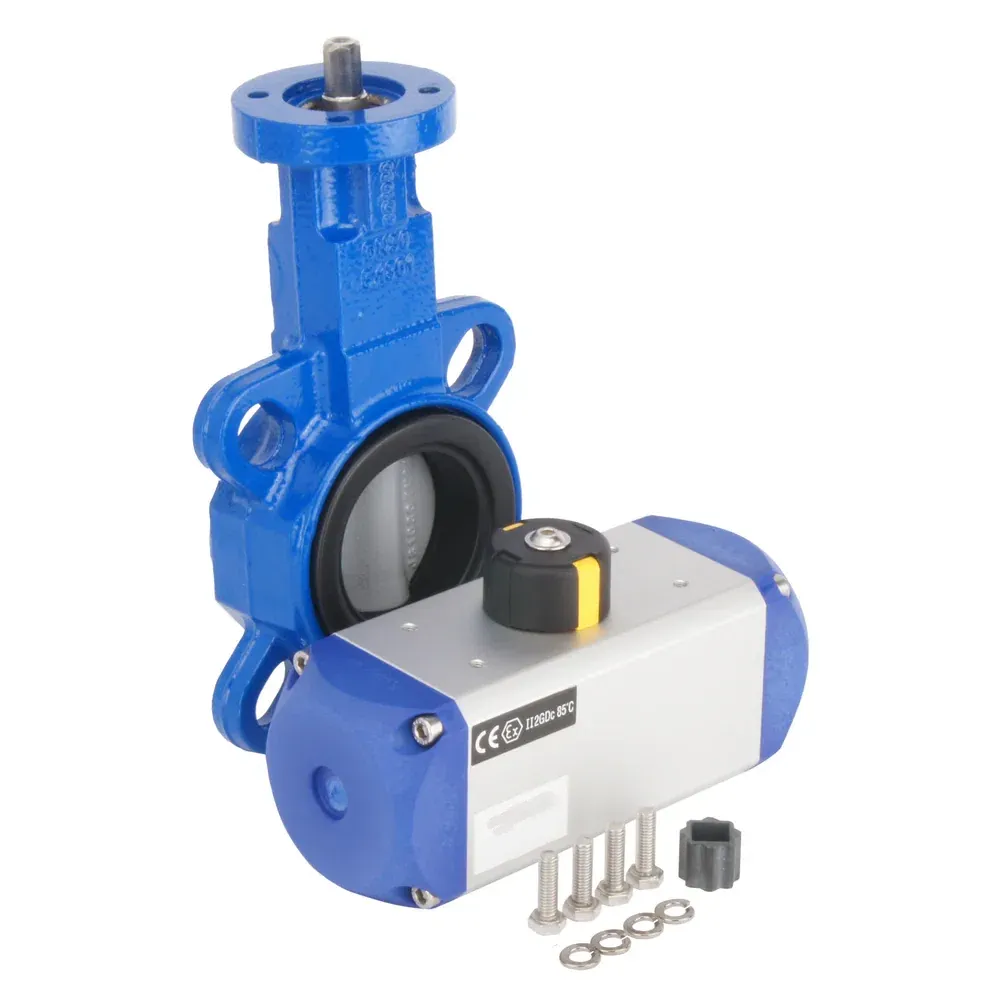

Pneumatic butterfly valves have become a vital component in modern industrial piping systems. They consist of two primary parts: a pneumatic actuator and the butterfly valve itself. The butterfly valve features a circular disc that rotates with the valve stem, providing efficient valve action. These valves are primarily used as shut-off valves, but many designs also support regulating or throttling functions, making them versatile for various fluid control applications.
The main advantages of pneumatic butterfly valves are their simple structure, compact size, light weight, and low cost. These characteristics make them particularly suitable for low-pressure, large-diameter piping systems where efficiency, reliability, and ease of installation are key. Today, pneumatic butterfly control valves are increasingly deployed in industries such as petroleum, natural gas, chemical processing, water treatment, and thermal power plant cooling systems. Their versatility and adaptability have led to the development of various classifications, including pneumatic wafer-type, pneumatic lined, pneumatic ventilation, and pneumatic expansion butterfly valves.
A pneumatic butterfly valve comprises several critical components that work in unison to control fluid flow effectively:
The main housing that contains all internal components and connects the valve to the pipeline. Its design varies depending on the specific type of butterfly valve and the intended application.
The primary flow control element inside the valve, which rotates to either allow or block fluid flow. Its thickness and material influence flow resistance and durability.
Connected to the disc, the stem transmits rotational motion from the actuator to the disc. Its alignment and support are essential for smooth valve operation.
These create a tight seal when the valve is closed, preventing leakage. Sealing can be either resilient (soft) or metal, depending on the application.
Support the stem and minimize friction, ensuring smooth rotational motion.
Mounted atop the valve, this component converts compressed air pressure into mechanical motion, enabling automated opening and closing of the valve.
This straightforward structure, requiring only a 90-degree rotation for full operation, makes pneumatic butterfly valves both simple to use and efficient in controlling fluid flow. When fully open, the disc itself creates the only resistance to flow, resulting in a minimal pressure drop across the valve.
The operational principle of a pneumatic butterfly valve is intuitive yet highly effective. The valve disc rotates with the stem to control fluid flow. When fully closed, it provides a tight seal, acting as an effective stop valve. In partially open positions, the disc can regulate or throttle flow, offering precise control over fluid dynamics.
Due to their small size and minimal number of parts, butterfly valves are lightweight, require less maintenance, and are quick to operate. The two main types of sealing—resilient and metal—offer flexibility for different industrial applications. Resilient-seated valves use flexible materials, such as rubber, to create a reliable seal, while metal-seated valves are suited for high-temperature or high-pressure environments. Correct selection of valve type and size is crucial for achieving optimal performance, especially in large-diameter piping systems.
Pneumatic butterfly valves can be classified into several types, each optimized for specific applications:
These valves feature a compact, short-distance design suitable for pipelines with limited space. The structure ensures zero external leakage, and internal leakage complies with national standards. Their wafer-type design allows for easy installation between flanges.
Lined valves are designed for chemical resistance and corrosion protection. Common lining materials include EPDM, heat-resistant EPDM, natural rubber, chloroprene, fluororubber, and PTFE. These materials provide versatility for handling various media, from water and chemicals to corrosive fluids.
In this design, the valve seat and body lining are integrated, ensuring that only the fully formed valve seat and sleeve disc contact the medium during operation. This enhances resistance to corrosive or aggressive fluids, extending valve lifespan and reducing maintenance needs.
Designed with a thin gap between the valve plate and seat, these valves are suitable for environments with poor air circulation. The small gap allows precise flow regulation while minimizing contamination or pressure loss.
Expansion-type designs accommodate thermal expansion or pipeline movement, making them suitable for systems with fluctuating temperatures or pressures. They ensure stable operation even under dynamic conditions.
Before leaving the factory, pneumatic butterfly valves undergo rigorous testing to ensure optimal performance. This includes verifying sealing performance, actuator function, and mechanical integrity. Key testing and adjustment procedures include:
Users should fix both the inlet and outlet sides, close the valve disc, apply pressure to the inlet, and check for leaks on the outlet. Opening the valve disc before pressure testing prevents damage to the sealing surfaces.
Pneumatic, hydraulic, and electric actuators are pre-adjusted at the factory, but transportation may cause slight misalignments. Users should readjust the actuators according to the supplied instructions to ensure proper operation.
Electrically actuated valves come with pre-set opening and closing strokes. Upon initial power connection, manually moving the valve to a halfway position helps verify that the directional indicator matches the valve’s closing direction, preventing operational errors.
To ensure long-term reliability, attention to installation and operation is essential. Common issues and their solutions include:
Confirm that the valve specifications, flow direction, and operating conditions match. Thoroughly clean the valve chamber to remove impurities that could damage the sealing surfaces.
Use dedicated butterfly valve flanges, such as HGJ54-91 welding steel flanges, to ensure proper alignment and support.
Valves should ideally be installed upright. Avoid upside-down installations to maintain optimal performance.
For precise control, use a worm gearbox or similar mechanism to adjust flow
Valves with frequent cycling require regular lubrication checks, approximately every two months, to ensure smooth operation of the worm gearbox and other moving parts.
Inspect all connection points, packing seals, and valve stem rotation regularly to prevent leakage or operational difficulty.
Metal-sealed butterfly valves are unsuitable for installation at pipeline ends without an additional outlet flange to prevent overtravel or seal ring damage.
Proper maintenance is critical to extending the lifespan of pneumatic butterfly valves and ensuring reliable performance. Key maintenance practices include:
Check the disc, seat, and stem for wear or damage. Inspect the actuator to ensure consistent mechanical motion and detect early signs of malfunction.
Apply grease to bearings, stem interfaces, and gearbox components as required. Adequate lubrication prevents premature wear and ensures smooth operation.
Regularly operating the valve prevents buildup of deposits and maintains the pliability of seals.
In harsh environments, consider corrosion-resistant coatings, special alloys, or fluorine linings to enhance valve durability.
Modern pneumatic butterfly valves often include live-loaded packing systems, maintaining consistent sealing force and reducing the need for frequent maintenance. Condition-based monitoring can also help detect issues before they lead to failure, ensuring decades of reliable operation.
Regularly assess the installation and operational effectiveness of the stem and disc. Promptly address any faults to avoid performance degradation or leakage.
Pneumatic butterfly valves are widely used across multiple industries due to their versatility and efficiency. Typical applications include:
Petroleum and Natural Gas: Control of crude oil, refined products, and natural gas flows in pipelines and processing facilities.
Chemical Processing: Handling corrosive or high-temperature chemical media where reliable shut-off and control are essential.
Water Treatment: Efficient flow management in municipal and industrial water treatment plants.
Thermal Power Plants: Cooling water systems often utilize large-diameter butterfly valves for rapid and efficient control.
HVAC and Ventilation: Ventilation butterfly valves provide reliable airflow control in large ducts or enclosed spaces.
The combination of rapid operation, low pressure drop, minimal maintenance, and adaptability to various media makes pneumatic butterfly valves an industry-standard solution.
Pneumatic butterfly valves represent a reliable, cost-effective, and efficient choice for fluid control across multiple industries. Their simple yet robust design, coupled with ease of operation and maintenance, ensures they remain a preferred option for both shut-off and flow regulation applications. By understanding their components, classifications, operational principles, and maintenance requirements, operators can maximize the efficiency, longevity, and safety of these essential valves. Proper selection, installation, and ongoing care ensure decades of reliable service, even in demanding industrial environments.
