Introduction

Cage-guided control valves play a pivotal role in fluid regulation across various industrial applications. These valves are engineered to deliver precise control, minimize noise, and facilitate efficient maintenance. By incorporating a cage-guided mechanism, they offer enhanced stability, durability, and adaptability compared to conventional valve designs. This comprehensive guide delves into the features, benefits, packing systems, and maintenance practices of cage-guided control valves, while also exploring advancements in their technology and applications.

What is a Cage-Guided Control Valve?

At its core, a cage-guided control valve is designed with a perforated or slotted cage that guides the valve plug's movement. The cage not only ensures stable operation but also serves as a flow regulator. The design allows for a balanced plug, reducing actuator size while maintaining precise control under varying pressure conditions. By modifying the cage’s geometry, these valves can adapt to specific flow requirements, making them indispensable in industries like oil and gas, power generation, and chemical processing.

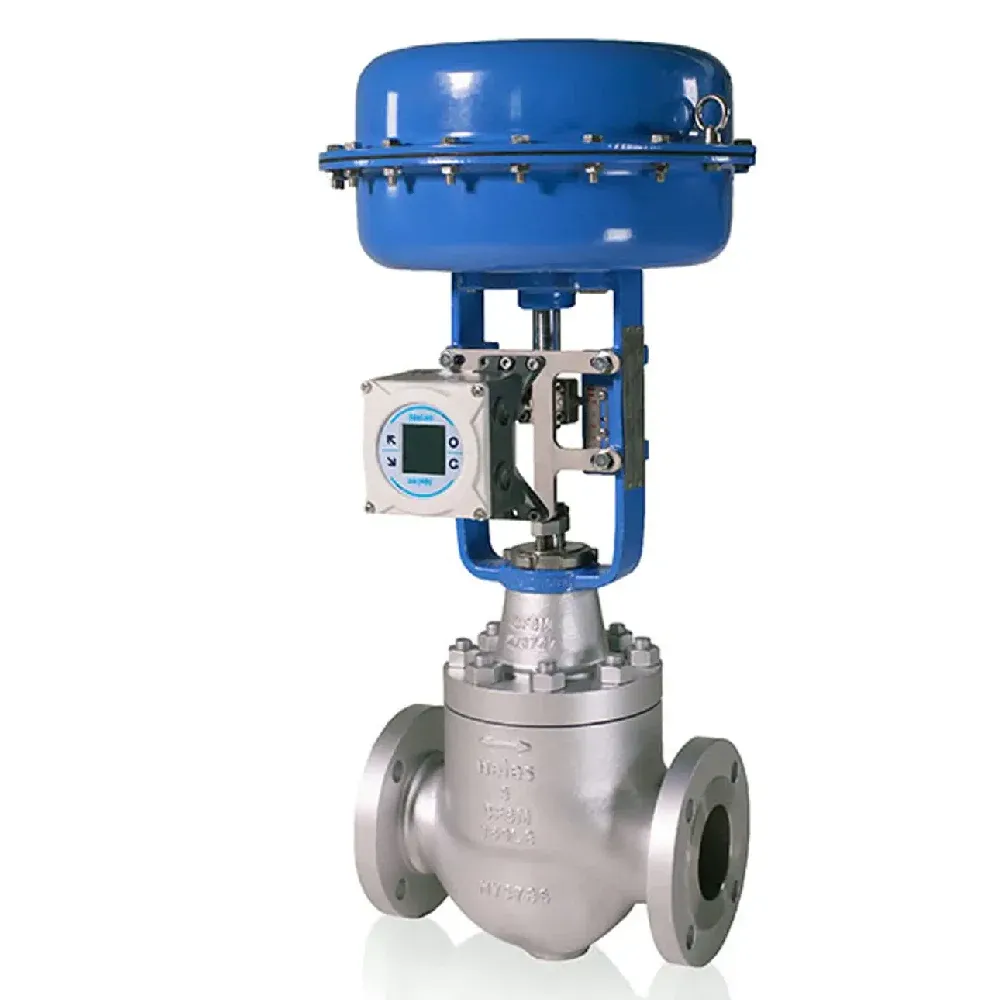

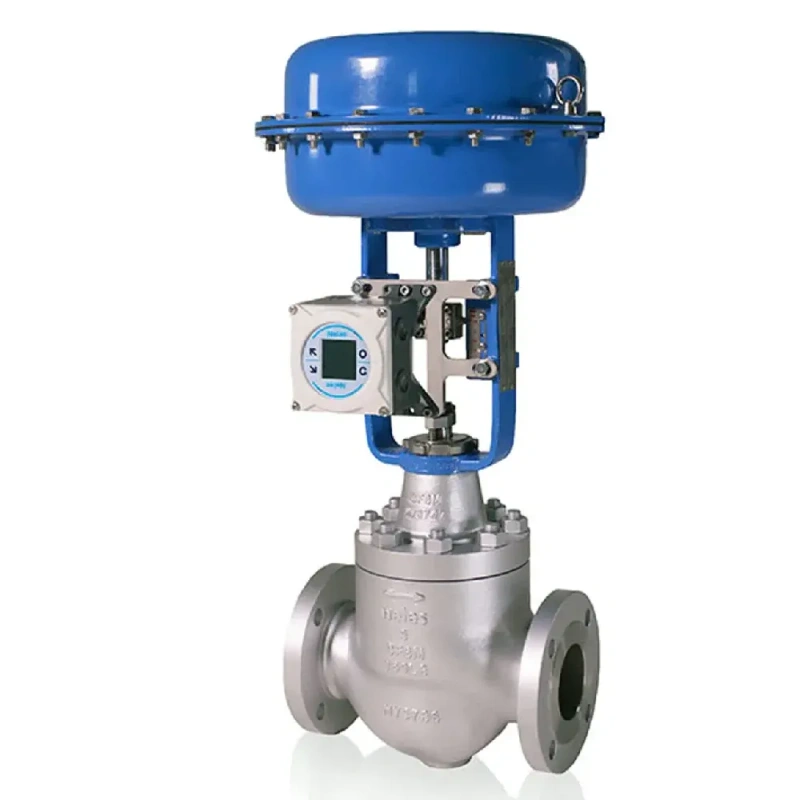

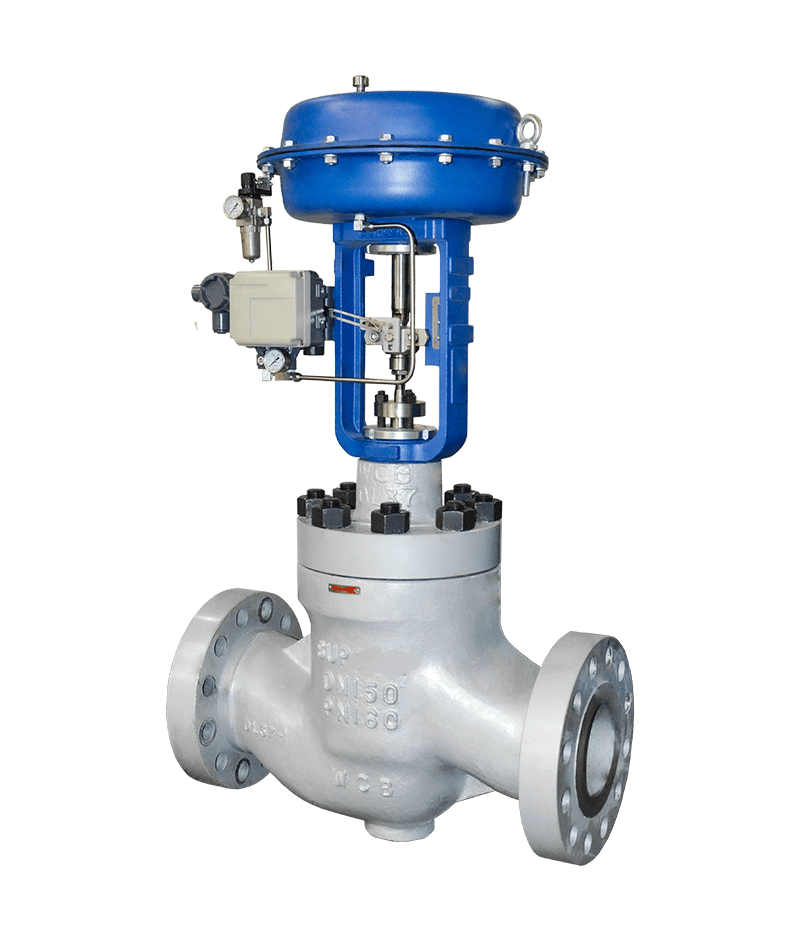

Cage-guided Control Valve

Benefits of Cage-Guided Control Valves

The advantages of cage-guided control valves set them apart from standard single- or double-seated valves:

1. Smaller Actuator Requirements

The balanced plug structure in cage-guided valves reduces the force required to operate the valve, enabling the use of smaller, more economical actuators. This design also allows the valve to handle higher pressure differentials effectively.

2. Customizable Flow Characteristics

The shape of the cage windows determines the flow characteristics of the valve. By customizing the cage design, operators can achieve desired flow profiles, enhancing flexibility and commonality of parts. This feature simplifies inventory management and allows the valve to perform under diverse conditions.

3. Noise Reduction

Compared to traditional single- or double-seated control valves, cage-guided designs significantly reduce noise levels—often by up to 10 dB. This makes them suitable for noise-sensitive environments, such as residential areas or indoor facilities.

4. Ease of Maintenance

Components such as the cage, plug, and seat can be replaced without removing the valve body from the pipeline.

Standard cages can be upgraded to multi-hole designs, reducing noise and preventing cavitation.

These features minimize downtime and simplify repairs, especially in critical applications.

Control Valve Packing Systems

Packing systems in control valves are crucial for ensuring a tight seal and preventing leakage while allowing smooth operation. The choice of packing material depends on factors like operating temperature, pressure, and environmental regulations.

Common Packing Types

1. PTFE V-Ring Packing

Comprised of molded V-shaped rings, this packing system does not require lubrication.

It is resistant to most chemicals, making it ideal for aggressive fluids.

Temperature Range: −40°C to +230°C.

2. Graphite Packing

Designed for high-temperature applications, this packing can withstand extreme conditions without degradation.

It is durable and resistant to thermal cycling.

Temperature Range: +230°C to +450°C.

3. Low Fugitive Emissions Live Loading

Features a live-load spring design, ideal for environmental compliance.

This advanced system provides superior sealing performance and reduces emissions.

Maintenance of Cage-Guided Control Valves

To ensure long-term reliability and performance, regular maintenance of cage-guided control valves is essential. Below are key maintenance practices:

1. Regular Inspection

Routine inspections can identify potential issues early, preventing costly downtime.

Visual Inspection:

Leakage Check: Examine the valve body, actuator, and connections for signs of leakage.

Corrosion and Wear: Look for rust, pitting, or other signs of wear on the valve and actuator.

Physical Damage: Check for dents, cracks, or other physical abnormalities.

Functional Inspection:

Operation Test: Ensure smooth manual operation without resistance or sticking.

Actuator Functionality: Verify that the actuator responds accurately to control signals.

2. Component Servicing and Replacement

Cage and Plug Replacement: Replace worn or damaged cages and plugs to restore optimal performance.

Seal and Packing Maintenance: Check and replace seals and packing materials to prevent leaks and ensure compliance with regulations.

Actuator Maintenance: Clean, lubricate, and repair actuators to maintain their responsiveness.

3. Cleaning and Lubrication

Remove debris and deposits from valve components to prevent operational inefficiencies.

Use appropriate lubricants to reduce wear and enhance the lifespan of moving parts.

Troubleshooting Common Issues

When problems arise, timely identification and resolution are critical to maintaining valve performance.

Common Problems and Solutions

1. Leakage Around Packing

Cause: Worn or improperly installed packing.

Solution: Replace the packing material and ensure proper installation.

2. Sluggish Valve Operation

Cause: Contamination, insufficient lubrication, or actuator issues.

Solution: Clean the valve, apply lubrication, and inspect the actuator for damage.

3. Noisy Operation

Cause: Cavitation or improper cage design.

Solution: Upgrade to a multi-hole or labyrinth cage to reduce noise and prevent cavitation.

4. Actuator Malfunction

Cause: Air leaks, signal issues, or mechanical failure.

Solution: Repair or replace damaged components and recalibrate the actuator.

Technological Advancements in Cage-Guided Control Valves

Innovations in design and materials have enhanced the performance, efficiency, and versatility of cage-guided control valves:

1. Smart Positioners

Digital positioners provide precise control and real-time feedback, allowing operators to monitor valve performance remotely. These devices facilitate predictive maintenance by detecting potential issues before they impact operations.

2. Advanced Materials

High-performance alloys and corrosion-resistant coatings extend the valve’s lifespan and enable its use in extreme environments.

3. Noise Control Technology

Enhanced cage designs, such as multi-stage or labyrinth configurations, further reduce noise and vibration.

4. Remote Monitoring and Diagnostics

Integration with IoT systems allows for continuous performance tracking, minimizing the need for on-site inspections and enabling data-driven decision-making.

Applications of Cage-Guided Control Valves

Cage-guided control valves are widely used in industries that demand precise flow regulation and robust performance:

Oil and Gas: Managing pressure and flow in pipelines and refineries.

Power Generation: Regulating steam and coolant flow in power plants.

Chemical Processing: Controlling the flow of aggressive or high-temperature chemicals.

Water Treatment: Ensuring efficient flow control in filtration and distribution systems.

Conclusion

Cage-guided control valves are essential for achieving precise and reliable flow regulation in industrial processes. Their balanced design, customizable flow characteristics, and ease of maintenance make them a preferred choice for demanding applications. With advancements in technology and materials, these valves continue to set new benchmarks in performance and efficiency.

By adopting regular inspection, proactive maintenance, and leveraging modern innovations, industries can maximize the lifespan and reliability of cage-guided control valves, ensuring uninterrupted operations and optimal process control.
