Introduction

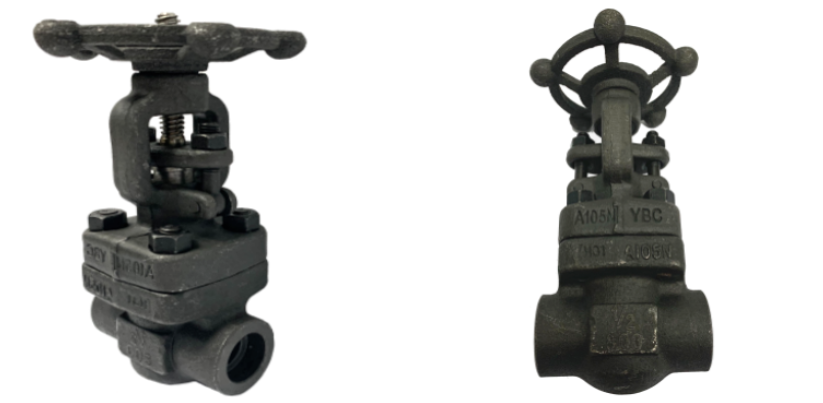

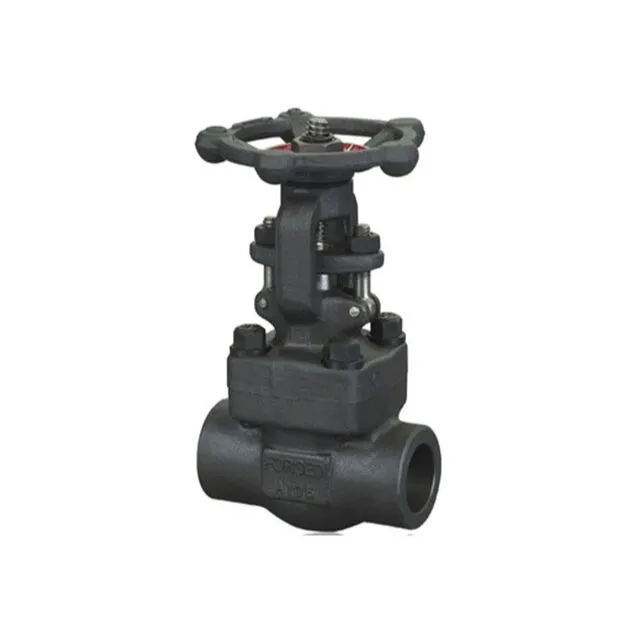

Forged steel gate valves are essential components in various industrial systems, prized for their superior strength, durability, and leak-proof performance. Manufactured from solid blocks of steel that are heated and forged into precise shapes, these valves are significantly denser and stronger than their cast or welded counterparts. The hallmark of these valves is their gate—a wedge-shaped or rectangular disk that ensures a reliable seal. The gate moves within the valve body, either fully retracting to allow unobstructed flow or sealing tightly to prevent leaks under extreme pressure. This unique construction and functionality make forged steel gate valves indispensable in critical applications across numerous industries.
The Manufacturing Process
The name “forged steel gate valve” reveals its key material—steel that is shaped through a forging process. This manufacturing method involves:
1. Heating Steel Blocks
Solid steel is heated to high temperatures to enhance its malleability.
2. Forging
The heated steel is hammered or pressed into shape using specialized equipment. This results in a dense, non-porous material with excellent mechanical properties.
3. Machining
Once forged, the valve body and components are precisely machined to meet strict dimensional tolerances.
4. Assembly
All components, including the gate, stem, and handwheel, are assembled to ensure seamless operation.
This process produces a valve that can withstand high-pressure environments, extreme temperatures, and the rigors of industrial applications.
Key Features of Forged Steel Gate Valves
1. Exceptional Strength and Durability
Forged steel’s dense, non-porous structure ensures high resistance to wear, pressure, and temperature fluctuations, making these valves suitable for demanding environments.
2. Reliable Sealing
The gate design provides a bubble-tight seal, preventing leaks even under high-pressure differentials.
3. Smooth Flow Path
When fully open, the gate retracts entirely, allowing for unobstructed fluid flow with minimal turbulence and pressure loss.
4. Compact and Robust Design
Forged steel gate valves are compact yet robust, making them ideal for installations where space is limited.
5. Wide Range of Options
Available in various sizes and pressure ratings, forged steel gate valves can be customized to suit specific industrial needs.
Applications of Forged Steel Gate Valves
Forged steel gate valves find applications across multiple industries due to their versatility and reliability.
Chemical Processing
Used to handle corrosive and hazardous fluids, these valves ensure safe and efficient flow control.
Oil and Gas Industry
Essential for managing crude oil and natural gas pipelines, especially in high-pressure and high-temperature conditions.
Power Generation
Used in steam circuits of power plants to regulate high-temperature and high-pressure steam flow.
Water Supply Systems
Employed in municipal water supply pipelines to ensure reliable and efficient operation.
Marine Industry
Found in steam circuits aboard ships, these valves provide durability and reliability in harsh marine environments.
Common Issues and Troubleshooting
While forged steel gate valves are designed for durability, regular maintenance and troubleshooting are essential to ensure optimal performance. Below are common issues, their causes, and recommended solutions:
1. Difficulty in Operation
Cause: Foreign materials lodged between the gland flange and stem.
Solution: Disassemble the valve and clean it as per manufacturer guidelines.
Cause: Over-torqued gland bolts.
Solution: Loosen the bolts to allow smoother operation.
Cause: Misaligned gland flange.
Solution: Re-align the flange to ensure proper alignment.
2. Fluid Leakage Between the Body and Pipe
Cause: Loose flange bolts.
Solution: Tighten the bolts securely.
Cause: Worn-out gasket.
Solution: Replace the gasket with a manufacturer-approved one.
Cause: Excessive pipe pressure.
Solution: Reduce the pressure or use a valve with a higher pressure rating.
3. Leakage Between the Body and Bonnet
Cause: Loose bolts.
Solution: Tighten the bolts to secure the connection.
Cause: Damaged gasket.
Solution: Replace the gasket with a compatible one.
4. Leakage Through the Valve Stem
Cause: Worn-out packing.
Solution: Replace the packing material.
Cause: Damaged stem.
Solution: Replace the stem to restore functionality.
5. Incomplete Valve Operation
Cause: Foreign materials obstructing the valve.
Solution: Open the valve and remove debris.
Cause: Worn-out valve seats.
Solution: Replace the valve seats.
Benefits of Forged Steel Gate Valves
Reliability in Harsh Conditions
These valves excel in environments where temperature and pressure reach extreme levels.
Low Maintenance Requirements
Their robust construction minimizes maintenance needs, reducing downtime and costs.
Precision Control
The gate’s design allows for precise flow regulation, ensuring optimal system performance.
Long Service Life
Forged steel gate valves are built to last, offering years of reliable operation.
Cost-Effectiveness
While the initial investment may be higher than other valve types, the extended service life and reduced maintenance costs make these valves a cost-effective choice in the long run.
Innovations in Forged Steel Gate Valve Technology
Advancements in material science and manufacturing techniques have led to significant improvements in forged steel gate valve design and performance. Modern innovations include:
Enhanced Corrosion Resistance
Coatings and surface treatments to withstand aggressive media.
Improved Sealing Technology
Advanced seat designs for superior leak prevention.
Smart Valves
Integration with digital monitoring systems for real-time performance tracking and remote operation.
Customization Options
Valves tailored to specific industry needs, such as cryogenic or high-temperature applications.
Maintenance Tips for Longevity
To maximize the lifespan of forged steel gate valves:
Regular Inspections
Periodically check for leaks, wear, and damage.
Lubrication
Ensure smooth operation by lubricating moving parts.
Replace Damaged Components
Promptly replace worn-out gaskets, packings, or stems.
Monitor Operating Conditions
Ensure the valve operates within its rated pressure and temperature limits.
Follow Manufacturer Guidelines
Adhere to installation and maintenance instructions for optimal performance.
Conclusion
Forged steel gate valves are a cornerstone of industrial systems, combining exceptional strength, durability, and reliable performance. Their ability to handle extreme conditions makes them indispensable in industries such as oil and gas, chemical processing, and power generation. With proper maintenance and the adoption of modern innovations, these valves continue to set the standard for high-performance flow control.
Investing in forged steel gate valves ensures not only the integrity of critical systems but also the safety and efficiency of operations.
