Butterfly valves are essential components in modern pipeline systems, providing efficient flow regulation and isolation for liquids, gases, and slurries. Their compact design, ease of operation, and cost-effectiveness make them widely used across industries such as water treatment, chemical processing, power generation, and firefighting systems. However, their longevity and performance depend significantly on proper installation and maintenance. This comprehensive guide explores butterfly valve types, pre-installation considerations, step-by-step installation procedures, and essential maintenance practices to ensure optimal operation and durability.
A butterfly valve is a quarter-turn rotational motion valve designed to regulate or stop fluid flow within a pipeline. It consists of a circular disc or vane mounted on a rotating shaft. When fully open, the disc aligns parallel to the flow, allowing fluid to pass through with minimal resistance. When closed, the disc rotates perpendicular to the flow, effectively blocking passage.
Butterfly valves are versatile and commonly used in various industries, including:
Water Supply and Wastewater Treatment: Controlling water and sewage flow in municipal and industrial facilities.
Chemical Processing: Handling aggressive chemicals and hazardous fluids.
Power Generation: Regulating cooling water, steam, and other fluids in power plants.
Fire Protection Systems: Managing water supply for firefighting networks.
Oil and Gas Industry: Controlling fuel flow in refineries, pipelines, and storage tanks.
Marine Applications: Managing fluid flow on ships and offshore platforms.
HVAC Systems: Regulating airflow in heating, ventilation, and air conditioning setups.
Butterfly valves are available in different body designs, with each type offering unique advantages depending on application requirements.

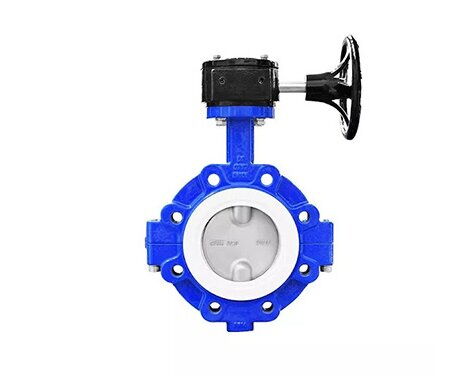

Lug-type butterfly valves feature threaded inserts (lugs) surrounding the valve body, enabling them to be bolted directly to pipeline flanges. This design allows for installation or removal without disturbing the entire piping system, making them ideal for systems requiring end-to-end isolation, such as water supply and fire protection networks.
Wafer-type butterfly valves are designed to fit between two pipe flanges and are secured using bolts passing through the flanges. Unlike lug-type valves, wafer-type valves do not provide complete isolation, meaning pipeline sections must be shut down before removal. They are lightweight, cost-effective, and well-suited for confined spaces.
Ensuring proper preparation before installation is critical to prevent potential issues. Key considerations include:
Proper pipeline alignment prevents stress on the valve, ensuring smooth operation and preventing leaks or premature failure.
Ensure that the gap between pipe flanges is adequate for inserting the valve without forcing it into place. Excessive force can damage the valve body or dislodge the liner. If necessary, use a spreader tool to widen the flange gap.
Before installation, keep the valve disc slightly open but within the valve body to prevent interference with pipe flanges during positioning.
Avoid using additional gaskets or applying grease on the valve body face, as this may interfere with sealing performance. However, lubricating bolts can aid in installation.
Follow manufacturer recommendations for bolt length. Incorrect bolt lengths can either damage the valve lugs (if too long) or provide insufficient clamping force (if too short), leading to leaks.
Step-by-Step Installation:
Align the butterfly valve between the pipeline flanges, ensuring proper centering.
Start by inserting bolts into the top flange holes to stabilize the valve.
Insert bolts into the bottom flange holes for additional support.
Insert the remaining bolts into the side holes to fully secure the valve.
Gradually tighten the bolts in a crosswise pattern to distribute pressure evenly and prevent warping.
Rotate the disc from fully open to fully closed to ensure smooth operation.
Routine maintenance is essential to extend the lifespan of butterfly valves and prevent operational failures.
If the valve is not frequently used, operate it at least once a month to prevent the disc from sticking to the seat.
Before conducting maintenance, relieve system pressure to ensure safety and prevent accidental fluid discharge.
To remove the valve, reverse the installation steps. Ensure the pipeline is fully depressurized, particularly for wafer-type valves.
If the valve seat (liner) is worn or damaged, follow these steps:
Remove the valve stem and disc.
Extract the old liner and insert a new one.
Reassemble the valve and reinstall it following the standard installation sequence.
For butterfly valves operating in dry environments (e.g., compressed air systems), periodic lubrication of the disc and seat helps reduce friction and extend service life.
Refer to manufacturer guidelines or video tutorials for detailed operational checks and troubleshooting.
Possible Cause: Improper installation, misaligned flanges, or worn-out seat.
Solution: Reinstall the valve with proper alignment and replace the seat if necessary.
Possible Cause: Buildup of debris, lack of lubrication, or damaged actuator.
Solution: Clean the valve internals, lubricate moving parts, or inspect the actuator.
Possible Cause: Partial disc obstruction due to sediment or improper installation.
Solution: Remove and clean the valve; ensure full disc rotation.
Possible Cause: Exposure to aggressive chemicals or high temperatures beyond valve specifications.
Solution: Select a valve with compatible materials for the application (e.g., stainless steel or special coatings for chemical resistance).
When butterfly valves are not immediately installed, proper storage is crucial to prevent damage. Store valves in a clean, dry environment, away from direct sunlight and corrosive elements. Keep them in their original packaging and avoid stacking them to prevent deformation.
For automated systems, selecting the right actuator for the butterfly valve is essential. Ensure compatibility in terms of torque requirements and mounting interfaces. Periodically check actuator performance and recalibrate if necessary to maintain efficiency.
Advanced industries use condition monitoring and predictive maintenance strategies to detect potential valve failures before they occur. Technologies such as vibration analysis, thermal imaging, and acoustic emissions can help identify early signs of wear or malfunction, allowing for proactive maintenance.
Butterfly valves play a vital role in fluid handling systems, offering reliable flow control and shutoff capabilities. Ensuring proper installation and regular maintenance is crucial for their long-term performance and efficiency. By following the recommended installation guidelines, maintenance procedures, and troubleshooting techniques outlined in this guide, industries can maximize the durability and reliability of butterfly valves in their operations. Whether in water treatment, chemical processing, or industrial applications, well-maintained butterfly valves contribute to the smooth and efficient functioning of pipeline systems.
