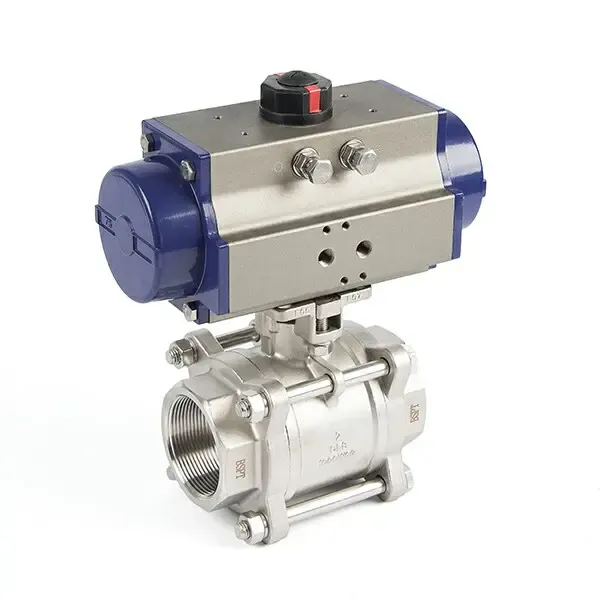

A pneumatic ball valve is a type of valve that uses compressed air to control the flow of fluids through a pipeline. It operates using a spherical disc, known as the ball, which has a hole drilled through its center. When the valve is open, the hole aligns with the flow direction, allowing fluid to pass through. When closed, the ball rotates to block the flow, effectively stopping the fluid. This simple yet efficient mechanism makes pneumatic ball valves a popular choice in various industrial applications.
Pneumatic ball valves are widely used in industries such as petroleum, chemical, pharmaceutical, paper manufacturing, and light industry. They are primarily used to cut off or connect the flow of media in pipelines and can also regulate and control fluid flow. Compared to other valve types, pneumatic ball valves offer unique advantages, including quick operation, reliability, and versatility. Below, we explore the key features, benefits, and applications of pneumatic ball valves in detail.
Pneumatic ball valves are known for their low fluid resistance, which is the smallest among all valve types. This feature ensures efficient fluid flow with minimal energy loss, making them ideal for applications where energy efficiency is critical.
The inclusion of a thrust bearing in the valve design reduces friction on the valve stem, ensuring smooth and flexible operation. This not only enhances the valve's performance but also extends its lifespan, even under continuous use.
The valve seats in pneumatic ball valves are designed with materials like PTFE (polytetrafluoroethylene), which provide excellent sealing properties. The sealing capacity improves as the pressure of the medium increases, ensuring a tight seal even under high-pressure conditions.
The valve stem in a pneumatic ball valve is designed to perform rotational movements only, reducing wear and tear on the packing seal. This design ensures that the valve stem remains reliable and leak-free, even as the medium pressure increases.
Materials like PTFE used in pneumatic ball valves have self-lubricating properties, which minimize friction between the ball and other components. This reduces wear and tear, significantly extending the valve's service life and making it a cost-effective solution for long-term use.
Pneumatic ball valves are equipped with safety mechanisms to prevent accidents. For example, the bottom-mounted valve stem and the convex step on the valve stem head prevent the stem from ejecting. In case of fire or seal damage, these features ensure the valve remains secure and functional.
To address the issue of static electricity buildup, pneumatic ball valves are designed with a spring between the ball, valve stem, and valve body. This spring discharges any static electricity generated during operation, reducing the risk of static-related hazards.
Pneumatic ball valves offer several advantages over other types of valves, making them a preferred choice in many industries. These advantages include:
Pneumatic ball valves can open and close rapidly, making them ideal for applications requiring fast response times.
Their robust design and high-quality materials ensure consistent performance even in demanding conditions.
These valves can handle a wide range of fluids, including gases, liquids, and corrosive media.
The self-lubricating materials and durable construction reduce the need for frequent maintenance.
The low fluid resistance and efficient operation help save energy in industrial processes.
Pneumatic ball valves are used in a variety of industries due to their versatility and reliability. Some of the key applications include:
In the petroleum sector, pneumatic ball valves are used to control the flow of crude oil, refined products, and natural gas. Their ability to operate under high pressure and handle corrosive materials makes them ideal for this industry.
The chemical industry often deals with hazardous and corrosive substances. Pneumatic ball valves, with their excellent sealing properties and resistance to corrosion, are well-suited for controlling the flow of such materials.
In pharmaceutical manufacturing, precise control of fluid flow is essential to ensure product quality and safety. Pneumatic ball valves provide the accuracy and reliability needed in this highly regulated industry.
Pneumatic ball valves are used in paper manufacturing to control the flow of liquids and chemicals during the production process. Their durability and low maintenance requirements make them a cost-effective choice for this industry.
In light industries, pneumatic ball valves are used in various manufacturing processes where efficient and reliable fluid control is required. Their quick operation and versatility make them a popular choice in these applications.
The operation of a pneumatic ball valve is relatively straightforward. When compressed air is supplied to the valve actuator, it causes the ball to rotate. In the open position, the hole in the ball aligns with the flow direction, allowing fluid to pass through. When the valve is closed, the ball rotates 90 degrees, blocking the flow. This simple mechanism allows for quick and precise control of fluid flow.
The pneumatic actuator, which is the driving force behind the valve's operation, can be designed for either single-acting or double-acting operation. Single-acting actuators use a spring to return the valve to its default position, while double-acting actuators use compressed air for both opening and closing the valve.
When selecting a pneumatic ball valve for a specific application, several factors should be considered:
The valve material should be compatible with the medium being controlled. For example, stainless steel valves are ideal for corrosive fluids, while brass valves are suitable for water and gas applications.
The valve size should match the pipeline dimensions to ensure proper flow control.
The valve must be able to withstand the pressure of the medium in the pipeline.
The valve materials should be able to handle the temperature of the fluid.
Choose between single-acting and double-acting actuators based on the application requirements.
Pneumatic ball valves are an essential component in many industrial processes, offering a combination of efficiency, reliability, and versatility. Their unique features, such as minimal fluid resistance, excellent sealing performance, and long service life, make them a preferred choice in industries like petroleum, chemical, pharmaceutical, and paper manufacturing. By understanding the advantages and applications of pneumatic ball valves, industries can make informed decisions when selecting valves for their specific needs. Whether it's controlling the flow of hazardous chemicals or ensuring precise fluid regulation in pharmaceutical production, pneumatic ball valves provide a reliable and efficient solution.
