Introduction
Ball valves are among the most widely used valve types across industries due to their simple operation, durability, and excellent sealing capabilities. However, selecting the right ball valve for a specific project is not always straightforward. From variations in design and bore size to material compatibility and operational environment, a range of factors must be carefully considered to ensure long-term performance and reliability.
This guide provides a detailed overview of the main types of ball valves, their functional characteristics, and practical tips to help you avoid common mistakes when choosing the right valve for your system.
Understanding Ball Valve Design

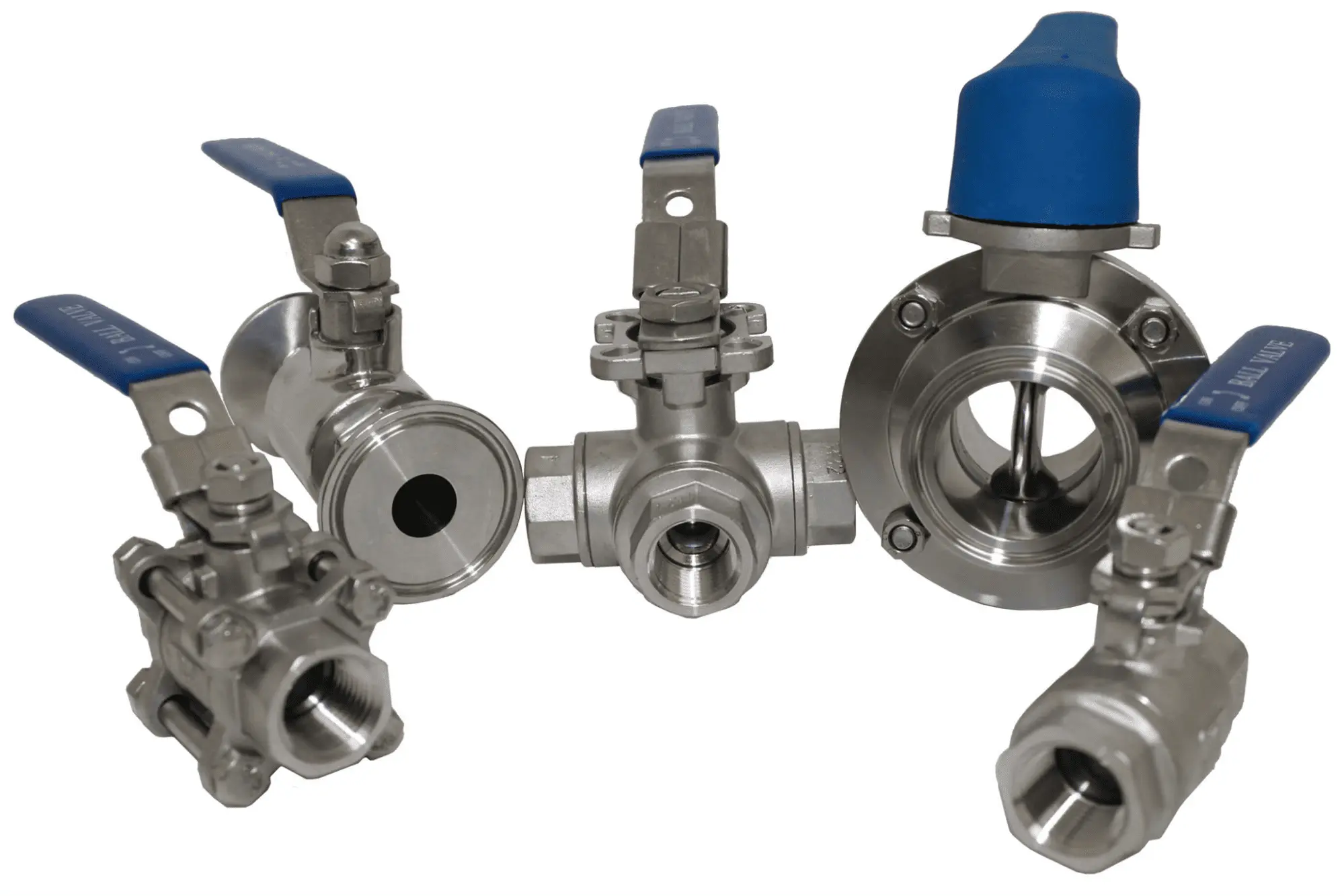

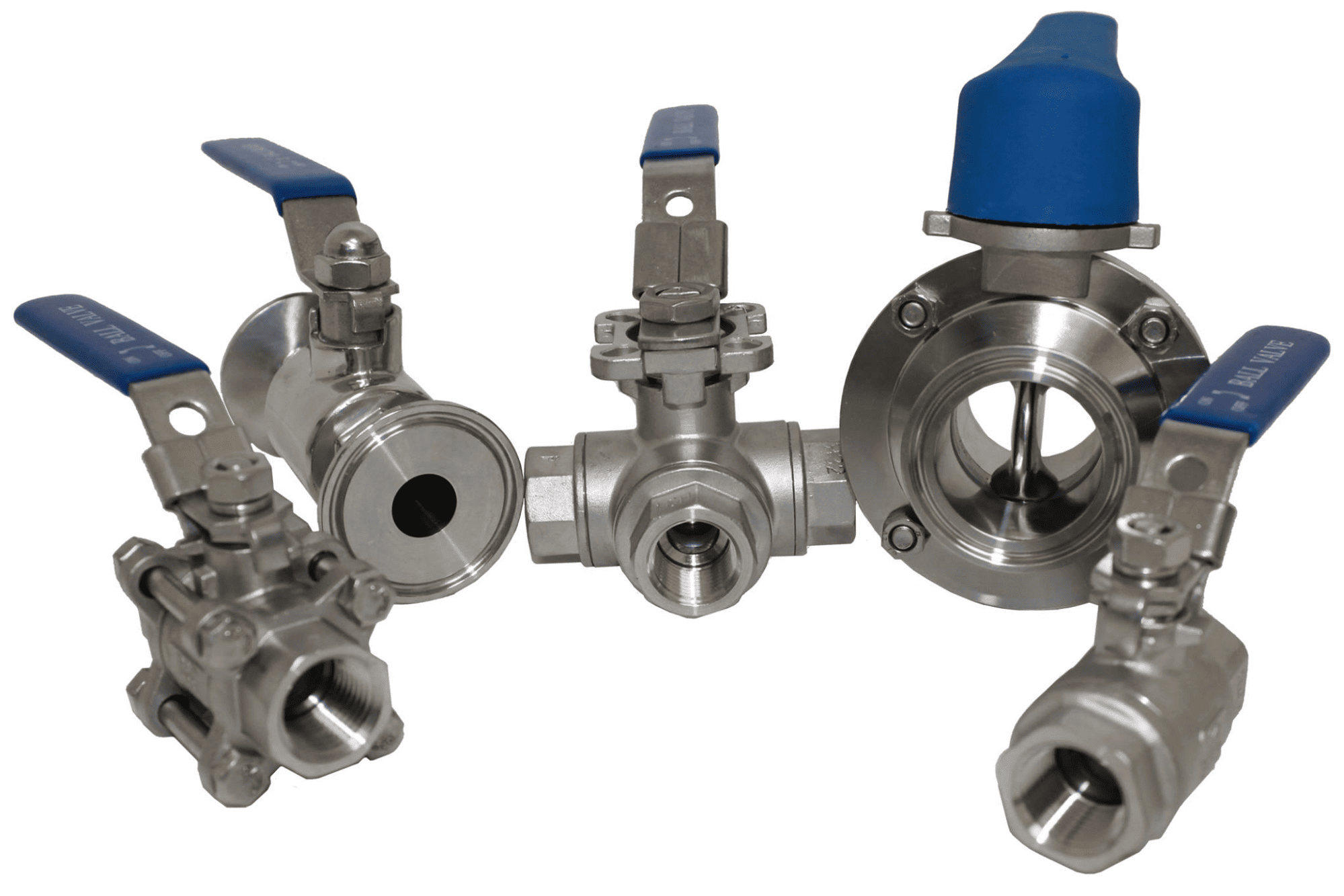

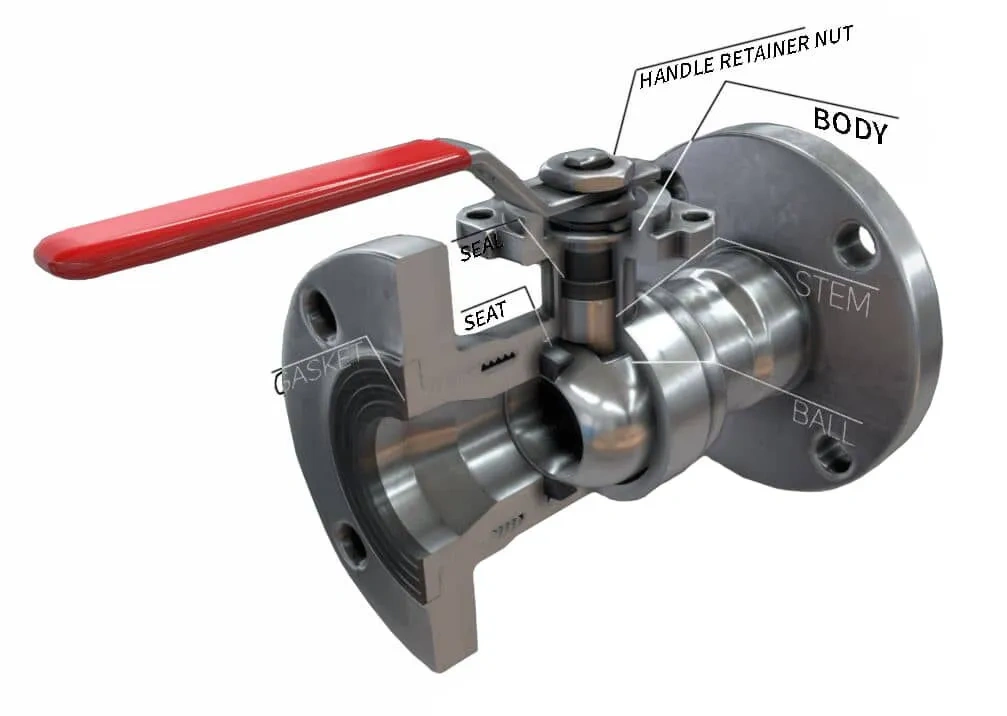

Ball valves regulate flow by means of a rotary ball with a bore that aligns or blocks the fluid path as it turns. The basic construction consists of a ball, valve seats, stem, and housing. The two most common design types are the floating ball and the trunnion-mounted ball.
1. Floating Ball Design
The floating ball is the standard design in most ball valves. In this configuration, the ball is not fixed but instead held in place by two elastomeric or metallic seats. As pressure is applied, the ball is pushed against the downstream seat, creating a tight seal.
Key Features:
Common in small to medium-sized valves.
Cost-effective and suitable for moderate pressure applications.
Provides excellent sealing performance for clean or mildly contaminated fluids.
2. Trunnion-Mounted Ball Design
For larger diameters and high-pressure systems, the trunnion-mounted ball valve is preferred. Here, the ball is supported at both the top and bottom with trunnion shafts that absorb system pressure and reduce stress on the valve seats.
Advantages:
Reduced torque requirements for operation.
Improved sealing under high-pressure conditions.
Ideal for pipelines with diameters greater than DN100 and pressures exceeding 30 bar.
Choosing the Right Bore Type
The internal bore of the valve plays a significant role in flow characteristics, pressure drop, and system maintenance. Ball valves typically come in three bore profiles: reduced bore, full bore, and V-shaped bore.
1. Reduced Bore (Standard Port)
This is the most commonly used bore type in standard ball valves. The internal diameter of the ball is smaller than the pipe diameter, which results in minor pressure losses.
When to Choose:
For general-purpose applications where minor friction losses are acceptable.
In systems where compact valve size and cost-effectiveness are prioritized.
2. Full Bore (Full Port)
In full bore valves, the internal diameter matches that of the pipeline, allowing unrestricted flow. This design minimizes pressure loss and facilitates easy passage for cleaning tools (pigging).
Advantages:
Ideal for applications requiring minimal flow resistance.
Preferred in pipeline systems where pigging is necessary.
Slightly higher cost due to larger body and ball size.
3. V-Port Bore
V-port or V-shaped ball valves have a specially shaped bore or seat to allow for precise flow control. As the ball rotates, the 'V' shape enables gradual flow changes, mimicking a linear flow characteristic.
Use Cases:
Applications requiring modulating control or flow throttling.
Situations where precise flow rate adjustments are critical.
Material Selection Matters
Choosing the right material for a ball valve is essential for ensuring chemical compatibility, durability, and temperature resistance.
1. Body Materials
Stainless Steel: Excellent corrosion resistance, ideal for aggressive media, food-grade applications, and high temperatures.
Carbon Steel: Cost-effective and strong; suitable for oil, gas, and steam systems, but less corrosion-resistant.
Brass: Affordable and widely used in water and HVAC systems.
PVC/Plastic: Lightweight and corrosion-resistant; suitable for low-pressure, non-abrasive applications.
2. Seat Materials
PTFE (Teflon): Chemically resistant and low-friction; suitable for a wide temperature range.
RPTFE: Reinforced PTFE for better wear resistance and stability.
Metal Seats: Used in high-temperature or abrasive services.
Actuation Options: Manual vs. Automated
Ball valves can be operated manually using a lever handle or automatically with electric, pneumatic, or hydraulic actuators.
Manual Valves: Simple, cost-effective, and suitable for low-cycle applications.
Electric Actuators: Precise and programmable control; used in remote or automated systems.
Pneumatic Actuators: Fast operation, ideal for high-cycle systems and hazardous environments.
Hydraulic Actuators: Suitable for high-force applications where compressed air or electricity is not feasible.
Critical Factors to Consider When Selecting a Ball Valve
Choosing the correct valve requires attention to multiple technical and environmental factors. Below are some of the most important considerations:
1. Correct Sizing
One of the most common mistakes is improper valve sizing. Always match the valve size to the pipeline diameter and required flow rate. Undersized valves can restrict flow and increase pressure drop, while oversized valves may lead to higher costs and inefficiencies.
2. Pressure Rating
Check the valve's pressure rating to ensure it exceeds the maximum operating pressure of your system. This ensures both safety and durability, particularly in high-pressure installations.
3. Temperature Limits
Every valve has a defined temperature range depending on the materials used. Make sure the chosen valve can withstand the operating temperature of the fluid without compromising performance.
4. Media Compatibility
Fluids with abrasive particles, corrosive chemicals, or high viscosity can damage standard valves. Choose materials that are chemically compatible and mechanically suitable for the type of media being handled.
5. Operating Environment
Environmental conditions such as extreme temperatures, humidity, exposure to corrosive substances, or explosion risk zones should influence the selection of valve materials, sealing type, and actuation method.
6. Maintenance Requirements
Some ball valves are designed for maintenance-free operation, while others may require periodic servicing. Consider the valve’s lifecycle costs, ease of disassembly, and availability of spare parts when making your selection.
Common Mistakes to Avoid
Even experienced professionals can overlook important aspects during valve selection. Avoid these common pitfalls:
Neglecting proper sizing: Always consult flow calculations to match valve and pipeline sizes.
Overlooking material compatibility: The wrong material can result in corrosion, leakage, or premature valve failure.
Ignoring environmental factors: External conditions can significantly impact valve lifespan and performance.
Failing to consider long-term maintenance: Some valves may be cheaper upfront but more costly over time due to frequent maintenance needs.
Skipping pressure rating assessment: Using a valve below the system’s pressure rating is a safety hazard.
Application-Specific Considerations
Different industries have specific demands that may affect your valve choice:
Oil & Gas: High-pressure trunnion ball valves made from carbon steel or stainless steel.
Chemical Processing: Valves with corrosion-resistant alloys and PTFE seats.
Food & Beverage: Sanitary stainless steel valves with full bore design.
Water Treatment: PVC or brass valves for non-aggressive fluids.
Power Generation: High-temperature metal-seated ball valves.
Final Thoughts
Selecting the right ball valve is crucial to the success of any fluid control system. A well-chosen valve ensures efficient flow control, system safety, and cost-effectiveness over time. By understanding the fundamental design types—floating vs. trunnion, reduced vs. full vs. V-port—and carefully evaluating factors like material compatibility, pressure rating, and environmental conditions, you can avoid common mistakes and choose the best valve for your specific application.
Remember, a small oversight in valve selection can lead to big problems down the line. Taking the time to analyze your system requirements, consult with manufacturers, and prioritize quality over cost will help ensure reliable operation and long-term value.
