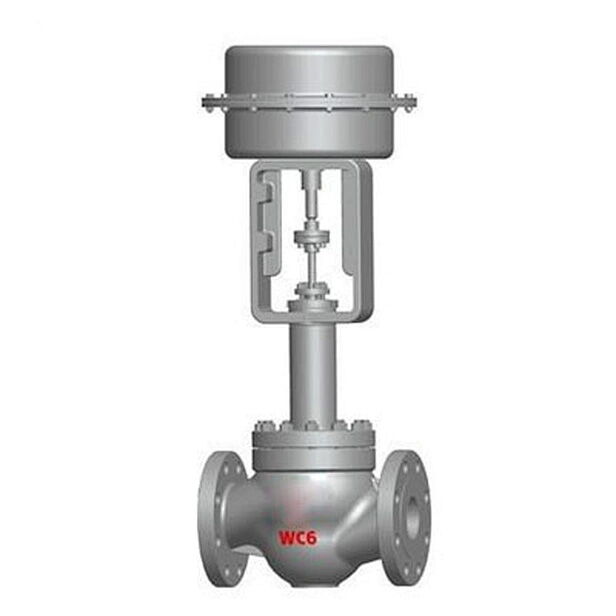

Multi-stage Depress Pressure Control Valve, WC6, 1-1/2-12 IN
Key Specifications / Features
Model No.: Hits: 2
The multi-stage depress pressure control valve plant features sizes ranging from 1-1/2 to 12 inches, suitable for Class 150 to 2500 LB applications. Constructed from ASTM A217 WC6 material, it includes RF end connections and is operated by a pneumatic diaphragm actuator. Available in both full and reduced bore configurations.
Request a quoteTags
Detail Information
Product Name: Multi-stage Depress Pressure Control Valve
Size: 1-1/2-12 Inch, DN40-DN300
Pressure rating: Class 150-2500 LB, PN20-PN420
Body material: Carbon Steel, Stainless Steel, Alloy Steel ASTM A217 WC6, Duplex Steel
End connection: RF
Operation: Pneumatic diaphragm actuator, PCL pneumatic piston actuator, Electric actuator
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL
Feature:
• The multi-stage cage structure is used to reduce pressure.
• Features include an S-shaped passageway and a high coefficient of flow (Cv).
• The valve plug is designed with a balanced structure, making this pressure-independent control valve primarily suitable for high-pressure compressible fluid or two-phase applications.
• It effectively controls erosion, vibration, and high noise conditions, making it an ideal choice for high-pressure, high-temperature, flashing hydrocarbon liquid services.
• Typical applications of this design range from hot high-pressure separator control in hydroprocessing applications to offshore choke valves for gas wellheads, as well as a reliable solution for high-pressure gas letdown with entrained debris.
Size: 1-1/2-12 Inch, DN40-DN300
Pressure rating: Class 150-2500 LB, PN20-PN420
Body material: Carbon Steel, Stainless Steel, Alloy Steel ASTM A217 WC6, Duplex Steel
End connection: RF
Operation: Pneumatic diaphragm actuator, PCL pneumatic piston actuator, Electric actuator
Bore: Full Bore and Reduced Bore
Certificate: CE/PED, ISO, ATEX, SIL
Feature:
• The multi-stage cage structure is used to reduce pressure.
• Features include an S-shaped passageway and a high coefficient of flow (Cv).
• The valve plug is designed with a balanced structure, making this pressure-independent control valve primarily suitable for high-pressure compressible fluid or two-phase applications.
• It effectively controls erosion, vibration, and high noise conditions, making it an ideal choice for high-pressure, high-temperature, flashing hydrocarbon liquid services.
• Typical applications of this design range from hot high-pressure separator control in hydroprocessing applications to offshore choke valves for gas wellheads, as well as a reliable solution for high-pressure gas letdown with entrained debris.
