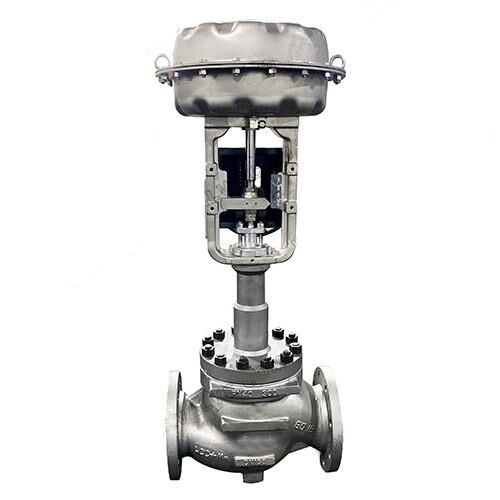

Pilot Operated Control Valve, ASTM A216 WCC, 1-1/2-24 Inch

Pilot Operated Control Valve, ASTM A216 WCC, 1-1/2-24 Inch

Key Specifications / Features

Model No.: Hits: 1

Our pilot-operated control valves are expertly fabricated from ASTM A216 WCC material, ensuring strength and durability. Available in sizes ranging from 1-1/2 to 24 inches and pressure ratings from 150 to 2500 LB, these valves feature a fin-extension bonnet for enhanced performance. With options for flanged or welded ends, they are suitable for DN40 to DN600 applications and PN16 to PN420 pressure classes. Trust our pilot-operated control valves for precise fluid control and reliable operation in a variety of industrial settings.

Request a quote

Detail Information

Products Name: Pilot Operated Control Valve
Size: 1-1/2 - 24 Inch, DN40-DN600
Pressure: Class 150-2500 LB, PN16-PN420
Material: Carbon Steel, ASTM A216 WCC
End: Flanged (RF, RTJ), Butt Weld, Socket Weld.
Temperature Range: -196°C-550°C
Seat Leakage: ANSI Ⅴ (No visible leakage)
Bonnet Type: Fin-Extension


Design:
• Pilot Balancing: The pilot balanced Cage Guided Control Valve features a separate pressure balanced pilot plug, offering improved control compared to traditional cage control valves.
• Dual Closure Mechanism: The main plug is sealed tightly by the combined forces of the actuator and the unbalanced fluid pressure, while the pilot plug is sealed by the actuator's output and spring force.
• Pressure Balance Requirement: The flow capacity in the pilot plug channel must exceed that of the guided ring and plug-cage gap to ensure pressure balance and proper valve operation.
• Controlled Pilot Opening: The pilot plug opening is restricted to 10% of the valve opening to maintain precise control over the valve's small flow range.
• Compact Design: Offers a small footprint, compact structure, and excellent sealing capabilities.
• High Shut-Off Performance: Designed for long service life and high shut-off capabilities, suitable for evacuation and shut-off applications, particularly in high-temperature, high-pressure, and large-valve scenarios.

Advantages:
• Enhanced Sealing: In high-temperature and high-pressure differential environments, even minor seat leakage can lead to cavitation and damage to the valve trim. The pilot balanced cage guided Single Seated Control Valve ensures complete sealing, preventing long-term erosion. By leveraging the unbalanced force from the flow pressure difference, the required actuator size can be reduced while improving sealing performance, enhancing the product's competitiveness.
