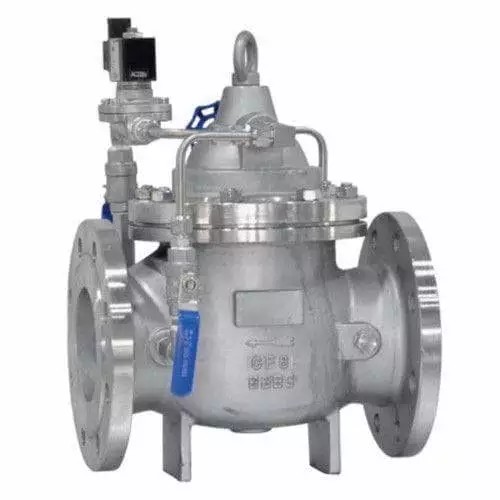

Hydraulic Electric Control Valve, ASTM A351 CF8, DN500, PN16
Key Specifications / Features
Model No.: WV-240108-CTV-12 Hits: 2
Crafted in accordance with CJ/T 167 and CJ/T 219 standards, this high-performance control valve features a robust design with ASTM A351 CF8 construction and SS 304 Trim. With a substantial size of 20 inches (DN500) and a PN16 pressure rating (equivalent to Class 150 LB), it ensures efficient and precise control in various applications.
Request a quoteTags:
Detail Information
Product: Hydraulic electric control valve
Size: DN500
Pressure: PN16
Body: ASTM A351 CF8
Trim: SS 304
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Flange standard: GB/T 17241.6, GB/T 9124.1, GB/T 9113
Connection: RF Flange
600X hydraulic electric control valve consists of main valve, solenoid pilot valve.needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control takeover system. The remote control of the valve opening and closing can be realized through the solenoid pilot valve. The speed of opening and closing can be controlled by adding additional devices. When the valve feeds water from the inlet, the water flows through the needle valve and enters the main valve control room. When the solenoid pilot valve is opened, the water in the control room flows out through the solenoid pilot valve and ball valve. lt can replace other large-scale electric devices of valves and is widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.
Size: DN500
Pressure: PN16
Body: ASTM A351 CF8
Trim: SS 304
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Flange standard: GB/T 17241.6, GB/T 9124.1, GB/T 9113
Connection: RF Flange
600X hydraulic electric control valve consists of main valve, solenoid pilot valve.needle valve, ball valve, micro filter and pressure gauge to form a hydraulic control takeover system. The remote control of the valve opening and closing can be realized through the solenoid pilot valve. The speed of opening and closing can be controlled by adding additional devices. When the valve feeds water from the inlet, the water flows through the needle valve and enters the main valve control room. When the solenoid pilot valve is opened, the water in the control room flows out through the solenoid pilot valve and ball valve. lt can replace other large-scale electric devices of valves and is widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.
