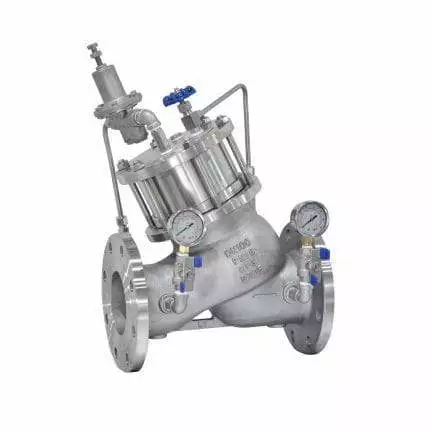

Pressure Reducing & Stabilizing Valve, A351 CF8, DN100, PN16
Detail Information
Design: CJ/T 167.
Body: ASTM A351 CF8
Nominal size: DN100.
Nominal class: PN16.
End Connection: RF flange.
Face to face: GB/T 12221, CJ/T 167
Test and inspection: GB/T 13927.
Product Range:
Body material: CF8, WCB.
Normal diameter: DN50 - DN1000
End connection: Flanged.
Pressure range: PN16 - PN25.
Working temperature: ≤80℃.
Technical parameters and characteristics
Piston-type adjustable pressure-reducing and stabilizing valve
F745X diaphragm remote control float valve is a hydraulic operated valve with multiple functions. It is mainly installed at the water inlet of the pool or overhead water tower. When the water level reaches the set height, the main valve is controlled by the float valve to close the water inlet and stop the water supply; When the water level drops, the main valve is controlled by the floating ball pilot valve to open the water inlet to inject water into the pool so as to realize automatic water replenishment. The liquid level control is accurate and free from water pressure interference; The diaphragm-type remote control float valve can be installed at any position along with the height and use space of the pool. It is convenient for maintenance, commissioning and inspection reliable sealing and long service life. The diaphragm valve has reliable, performance, high strength and balanced action.
Body: ASTM A351 CF8
Nominal size: DN100.
Nominal class: PN16.
End Connection: RF flange.
Face to face: GB/T 12221, CJ/T 167
Test and inspection: GB/T 13927.
Product Range:
Body material: CF8, WCB.
Normal diameter: DN50 - DN1000
End connection: Flanged.
Pressure range: PN16 - PN25.
Working temperature: ≤80℃.
Technical parameters and characteristics
| Product | Piston-type adjustable pressure-reducing and stabilizing valve |
| Nominal diameter | DN50 - DN1000. |
| Design pressure | PN16-PN25. |
| Design standard | CJ/T167. |
| Face to face | GB/T12221. |
| Connection end | Flange. |
| Test standard | GB/T13927. |
| Application | Water, chemical properties medium similar to water. |
Piston-type adjustable pressure-reducing and stabilizing valve
F745X diaphragm remote control float valve is a hydraulic operated valve with multiple functions. It is mainly installed at the water inlet of the pool or overhead water tower. When the water level reaches the set height, the main valve is controlled by the float valve to close the water inlet and stop the water supply; When the water level drops, the main valve is controlled by the floating ball pilot valve to open the water inlet to inject water into the pool so as to realize automatic water replenishment. The liquid level control is accurate and free from water pressure interference; The diaphragm-type remote control float valve can be installed at any position along with the height and use space of the pool. It is convenient for maintenance, commissioning and inspection reliable sealing and long service life. The diaphragm valve has reliable, performance, high strength and balanced action.
