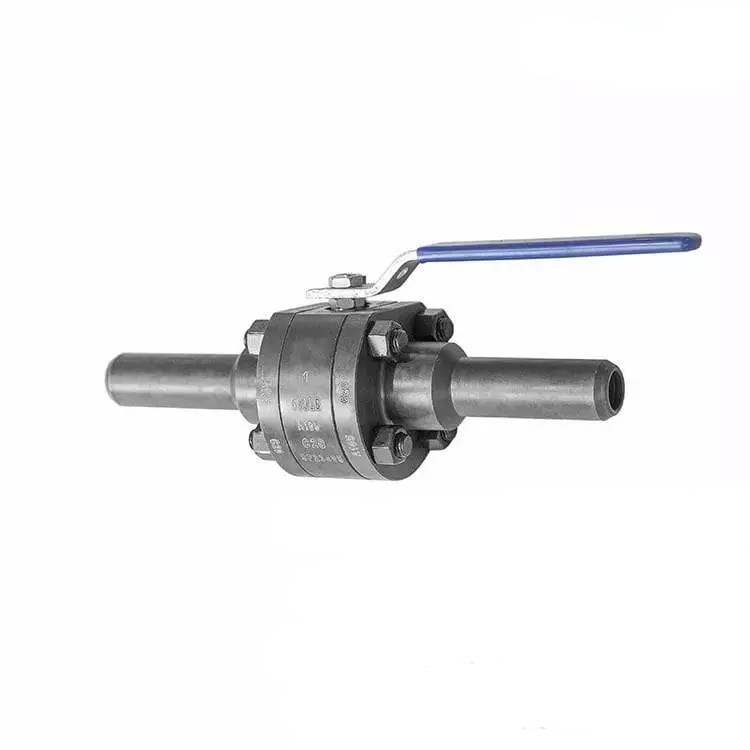

Forged Steel ASTM A105 Ball Valve, API 608, 1 Inch, 800 LB

Forged Steel ASTM A105 Ball Valve, API 608, 1 Inch, 800 LB

Key Specifications / Features

Model No.: WV-231220-FBV-09 Hits: 4

As a leading supplier, we offer Forged Steel ASTM A105 Ball Valve, characterized by a floating type design according to API 608 standards. This high-quality valve, featuring a 3-piece, side-entry configuration, ensures optimal performance in demanding applications. With a 1-inch size, Class 800 LB rating, and DN25 specifications, it guarantees reliability under pressure. The PN130 designation, coupled with nipple end connections and a gasket seal, underscores its robust construction and dependable sealing capabilities.

Request a quote

Detail Information

Name: 3 Piece Ball Valve
Standard: API 608
Size: 1 Inch, DN25
Pressure: Class 800 LB
Material: Forged Steel ASTM A105
Temperature Of Media: -29℃ To 120℃
Feature: Soft Seal, Floating Type, Side Entry

Product Range

Pressure: Class 150-2500 LB
Size: 1/4 -4 Inch, DN8-DN100
Material: Carbon Steel, Forged Steel
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: NPT, Threaded, Female, RF, RTJ, SW

Item Valve
Type Ball Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001,API
Brand VERVO
Model number Q61F-800LB
Power Manual
Port Size 1"
Structure Ball,Floating
Pressure High pressure
Temperature -46℃-200℃
Medium water, oil, steam
Connection form Flange
Body material Forged Steel A105
Seal material Gasket

Technical data
Design API 6D, ASME B16.34, ISO 14313, ISO 10423, ISO 17292
Pressures range ANSI 150-ANSI 2500,PN10-PN420
Size range DN15(1/2")-DN1200 (48")
Body Material Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, etc.
  NACE MR-01-75/NACE MR-01-03 Special Requirements
Face to face API 6D, ASME B 16.10,EN 558,DIN3202
Fanged RF, FF, RTJ Ends ASME B16.5 ≤ DN600 (24") ASME B16.47 A ≥ DN650 (26")
  BS 4504,DIN 2543-2545,EN1092
Butt-Weld BW Ends ASME B16.25 ,DIN 3239,BS 2080, EN 12627
Temperature range -29°- 425°C
Design feature
Construction One,Two or Three piece body and Welded body
Port Full bore and Reduced bore
Ball Type Floating ball and fixed ball
Stem Blowout-proof stem
Seat Sealing Front-seat sealing, Back-seat sealing, bi-directional sealing
Valve Operation Gear, pneumatic, Hydraulic, and Electric actuators.
  Bypasses, locking devices, extended stem, etc
Fire Safe API 607, BS 6755, ISO 10497-5
Other design Anti-static design, automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc
Inspection and Test
Visual Inspection MSS SP-55
Material Inspection
PMI Test----Chemical Analysis
HB Test---Hardness Test
UT---Ultrasonic Test
RT---Radio-graphic Test
MT---Magnetic Test
NDT Test Non-destructive
Dimension inspection According to drawings
Valve Inspection and Test API 598, DIN 3230, EN 12266, BS 5146
