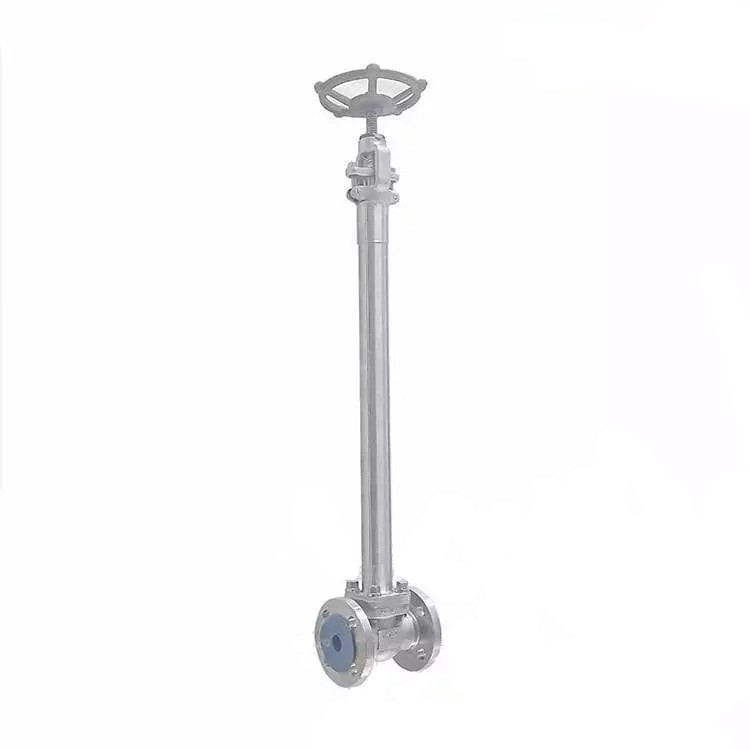

Extended Stem Gate Valve, BS 6364, ASTM A105N, 1 IN, 150 LB
Key Specifications / Features
Model No.: WV-231225-AGV-18 Hits: 1
Welcome to our Cryogenic Extended Stem Gate Valve Supplier, where precision meets reliability in valve manufacturing. Our valve, meticulously crafted from ASTM A105N material and compliant with BS 6364 standards, is designed to excel in cryogenic applications. The RF (Raised Face) Flanged design ensures secure connections, and the Gasket Seal enhances reliability in cryogenic environments.
Request a quoteTags:
Detail Information
Name: Extended Stem Forged Gate Valve
Model number: DZ41Y-150LB
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Standard: BS 6364
Body material: Stainless Steel
Seal material: Gasket
Connection form: RF Flanged
Temperature: 196℃
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Cryogenic Extended Stem Gate Valve
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE
Connection: Socket Weld, RF Flange, FNPT
Design & Manufacture: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT), ASME B16.11 (SW), ASME B16.25 (BW), ASME B16.5 (RF, RTJ)
Test & Inspection: API 598
Typical Materials: Body, Bonnet, Disc
A105, A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53, F5, F11, F22, F91, Monel, Inconel, Hastelloy, C95800, B62
Stem: A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy, C95800
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
General Introduction:
Our Gate valve belongs to shutter gate. The direction of movement of the gate is perpendicular to the direction of the flow. The gate valve can only be fully opened and fully closed, and it cannot be adjusted or throttled. The gate valve is sealed by the contact between the valve seat and the gate plate. Usually, the sealing surface will be surfaced with metal materials to increase the wear resistance, such as surfacing 1Cr13, STL6, stainless steel and so on. The gate plate has a rigid gate plate and a flexible gate plate. According to the gate plate, the gate valve is divided into a rigid gate valve and an elastic gate valve.
Model number: DZ41Y-150LB
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Standard: BS 6364
Body material: Stainless Steel
Seal material: Gasket
Connection form: RF Flanged
Temperature: 196℃
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Cryogenic Extended Stem Gate Valve
Product Range
Size: 1/4 Inch - 4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE
Connection: Socket Weld, RF Flange, FNPT
Design & Manufacture: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT), ASME B16.11 (SW), ASME B16.25 (BW), ASME B16.5 (RF, RTJ)
Test & Inspection: API 598
Typical Materials: Body, Bonnet, Disc
A105, A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53, F5, F11, F22, F91, Monel, Inconel, Hastelloy, C95800, B62
Stem: A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy, C95800
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
General Introduction:
Our Gate valve belongs to shutter gate. The direction of movement of the gate is perpendicular to the direction of the flow. The gate valve can only be fully opened and fully closed, and it cannot be adjusted or throttled. The gate valve is sealed by the contact between the valve seat and the gate plate. Usually, the sealing surface will be surfaced with metal materials to increase the wear resistance, such as surfacing 1Cr13, STL6, stainless steel and so on. The gate plate has a rigid gate plate and a flexible gate plate. According to the gate plate, the gate valve is divided into a rigid gate valve and an elastic gate valve.
