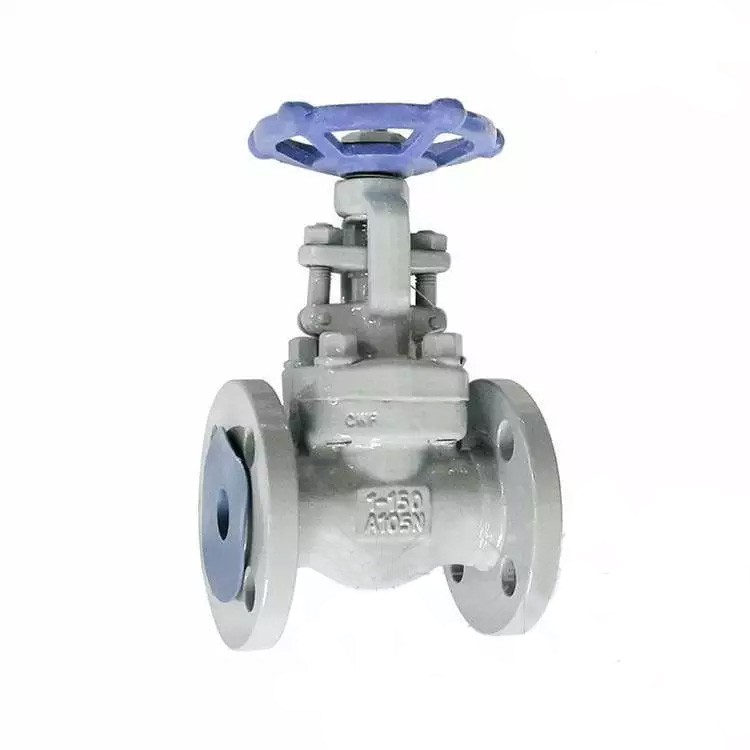

ASTM A105N Gate Valve, Bolted Bonnet, 1 Inch, 150 LB, RF End
Key Specifications / Features
Model No.: WV-231225-AGV-19 Hits: 1
As a leading Bolted Bonnet Gate Valve Manufacturer, we take pride in presenting our precision-engineered valve. Crafted to meet industry standards such as API 602 and BS 5352, our valve is designed for optimal performance. Featuring a compact 1-inch size (DN25) and a robust Class 150 LB (PN20) rating, our Bolted Bonnet Gate Valve is constructed from ASTM A105N material and equipped with a Metal Seated design for durability.
Request a quoteTags:
Detail Information
Name: Forged RF Flange Gate Valve
Model number: Z41Y-150LB-DN25
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: Forged steel ASTM A105N
Seal material: Gasket
Connection: RF Flange
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Bolted Bonnet, Metal Seated
Product Range
Size: 1/4-4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Typical Materials: Body, Bonnet, Disc A105, A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53, F5, F11, F22, F91, Monel, Inconel, Hastelloy, C95800, B62
Stem: A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy, C95800
Connection: Socket Weld, RF Flange, FNPT, RTJ Flange
Certification: CE, TS, ISO 9001, ISO 14001, ISO 18001, API
Design & Manufacture: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
Forged Steel Gate Valve
Our forged steel gate vales adopt solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of the gate.
Model number: Z41Y-150LB-DN25
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Material: Forged steel ASTM A105N
Seal material: Gasket
Connection: RF Flange
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Feature: Bolted Bonnet, Metal Seated
Product Range
Size: 1/4-4 Inch, DN8-DN100
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Typical Materials: Body, Bonnet, Disc A105, A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53, F5, F11, F22, F91, Monel, Inconel, Hastelloy, C95800, B62
Stem: A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy, C95800
Connection: Socket Weld, RF Flange, FNPT, RTJ Flange
Certification: CE, TS, ISO 9001, ISO 14001, ISO 18001, API
Design & Manufacture: API 602, ISO 15761, ASME B16.34
Face-to-face: VERVO'STD, ASME B16.10
End Dimension: ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
Test & Inspection: API 598
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
Forged Steel Gate Valve
Our forged steel gate vales adopt solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of the gate.
