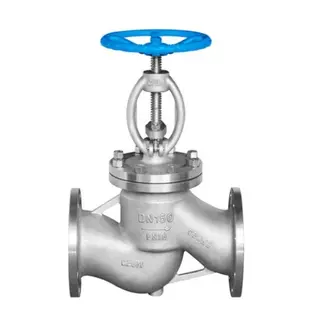

EN 12516-1 Globe Valve, ASTM A351 CF3, DN80, PN16, RF End
Key Specifications / Features
Model No.: WV-231222-AGBV-02
Hits: 125
Discover precision fluid control with our EN 12516-1 Globe Valve, meticulously crafted at our advanced factory. Constructed from high-quality Stainless Steel ASTM A351 CF3, this valve operates seamlessly in DN80 size, PN16, and Class 150 LB environments, ensuring reliability and durability for various applications. The handwheel operation enhances user control, and the bolted bonnet design facilitates easy maintenance.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Valve description:
Globe valve, Raised flange, HANDWHEEL.Design: EN 12516-1.
Body: ASTM A351 CF3
Nominal size: DN80.
Nominal class: PN16.
End Connection: RF.
Operation: handwheel
Face to face: DIN EN 1092-1.
Test and inspection: BS EN 12266.
Product Range:
Body material: Stainless Steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN320).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | DN50 - DN800. |
| Design temp. | Down to -29℃. |
| Design pressure | PN16 - PN320. |
| Material | Stainless Steel. |
| Design standard | BS EN 12516-1. |
| Face to face | DIN EN 1092-1. |
| Operation | Gear, handwheel |
| Connection end | BW, Flange. |
| Test standard | BS EN 12266. |
| Package | Plywood |
| Application | The oil and gas industry |
