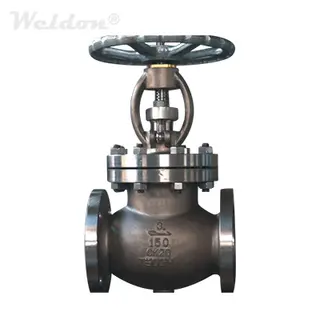

Hand Wheel Globe Valve, ASTM A351 CF8, 3 Inch, Class 150 LB, BB, RF
Key Specifications / Features
Model No.: AGLV-13 Hits: 158
China Hand Wheel Globe Valve Supplier Provides Hand Wheel Globe Valve Globe Valve, ASTM A351 CF8, 3 Inch, Class 150 LB, ASME B16.34, BB, RF, Flanged Ends.
Request a quoteTags:
Detail Information
Size: 3 Inch.
Pressure Rating: Class 150 LB.
Body/Bonnet: ASTM A351 CF8.
Operation: Hand wheel.
Connect Ends: Flange.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with Outside Screw and Yoke.
Renewable Seat or welded Seat.
Special request: Locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
Pressure Rating: Class 150 LB.
Body/Bonnet: ASTM A351 CF8.
Operation: Hand wheel.
Connect Ends: Flange.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem with Outside Screw and Yoke.
Renewable Seat or welded Seat.
Special request: Locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: ASME B16.34.
Face to Face: ASME B16.10.
Flanged Ends: ASME B16.5.
Test and Inspection: API 598.
