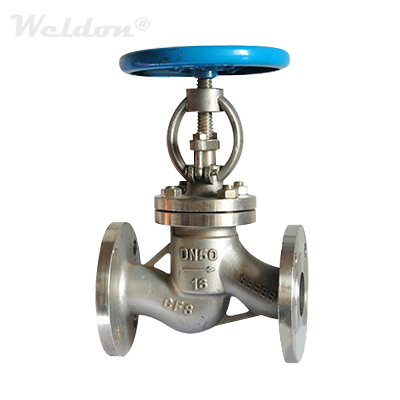

EN 1.4308 Globe Valve, CF8, DN50, PN16, DIN 3356, RF
Key Specifications / Features
Model No.: DGLB-03
Hits: 179
EN 1.4308 Globe Valve Supplier in China Provides EN 1.4308 Globe Valve, ASTM A351 CF8, DN50, PN16, DIN 3356, RF End, Bolted Bonnet, Back Seal Design.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: DN50.
Pressure Rating: PN16.
Body/Bonnet: EN 1.4308 (ASTM A351 CF8).
Wedge: EN 1.4308 (ASTM A351 CF8).
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special request: Locking device (Interlock). Position indicator. Limit Switch.
Extend bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN3356; EN10434.
Face to Face: DIN3202; EN558.
Flanged Ends: DIN2543-2545; EN1092.
Inspection and Test: DIN3230; EN12266.
Pressure and Temperature: DIN2401.
Pressure Rating: PN16.
Body/Bonnet: EN 1.4308 (ASTM A351 CF8).
Wedge: EN 1.4308 (ASTM A351 CF8).
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special request: Locking device (Interlock). Position indicator. Limit Switch.
Extend bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN3356; EN10434.
Face to Face: DIN3202; EN558.
Flanged Ends: DIN2543-2545; EN1092.
Inspection and Test: DIN3230; EN12266.
Pressure and Temperature: DIN2401.
