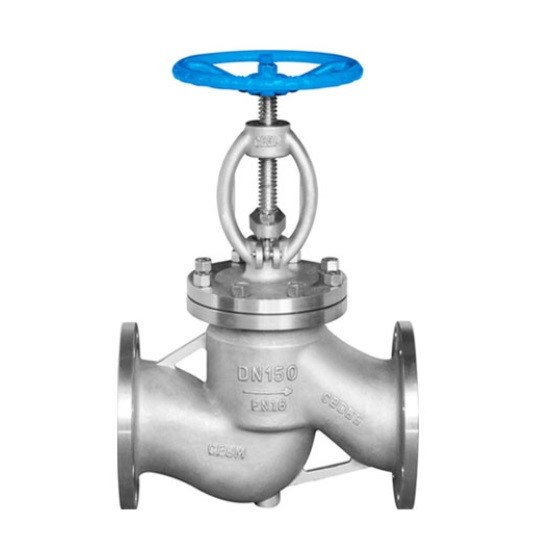

CF8M Globe Valve, EN 1.4408, DN150, PN16, DIN 3352, BB, RF
Key Specifications / Features
Model No.: DGLB-01 Hits: 190
CF8M Globe Valve Provider Supplies CF8M Stainless Steel Globe Valve, EN 1.4408, DN150, PN16, DIN 3352, SS316 Seat, Raised Face, Bolted Bonnet (BB).
Request a quoteTags:
Detail Information
Size: DN150.
Pressure Rating: PN16.
Body/Bonnet: CF8M (EN 1.4408).
Wedge: EN 1.4408.
Seat: SS316.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards:
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
Pressure Rating: PN16.
Body/Bonnet: CF8M (EN 1.4408).
Wedge: EN 1.4408.
Seat: SS316.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards:
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
