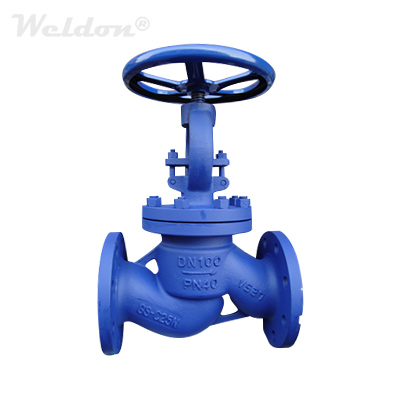

Carbon Steel Globe Valve, GS-C25N, DN100, PN40, DIN 3356, RF
Key Specifications / Features
Model No.: DGLB-02
Hits: 323
Carbon Steel Globe Valve Manufacturer in China Supplies Carbon Steel Globe Valve, GS-C25N, 1.0619, DN100, PN40, DIN 3356, RF, Bolted Bonnet, Full Port.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: DN100.
Pressure Rating: PN40.
Body/Bonnet: GS-C25N (EN 1.0619).
Wedge: GS-C25N (EN 1.0619).
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special request: Locking device (Interlock). Position indicator. Limit Switch.
Extend bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN3356; EN10434.
Face to Face: DIN3202; EN558.
Flanged Ends: DIN2543-2545; EN1092.
Inspection and Test: DIN3230; EN12266.
Pressure and Temperature: DIN2401.
Pressure Rating: PN40.
Body/Bonnet: GS-C25N (EN 1.0619).
Wedge: GS-C25N (EN 1.0619).
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Renewable seat or welding seat.
Special request: Locking device (Interlock). Position indicator. Limit Switch.
Extend bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN3356; EN10434.
Face to Face: DIN3202; EN558.
Flanged Ends: DIN2543-2545; EN1092.
Inspection and Test: DIN3230; EN12266.
Pressure and Temperature: DIN2401.
