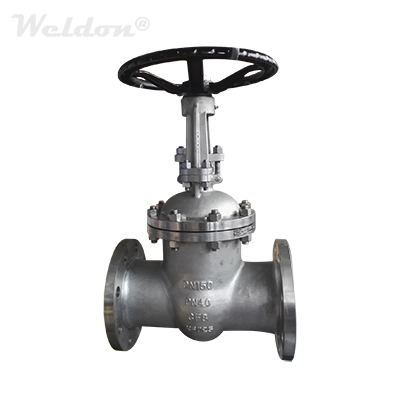

EN 1.4308 Gate Valve, DN150, PN40, DIN 3352, RF, RS, BB
Key Specifications / Features
Model No.: DGV-04
Hits: 168
EN 1.4308 Gate Valve Manufacturer Supplies EN 1.4308 Gate Valve, Size DN150, Pressure PN40, DIN 3352 Stainless Steel, Raised Face, Rising Stem, BB.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: DN150.
Pressure Rating: PN40.
Body/Bonnet: EN 1.4308 (CF8).
Wedge: EN 1.4308.
Seat: SS 316.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards:
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
Pressure Rating: PN40.
Body/Bonnet: EN 1.4308 (CF8).
Wedge: EN 1.4308.
Seat: SS 316.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Rising stem design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards:
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
