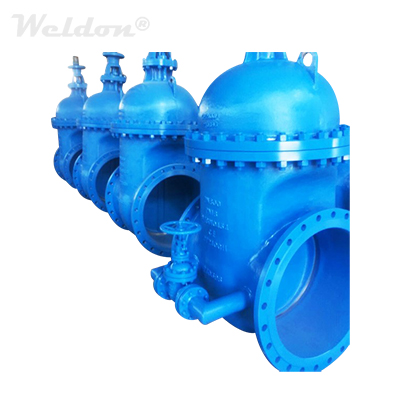

GS-C25 NRS Gate Valve, DIN 3352, DN800, PN16, RF, BB, NRS
Key Specifications / Features
Model No.: DGV-02 Hits: 49
GS-C25 NRS Gate Valve Provider Supplies GS-C25 NRS (Non-rising Stem) Gate Valve, Standard DIN 3352, Size DN800, Pressure PN16, RF, BB (Bolted Bonnet).
Request a quoteTags:
Detail Information
Size: DN800.
Pressure Rating: PN16.
Body/Bonnet: GS-C25.
Wedge: GS-C25.
Seat: ASTM A105 + 13Cr.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Non-rising stem design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
Pressure Rating: PN16.
Body/Bonnet: GS-C25.
Wedge: GS-C25.
Seat: ASTM A105 + 13Cr.
Bolted bonnet (BB) design.
Full port or reduced port design.
Back seal design.
Non-rising stem design.
Renewable seat or welding seat.
Special Request: locking device (interlock), position indicator, limit switch.
Extended bonnet for cryogenic & underground service is available.
Standards
Design and Manufacture: DIN 3352; EN 10434.
Face to Face: DIN 3202; EN 558.
Flanged Ends: DIN 2543-2545; EN 1092.
Inspection and Test: DIN 3230; EN 12266.
Pressure and Temperature: DIN 2401.
