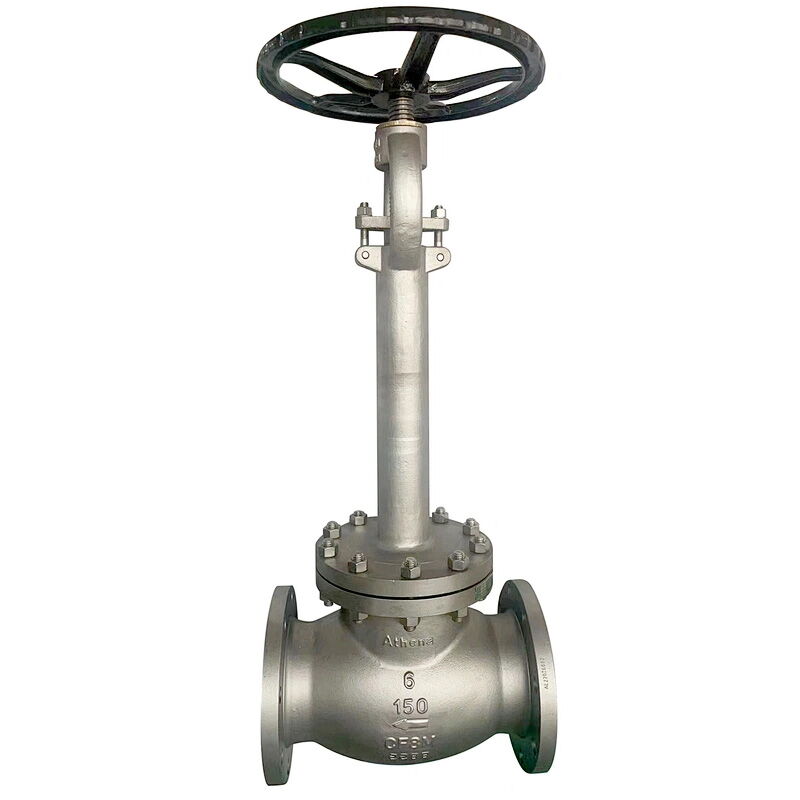

Cryogenic Globe Valve, ASTM A351 CF8M, 6 Inch, Class 150 LB

Cryogenic Globe Valve, ASTM A351 CF8M, 6 Inch, Class 150 LB

Key Specifications / Features

Model No.: Hits: 0

The Forged Cryogenic Globe Valve, meticulously crafted for superior performance in low-temperature environments, features a 6-inch diameter and a Class 150 LB pressure rating. Made from ASTM A351 CF8M material, it ensures both strength and corrosion resistance. The hand wheel operation allows for manual control, providing a reliable and precise flow regulation. Designed in accordance with BS 1873 standards, this valve is specified with a DN150 size and PN20 pressure rating, and is distinguished by its extended bonnet design.

Request a quote

Detail Information

Product Name: Cryogenic Globe Valve
Standard: BS 1873
Size: 6 Inch, DN150
Pressure: Class 150 LB, PN20
Body material: ASTM A351 CF8M
End connection: RF
Operation: Hand Wheel


Feature:
• Engineered to deliver low operating torques, ensuring consistent and superior sealing performance, along with an extended service life.
• Designed to meet stringent leakage requirements, ensuring reliable operation.
• For applications below -50°C, these valves feature an extended bonnet for enhanced performance in cold environments.
• Our valves are equipped with time-tested spring-loaded stem packing and an advanced seat design, which contribute to their longevity and ease of maintenance.
• Specifically tailored for gas treatment processes, as well as the storage and transportation of liquefied gases like LNG, liquid nitrogen, and oxygen, these valves are built to withstand the unique challenges of cryogenic service.
• These valves are crafted to provide exceptional performance in demanding cryogenic and gas processing environments, offering a combination of low operating torque, reliable sealing, and ease of maintenance. Their extended bonnet design and specialized materials make them ideal for use in the most challenging temperatures and conditions.
