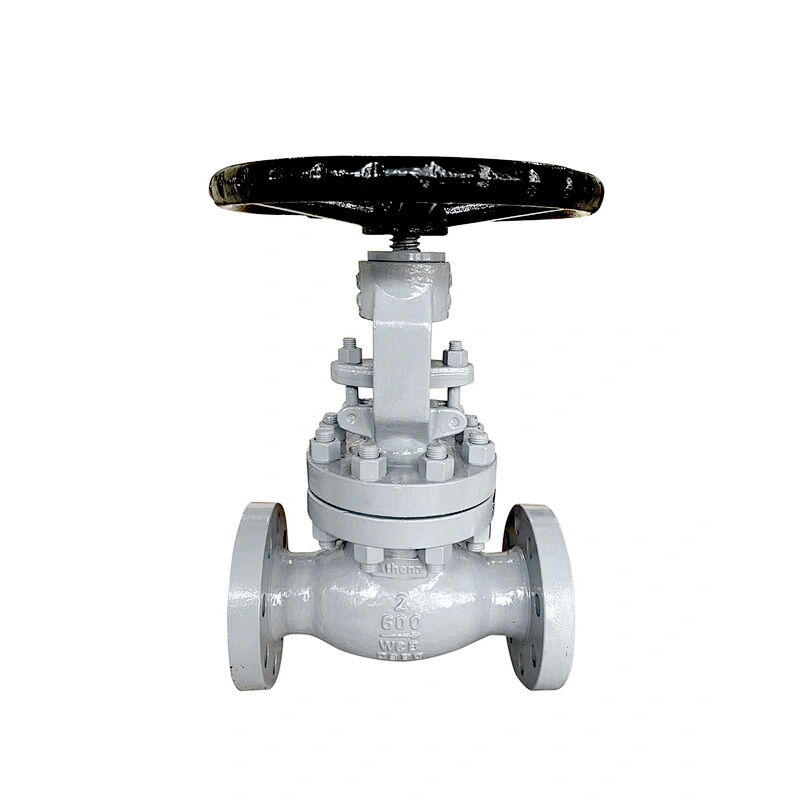

Hand Wheel Operated Globe Valve, ASTM A216 WCB, 2 IN, 600 LB
Key Specifications / Features
Model No.: Hits: 14
The Hand Wheel Operated Globe Valve, manufactured from ASTM A216 WCB material, is a reliable choice for precise flow control in industrial systems. This valve, available in a 2-inch size with a Class 600 LB rating, ensures durability and high-pressure performance. It adheres to the BS 1873 standard, featuring a bonnet joint design for easy maintenance and an outside screw and yoke mechanism for added strength.
Request a quoteTags
Detail Information
Product Name: Cast Steel Globe Valve
Standard: BS 1873
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
Body material: ASTM A216 WCB
End connection: RF
Operation: Hand Wheel
Product Overview:
• Features a streamlined, full-flow path body shape that ensures a smooth flow of the working fluid with minimal pressure drop.
• Constructed with a bolted body and bonnet joint, utilizing an outside screw and yoke type rising stem design.
• Equipped with a bolted, self-aligning two-piece gland for ease of maintenance.
• The body seat ring and disc are made from stainless steel, with ample depth in the stuffing box for reliable sealing.
• Stainless steel (AISI-304) spiral wound asbestos-filled gaskets are used for the body-bonnet joint.
• The back seating arrangement allows for the replacement of gland packing even when the valve is fully open and under line pressure.
• The valve disc is self-aligning and loose on the stem, ensuring precise control.
• Engineered for a tight shut-off and efficient control of fluid flow.
• Ideally suited for applications requiring frequent operation and precise flow control adjustments.
Standard: BS 1873
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
Body material: ASTM A216 WCB
End connection: RF
Operation: Hand Wheel
Product Overview:
• Features a streamlined, full-flow path body shape that ensures a smooth flow of the working fluid with minimal pressure drop.
• Constructed with a bolted body and bonnet joint, utilizing an outside screw and yoke type rising stem design.
• Equipped with a bolted, self-aligning two-piece gland for ease of maintenance.
• The body seat ring and disc are made from stainless steel, with ample depth in the stuffing box for reliable sealing.
• Stainless steel (AISI-304) spiral wound asbestos-filled gaskets are used for the body-bonnet joint.
• The back seating arrangement allows for the replacement of gland packing even when the valve is fully open and under line pressure.
• The valve disc is self-aligning and loose on the stem, ensuring precise control.
• Engineered for a tight shut-off and efficient control of fluid flow.
• Ideally suited for applications requiring frequent operation and precise flow control adjustments.
