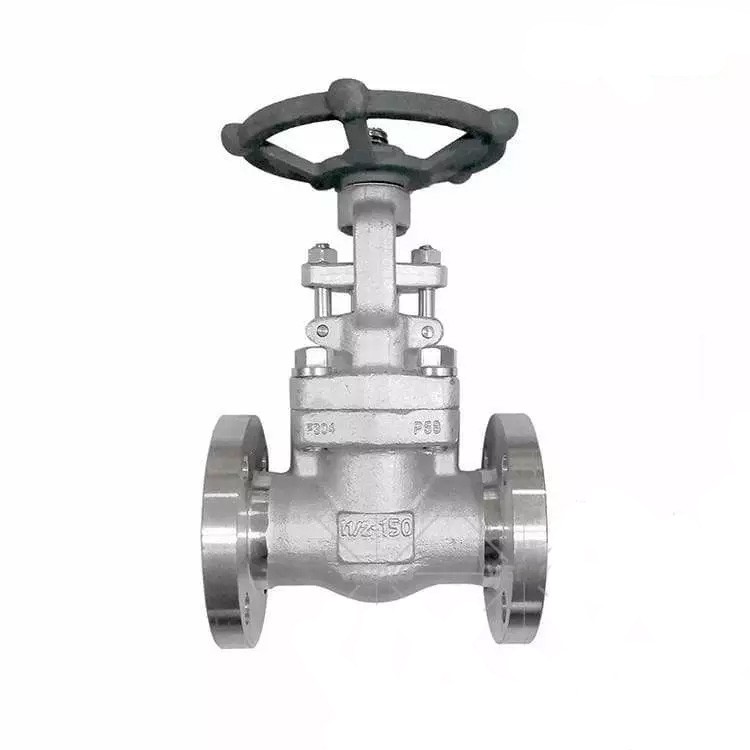

API 602 Gate Valve, ASTM A182 F304, 1-1/2 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-231225-AGV-11 Hits: 21
Welcome to our API 602 Gate Valve service, where we provide top-notch valves to meet your requirements. Our valve, crafted from high-grade Stainless Steel ASTM A182 F304, adheres to the stringent standards of API 602. In a versatile 1-1/2 inch size (DN40) and with a robust Class 150 LB (PN20) rating, our Gate Valve with a Solid Wedge design is engineered for reliability.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Name: Forged Steel Raise Face Flange Gate Valve
Media: Oli, Gas, Water
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304 Stainless Steel
Standard: API 602
End Connection: Flanged End
Temperature Of Media: -54℃ To 232℃
Feature: Stainless Steel Flanged Gate Valve, Solid wedge gate valve
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Media: Oli, Gas, Water
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304 Stainless Steel
Standard: API 602
End Connection: Flanged End
Temperature Of Media: -54℃ To 232℃
Feature: Stainless Steel Flanged Gate Valve, Solid wedge gate valve
| Item | Forged steel Gate Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001 |
| Connection form | Welding/thread |
| Body material | stainless steel |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
Product Range
Size: 1/4 - 4 Inch, DN8-DN100
Pressure: 150-800 LB, 1500 LB, 2500 LB
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
