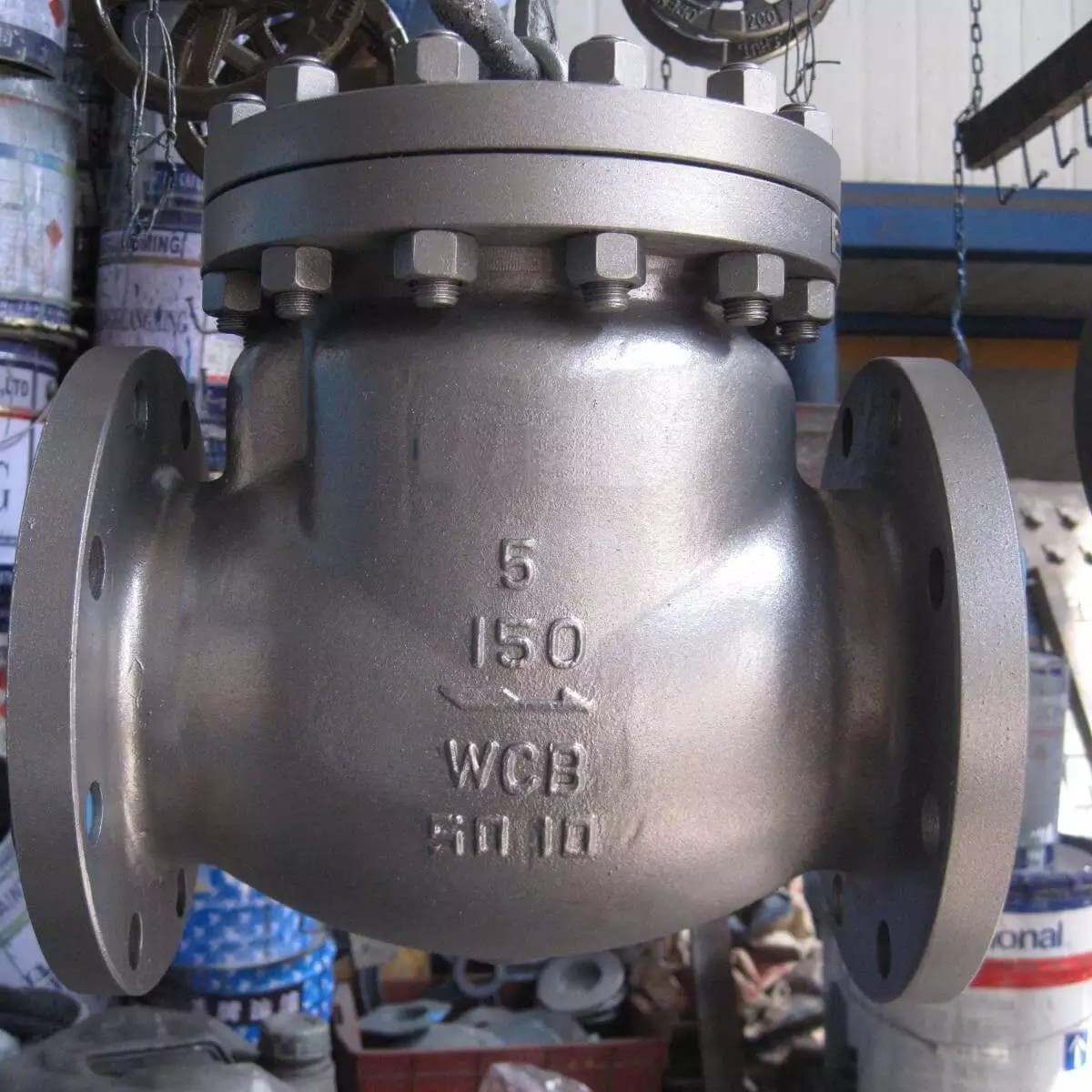

BS 1868 Swing Check Valve, ASTM A216 WCB, 5 Inch, 150 LB, BW
Key Specifications / Features
Model No.: WV-231227-ASCV-09 Hits: 58
Welcome to our state-of-the-art BS 1868 Swing Check Valve Plant, where precision engineering meets industry excellence. Our 5-inch valve is expertly crafted from Carbon Steel ASTM A216 WCB, ensuring durability and reliable performance. With a Class 150 LB rating and DN125 specifications, this valve is designed to meet and exceed the stringent standards of BS 1868.
Request a quoteTags
Detail Information
Valve description:
Swing check valve, bolted bonnet.
Design: BS 1868.
Body: ASTM A216 WCB.
Nominal size: 5 Inch.
Nominal class: 150 LB.
End Connection: RF, BW
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Swing check valve, bolted bonnet.
Design: BS 1868.
Body: ASTM A216 WCB.
Nominal size: 5 Inch.
Nominal class: 150 LB.
End Connection: RF, BW
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Swing check valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | BS1868. |
| Face to face | ASME B16.10. |
| Connection end | BW, RF. |
| Test standard | API 598. |
| Package | Plywood |
| Application | Block reverse flows |
| Special test | Impact test. |
| Structure feature 1 | Fire Safety Design. |
