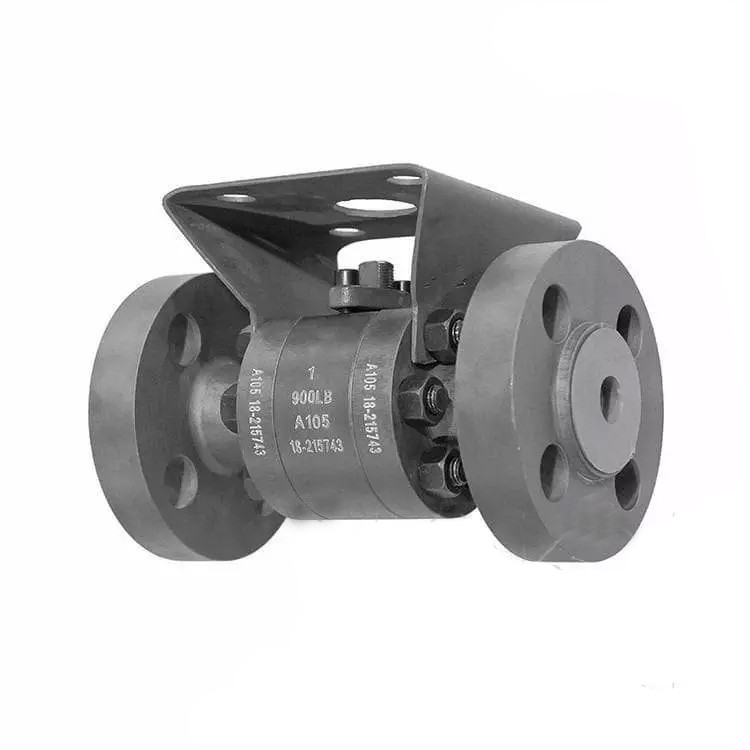

Bare Stem Ball Valve, ASTM A105, 1 Inch, Class 900 LB, RF
Key Specifications / Features
Model No.: WV-231226-MSBV-01 Hits: 38
Explore the cutting-edge capabilities of our High-Temperature Bare Stem Ball Valve from our advanced manufacturing facility in China. Meticulously crafted for high-temperature applications, this valve is engineered to excel in demanding industrial environments. Constructed with premium ASTM A105 material, our three-piece ball valve ensures durability and resistance to high temperatures.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Name: 3 Piece Metal Seat Ball Valve
Size: 1 Inch, DN25
Pressure: Class 900 LB, PN150
Material: ASTM A105
Temperature Of Media: -29℃ To 120℃
Seat Material: Metal Seated
Feature: Bare stem operated ball valve
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Standard: API 608, GOST, DIN
Pressure: Class 150, 300, 600, 900, 1500, 2500 LB
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek, Metal Seat
Connection: Thread BSP NPT, Female Thread/OD Size, threaded, Female, RF, RTJ, SW, FF
Size: 1 Inch, DN25
Pressure: Class 900 LB, PN150
Material: ASTM A105
Temperature Of Media: -29℃ To 120℃
Seat Material: Metal Seated
Feature: Bare stem operated ball valve
Product Range
Size: 1/4 -4 Inch, DN8-DN100
Standard: API 608, GOST, DIN
Pressure: Class 150, 300, 600, 900, 1500, 2500 LB
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek, Metal Seat
Connection: Thread BSP NPT, Female Thread/OD Size, threaded, Female, RF, RTJ, SW, FF
|
Item |
Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Power | pneumatic, Bare Stem |
| Port Size | 1" DN25 25MM |
| Structure | Ball, Floating |
| Pressure | low pressure |
| Temperature | -46 - 200 ℃ |
| Medium | Water gas steam |
| Connection form | Flanged |
| Body material | Forged Steel A105 |
| Seal material | Gasket |
