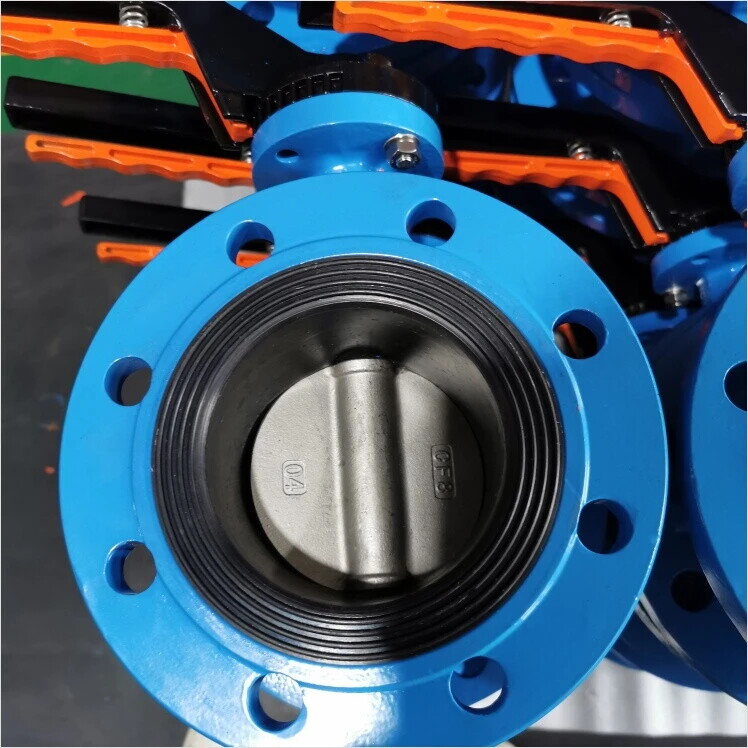

ASTM A351 CF8 Butterfly Valve, API 609, 4 Inch, Class 150 LB
Key Specifications / Features
Model No.: WV-240427-CBFV-03 Hits: 12
As your API 609 Center Line Butterfly Valve Provider, we offer excellence in performance and reliability. Our 4-inch valve, with a Class 150 LB rating, is expertly crafted from durable ASTM A351 CF8 material. Featuring EPDM/PTFE Soft Seat, it ensures optimal sealing and versatility for various applications. With a DN100 size and PN20 pressure rating, it's designed to meet your specific requirements.
Request a quoteTags
Detail Information
Center line-type Butterfly Valve, flange, soft seat: EPDM/PTFE, RUBBER LINED.
Standard: API 609.
Materials: ASTM A351 CF8
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
End Connection: Flange.
Face to face: API 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 24 Inch (DN50 - DN600).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 LB (PN6 - PN16).
Working temperature: -29℃ - +100℃.
Standard: API 609.
Materials: ASTM A351 CF8
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
End Connection: Flange.
Face to face: API 609.
Test and inspection: API 598.
Product Range:
Body material: Stainless steel.
Normal diameter: 2 - 24 Inch (DN50 - DN600).
End connection: Flanged, WAFER, LUG.
Pressure range: Class 150 LB (PN6 - PN16).
Working temperature: -29℃ - +100℃.
| Product | Center line-type Butterfly Valve. |
| Nominal diameter | 2 Inch - 24 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 LB. |
| Material | Stainless steel. |
| Design standard | API 609. |
| Face to face | API 609. |
| Connection end | Flange, WAFER, LUG. |
| Test standard | API 598. |
| Package | Plywood |
| Application | water, oil and gas. |
