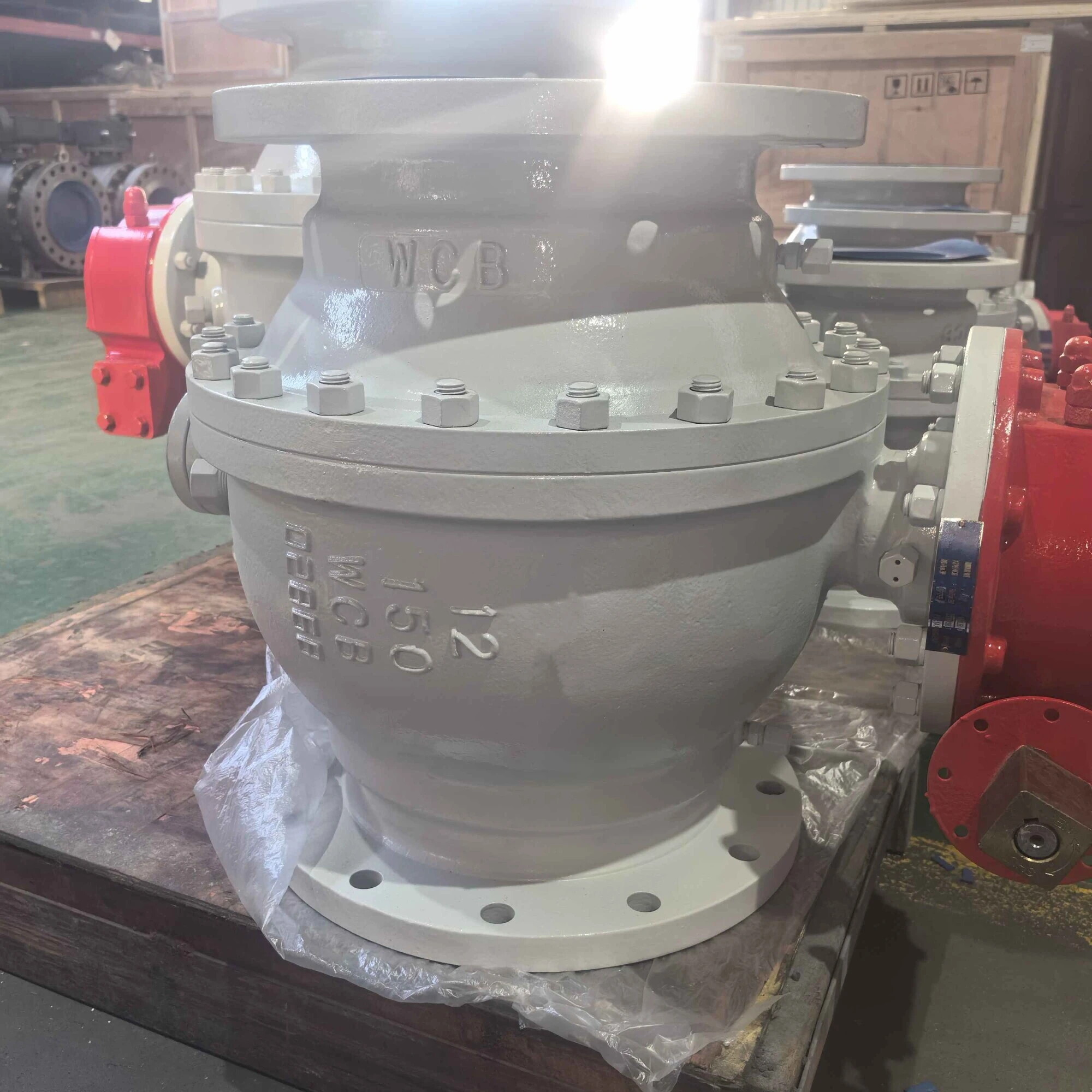

ASTM A216 WCB Floating Ball Valve, Soft Seal, 12 IN, 150 LB
Key Specifications / Features
Model No.: WV-240326-FBV-04 Hits: 4
Manufacturer of soft-seal floating ball valves meeting API 6D standards. These valves are designed for a 12-inch size, Class 150 LB rating, and PN20 pressure rating, with ASTM A216 WCB construction. Featuring a bolted bonnet, split body design, and RF end, they are operated with gears for smooth functionality.
Request a quoteTags:
Detail Information
Design: API 6D.
Material: ASTM A216 WCB
Size: 12 Inch, DN300
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear
Face to face: ASME B16.10
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Material: ASTM A216 WCB
Size: 12 Inch, DN300
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear
Face to face: ASME B16.10
Test and inspection: API 598
Product Range:
Body material: Carbon Steel.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
