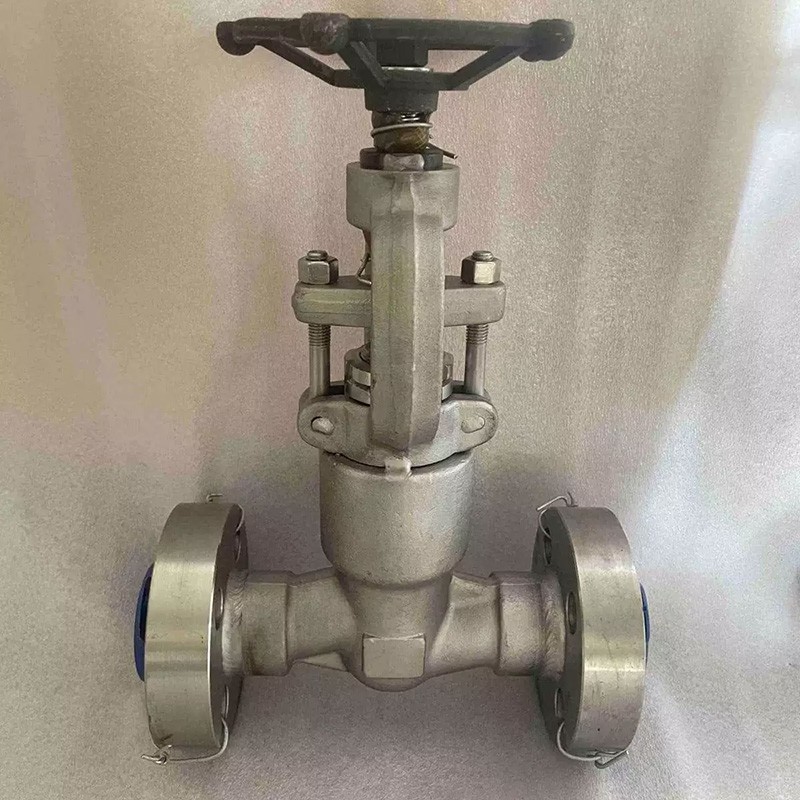

ASTM A182 F316 Globe Valve, Welded Bonnet, 3/4 Inch, 2500 LB
Key Specifications / Features
Model No.: WV-231223-AGBV-02 Hits: 40
Elevate your industrial operations with our Welded Bonnet Globe Valve, meticulously manufactured from high-quality ASTM A182 F316 steel. Engineered to API 602 standards, this valve is a resilient and dependable solution for diverse applications. With a robust 3/4-inch size and an impressive Class 2500 LB rating, it ensures precision and durability in demanding conditions. The inclusion of a Welded Flange, DN20, and PN420 further enhances its suitability for high-pressure environments.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Globe valve, welded bonnet, welded flange, integral seat.
Design: API 602.
Body: ASTM A182 F316
Nominal size: 3/4 Inch.
Nominal class: 2500 LB.
End Connection: Welded flange.
Operation: Handwheel
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
Globe valve, welded bonnet, welded flange, integral seat.
Design: API 602.
Body: ASTM A182 F316
Nominal size: 3/4 Inch.
Nominal class: 2500 LB.
End Connection: Welded flange.
Operation: Handwheel
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +300℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 600, API 602. |
| Face to face | ASME B16.10. |
| Operation | Gear, handwheel |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
