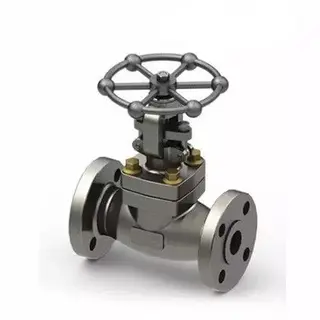

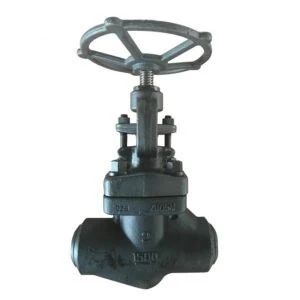

ASTM A182 F304 Globe Valve, Extension Stem, 2 Inch, 1500 LB
Key Specifications / Features
Model No.: WV-240304-FGBV-09 Hits: 0
Manufacturer of forged steel globe valves crafted from ASTM A182 F304, offering durability and corrosion resistance. These valves are 2 inches in size, Class 1500 LB, with an extension stem for easy operation. They adhere to API 602, ASME B16.34, BS 5352, and DIN 3352 standards, featuring DN50 and PN250 specifications. With butt weld (BW) ends and handwheel operation, they ensure reliable performance in various industrial applications.
Request a quoteTags:
Detail Information
Standard: DIN 3356
Material: ASTM A182 F304
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: BW
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10, EN 558, DIN 3202
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29℃ – +425℃
Material: ASTM A182 F304
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: BW
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10, EN 558, DIN 3202
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29℃ – +425℃
