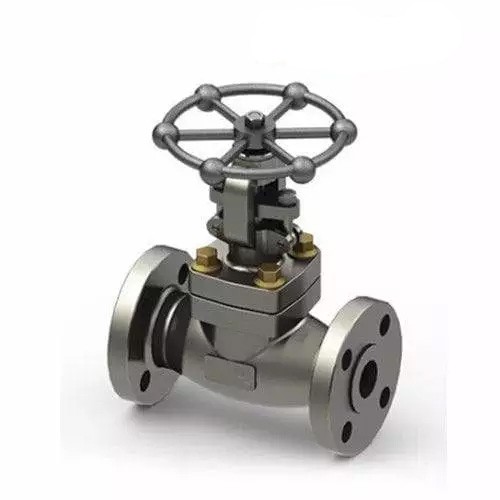

ASTM A105 Globe Valve, API 602, 1/2-2 Inch, 150-1500 LB, SW
Key Specifications / Features
Model No.: WV-231223-AGBV-16 Hits: 250
Welcome to our API 602 Globe Valve Mill in China, where precision and quality converge to provide a diverse range of globe valves. Crafted from high-grade materials, including ASTM A105, ASTM A350 LF2, and ASTM A182 F5, our valves are designed to meet your stringent requirements. Our globe valves range from 1/2 to 2 inches in size, with Class 150 to 1500 LB ratings, accommodating various pressure specifications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 602
Body Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F311, ASTM A182 F51
Size: NPS 1/2 - 2 Inch
Pressure: Class 150-1500 LB
End Connection: SOCKET-WELDING (SW)
Face To Face: ASME B16.10, EN 558 (threaded And Sw As Per Manufacturer's Std)
Test And Inspection: API 598
Feature: Forged Steel Globe Valve, Socket Welding Globe Valve, API Industrial Globe Valve
Applicable Standards:
STEEL GLOBE VALVES, API 602
STEEL VALVES, ASME B16.34
FACE-TO-FACE, MANUFACTURER STANDARD
FACE TO FACE, FLANGED, ASME B16.10
END FLANGES, ASME B16.5
BUTTWELDING ENDS, ASME B16.25
SOCKET-WELDING ENDS, ASME B16.11
SCREWED ENDS, ASME B1.20.1
INSPECTION AND TEST, API 598
Design descriptions:
OUTSIDE SCREW AND YOKE (OS&Y)
BOLTED BONNET
CHOICE OF WB, WELDED BONNET
LOOSE DISC, CHOICE OF PLUG OR BALL
SEAT RINGS INTEGRAL TO BODY
YOKE INTEGRAL WITH BONNET
RISING STEM AND HANDWHEEL
HORIZONTAL SERVICE
SW, SOCKET-WELDING ENDS
SC, SCREWED ENDS
BW, BUTTWELDING ENDS
Body Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F311, ASTM A182 F51
Size: NPS 1/2 - 2 Inch
Pressure: Class 150-1500 LB
End Connection: SOCKET-WELDING (SW)
Face To Face: ASME B16.10, EN 558 (threaded And Sw As Per Manufacturer's Std)
Test And Inspection: API 598
Feature: Forged Steel Globe Valve, Socket Welding Globe Valve, API Industrial Globe Valve
Applicable Standards:
STEEL GLOBE VALVES, API 602
STEEL VALVES, ASME B16.34
FACE-TO-FACE, MANUFACTURER STANDARD
FACE TO FACE, FLANGED, ASME B16.10
END FLANGES, ASME B16.5
BUTTWELDING ENDS, ASME B16.25
SOCKET-WELDING ENDS, ASME B16.11
SCREWED ENDS, ASME B1.20.1
INSPECTION AND TEST, API 598
Design descriptions:
OUTSIDE SCREW AND YOKE (OS&Y)
BOLTED BONNET
CHOICE OF WB, WELDED BONNET
LOOSE DISC, CHOICE OF PLUG OR BALL
SEAT RINGS INTEGRAL TO BODY
YOKE INTEGRAL WITH BONNET
RISING STEM AND HANDWHEEL
HORIZONTAL SERVICE
SW, SOCKET-WELDING ENDS
SC, SCREWED ENDS
BW, BUTTWELDING ENDS
| Size | NPS 1/2 Inch-2 Inch |
|---|---|
| Pressure Rating | Class 150-1500 LB |
| Material | A105, LF2, F5, F9, F11, F22, F304, F304L, F311, F51 |
| Design & Manufacturing Standard | API 602, ASME B16.34, BS 5352 |
| Face to Face | ASME B16.10, EN 558(threaded and SW as per manufacturer's std) |
| Flanged Dimension | ASME B16.5 |
| Butt Weld Dimension | ASME B16.25 |
| Thread Connection Dimensions | ASME B 1.20.1 |
| Test and Inspection | API 598 |
| Type | Globe |
