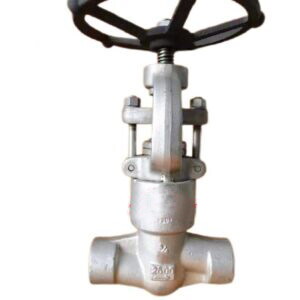

ASTM A182 F304 Globe Valve, 3/4 Inch, 2500 LB, 304 Trim, SW
Key Specifications / Features
Model No.: WV-240307-FGBV-06 Hits: 1
Introducing our Forged Steel Globe Valve Plant from China. Our meticulously crafted globe valves, constructed from ASTM A182 F304 forged steel, are designed to meet the rigorous demands of industrial applications. With a size of 3/4 inch and a Class rating of 2500 LB, these valves offer exceptional durability and reliability under high-pressure conditions.
Request a quoteTags:
Detail Information
Standard: API 602
Material: ASTM A182 F304
Size: 3/4 Inch, DN20
Pressure: Class 2500 LB, PN420
0End Connection: Flanged
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 425℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
Material: ASTM A182 F304
Size: 3/4 Inch, DN20
Pressure: Class 2500 LB, PN420
0End Connection: Flanged
Operating: Handwheel
Test & Inspection: API 598
Face to Face: ASME B16.10
Working Temperature: -29℃ – 425℃
Structure features: Bolted bonnet, Welded bonnet, Pressure seal bonnet, outside screw and yoke
