API 602 Y Type Globe Valve, ASTM A182 F11, 1-1/2 Inch, 800 LB

API 602 Y Type Globe Valve, ASTM A182 F11, 1-1/2 Inch, 800 LB

Key Specifications / Features

Model No.: WV-231222-YPGBV-01 Hits: 10

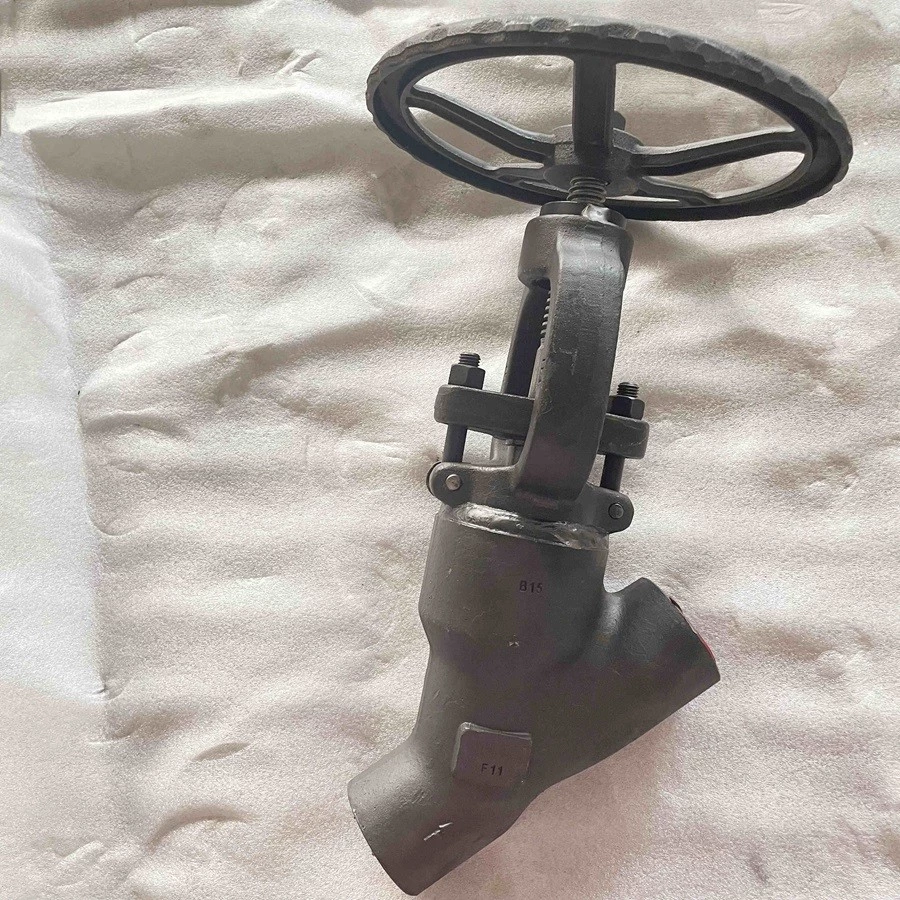

Experience optimal fluid control with our Y Type Globe Valve. Crafted to precision standards, this valve, compliant with API 602, features a robust design with ASTM A182 F11 construction. Operating seamlessly in Class 800 LB and PN130 conditions, it ensures reliability and durability for various applications. The 1-1/2 inch size (DN40), coupled with socket weld end and handwheel operation, provides secure connections and ease of use.

Request a quote

Detail Information

Valve description:
Y type-Globe valve, Socket weld, Carbon steel.
Design: API 602.
Body: ASTM A182 F11
Nominal size: 1.5 Inch.
Nominal class: 800 LB.
End Connection: SW.
Operation: Handwheel
Face to face: MFG’S.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange(RTJ,RF),NPT,SW.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +425℃.

Technical parameters and characteristics
Product Y type-Globe valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon Steel.
Design standard API 602.
Face to face MFG'S.
Operation Handwheel
Connection end BW,Flange(RTJ,RF),NPT,SW.
Test standard API 598.
Package Plywood
Application The oil and gas industry
