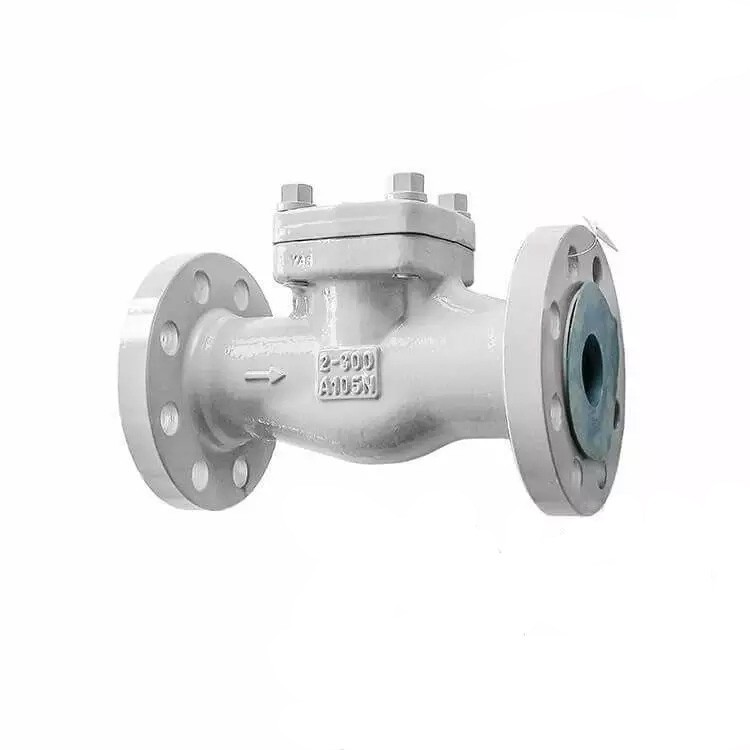

ASME B16.34 Piston Check Valve, ASTM A105N, 2 Inch, 300 LB
Key Specifications / Features
Model No.: WV-231227-FCV-10 Hits: 85
As a distinguished Lift Piston Check Valve producer, we take pride in offering a superior solution that adheres to the highest industry standards. Our 2-inch valve, crafted with precision from ASTM A105N material, meets the rigorous requirements of ASME B16.34, API 602, and BS 5352. With a Class 300 LB rating and PN50 compatibility, our valve is designed for optimal performance in critical fluid control applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design Standard: API 602, BS 5352
Body Material: ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 300 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Piston Integral Flange Lift
Forged Steel Check Valve
We manufacture forged steel check valves in various designs including swing type, lift type, bolted bonnet, and welded bonnet. These valves are available in a diverse selection of materials such as carbon steel, stainless steel, duplex stainless steel, alloy, and other special materials. The production of forged steel check valves adheres to the API 602 Design standard.
PRODUCT RANGE
Size: NPS 1/2 Inch to NPS 4 Inch
Pressure: Class 800 LB to Class 2500 LB
Material: Available in Forged Steel, Alloy 20, Monel, Inconel, Hastelloy
Design: API 602, BS 5352, ASME B16.34
Body Material: ASTM A105N
Nominal Diameter: 2 Inch, DN50
Pressure: Class 300 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Piston Integral Flange Lift
| Item | Carbon steel Check Valve |
| Type | Piston Check Valve |
| Certification | ISO9001, ISO14001, ISO18001, CE, TS, API |
| Port Size | 2 Inch, DN50 |
| Pressure | 300LB |
| Temperature | -29 - 425℃ |
| Connection form | Integral Raised Flange |
| Body material | Carbon steel ASTM A105N |
| Feature | Easy disassembly and assembly |
Forged Steel Check Valve
We manufacture forged steel check valves in various designs including swing type, lift type, bolted bonnet, and welded bonnet. These valves are available in a diverse selection of materials such as carbon steel, stainless steel, duplex stainless steel, alloy, and other special materials. The production of forged steel check valves adheres to the API 602 Design standard.
PRODUCT RANGE
Size: NPS 1/2 Inch to NPS 4 Inch
Pressure: Class 800 LB to Class 2500 LB
Material: Available in Forged Steel, Alloy 20, Monel, Inconel, Hastelloy
Design: API 602, BS 5352, ASME B16.34
