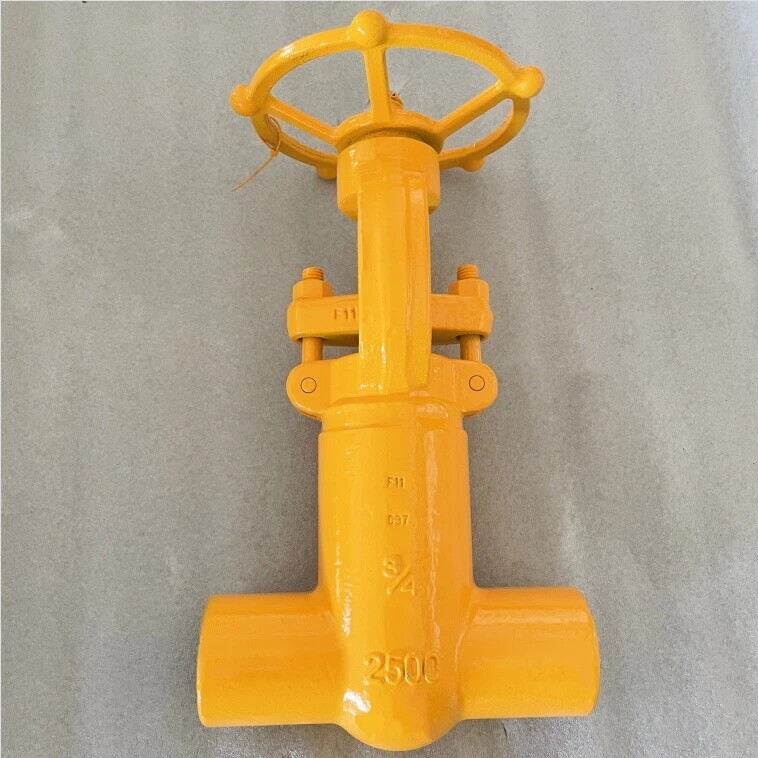

ASME B16.34 Globe Valve, ASTM A182 F11, 3/4 Inch, 2500 LB, RF
Key Specifications / Features
Model No.: WV-240427-AGBV-04 Hits: 147
Our ASME B16.34 Globe Valve stands as a pinnacle of reliability and performance, meticulously crafted as your trusted valve producer. With a 3/4 inch size and Class 2500 LB rating, this valve is engineered for high-pressure applications. Constructed from durable Stainless Steel ASTM A182 F11, it ensures corrosion resistance and longevity.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Globe valve, Carbon steel, 3/4 inch, 2500 LB, F11, RF.
Standard: ASME B16.34, API 602
Material: ASTM A182 F11
Size: 3/4 Inch, DN20
Pressure: Class 2500 LB, PN420
End Connection: RF
Operation: Handwheel
Face to face: MFG'S
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW, BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +425℃.
Standard: ASME B16.34, API 602
Material: ASTM A182 F11
Size: 3/4 Inch, DN20
Pressure: Class 2500 LB, PN420
End Connection: RF
Operation: Handwheel
Face to face: MFG'S
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW, BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +425℃.
| Product | Y-Globe valve. |
| Nominal diameter | 1/2 Inch - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | ASME B16.34, API 602. |
| Face to face | MFG'S. |
| Operation | Handwheel |
| Connection end | SW, BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
