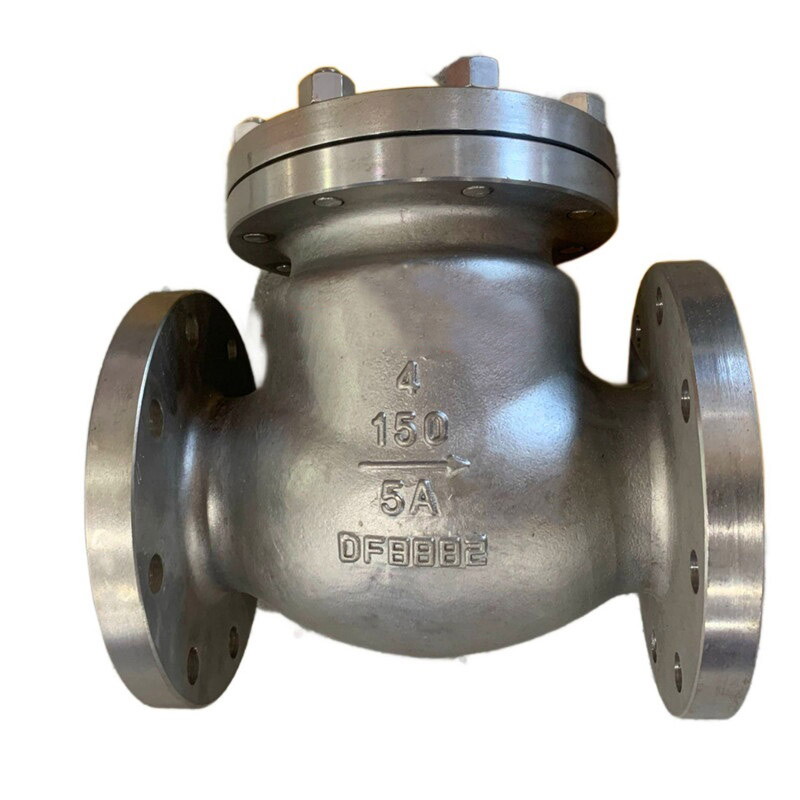

API 6D Check Valve, ASTM A890 5A, 4 Inch, Class 150 LB, RF
Key Specifications / Features
Model No.: WV-240223-ASCV-04 Hits: 0
Welcome to our Swing Check Valve Mill, where we specialize in manufacturing high-quality valves to meet stringent industry standards. Our valves are meticulously crafted to adhere to API 6D and BS 1868 specifications, ensuring reliability and performance in demanding environments.
Request a quoteTags:
Detail Information
Standard: API 6D, BS 1868
Material: ASTM A890 Grade 5A
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
Pressure-temperature Ratings: ASME B16.34
End Connection: RF
Test & Inspection: API 598
Face to Face: ASME B16.10
Bonnet: Bolted or pressure seal bonnet
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Material: ASTM A890 Grade 5A
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
Pressure-temperature Ratings: ASME B16.34
End Connection: RF
Test & Inspection: API 598
Face to Face: ASME B16.10
Bonnet: Bolted or pressure seal bonnet
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
