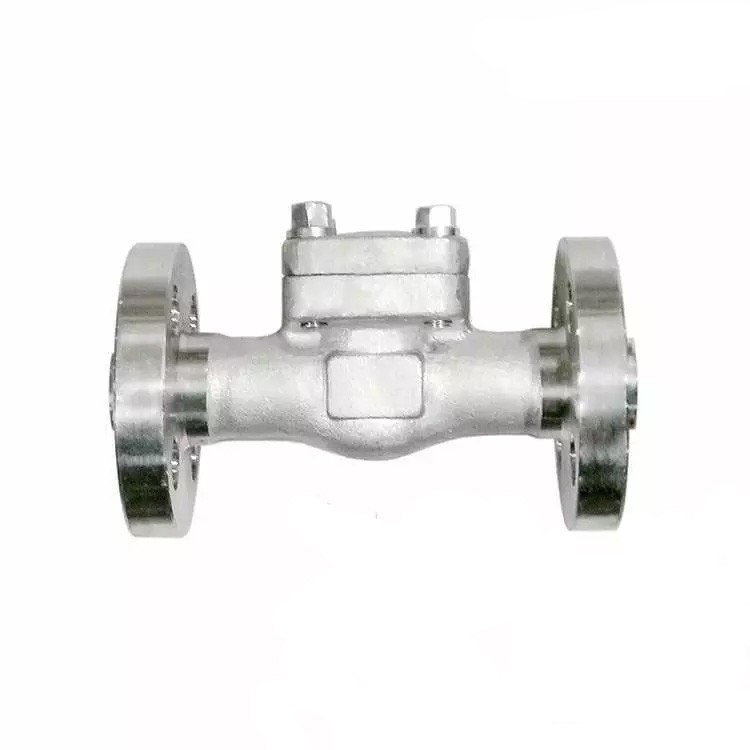

API 602 Swing Check Valve, ASTM A182 F316L, 1/2 Inch, 600 LB
Key Specifications / Features
Model No.: WV-231227-ASCV-01 Hits: 0
Introducing our premium Stainless Steel Swing Check Valve, meticulously crafted to meet the highest industry standards including API 602, BS 5352, and ASTM A182 F316L. Designed for optimal performance, this 1/2-inch valve boasts a Class 600 LB rating and PN100 compatibility, ensuring reliable and efficient operation in a variety of applications. The valve features an integral raised flange for seamless integration, enhancing its durability and ease of installation.
Request a quoteTags:
Detail Information
Design Standard: API 602, BS 5352
Body Material: ASTM A182 F316L
Nominal Diameter: 1/2 Inch, DN15
Pressure: Class 600 LB, PN100
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Body Material: ASTM A182 F316L
Nominal Diameter: 1/2 Inch, DN15
Pressure: Class 600 LB, PN100
End Connection: Integral Raise Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
| Item | Carbon steel Check Valve |
| Type | Swing Check Valve |
| Certification | ISO 9001,ISO 14001, ISO 18001, CE, TS, API |
| Port Size | 1/2 Inch, DN15 |
| Pressure | 600 LB |
| Temperature | -29 - 300℃ |
| Connection form | Integral Raised Flange |
| Body material | Stainless Steel A182 F316L |
| Feature | Easy disassembly and assembly |
