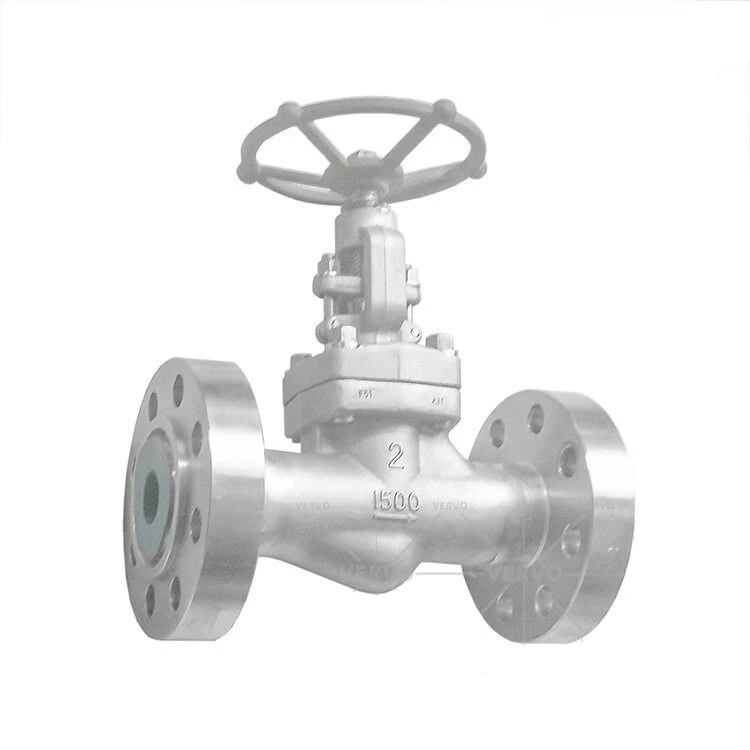

API 602 Globe Valve, ASTM A182 F51, 2 Inch, Class 1500 LB
Key Specifications / Features
Model No.: WV-240320-AGBV-04 Hits: 2
Meet our premier Forged Steel Globe Valve Mill in China, featuring ASTM A182 F51 construction for superior durability. This 2-inch valve operates seamlessly at Class 1500 LB, adhering to BS 5352 and API 602 standards. Equipped with an Outside Screw Yoke and a Bolted Bonnet design, it ensures reliable performance in demanding applications.
Request a quoteTags:
Detail Information
Name: Forged Steel Globe Valve
Standard: API 602, BS 5352
Material: ASTM A182 F51
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Media: Oli, Gas, Water
Our Forged Steel Globe Valves boast a Bolted Bonnet design, featuring an outside screw and yoke configuration with a Rising Spindle construction. The body and bonnet of Nivz Forged Valves are meticulously crafted from high-quality forgings.
Our offerings span from sizes 1/2 - 4 Inch (DN15-DN100), catering to a wide array of critical and non-critical applications with pressure ratings ranging from 150 to 2500 class.
Our manufacturing range includes both Regular Port and Standard Port variations. We maintain a ready stock of Regular Port globe valves for swift delivery, while Standard Port globe valves are fabricated upon order placement. Our selection includes a diverse range of body materials such as ASTM A 105 for Forged Carbon Steel, ASTM A182 F304/304L/316/316L for Forged Stainless Steel, and ASTM A182 F11/22 for Alloy Steel, tailored to meet various industrial requirements.
Our products are available for third-party inspection, ensuring quality compliance. For applications demanding high pressure and temperature resistance, we provide Stellited F6 Face Seat & Disc options. Our Forged Globe Valves are adaptable to Threaded End, Socket Weld End, Butt Weld End, and Flanged End connections. In the case of Flanged End Forged Steel Globe Valves, flanges are welded to the valve body rather than being integral forged.
Features
Body & Bonnet made from high-quality forging.
The Forgings are precision machined for high-performance
Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
Ground Finish Stem
Self Aligning Two Piece Gland
The back seating feature facilitates the repacking of the stuffing box online with the valve in the fully open position.
Standard: API 602, BS 5352
Material: ASTM A182 F51
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Media: Oli, Gas, Water
Our Forged Steel Globe Valves boast a Bolted Bonnet design, featuring an outside screw and yoke configuration with a Rising Spindle construction. The body and bonnet of Nivz Forged Valves are meticulously crafted from high-quality forgings.
Our offerings span from sizes 1/2 - 4 Inch (DN15-DN100), catering to a wide array of critical and non-critical applications with pressure ratings ranging from 150 to 2500 class.
Our manufacturing range includes both Regular Port and Standard Port variations. We maintain a ready stock of Regular Port globe valves for swift delivery, while Standard Port globe valves are fabricated upon order placement. Our selection includes a diverse range of body materials such as ASTM A 105 for Forged Carbon Steel, ASTM A182 F304/304L/316/316L for Forged Stainless Steel, and ASTM A182 F11/22 for Alloy Steel, tailored to meet various industrial requirements.
Our products are available for third-party inspection, ensuring quality compliance. For applications demanding high pressure and temperature resistance, we provide Stellited F6 Face Seat & Disc options. Our Forged Globe Valves are adaptable to Threaded End, Socket Weld End, Butt Weld End, and Flanged End connections. In the case of Flanged End Forged Steel Globe Valves, flanges are welded to the valve body rather than being integral forged.
Features
Body & Bonnet made from high-quality forging.
The Forgings are precision machined for high-performance
Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
Ground Finish Stem
Self Aligning Two Piece Gland
The back seating feature facilitates the repacking of the stuffing box online with the valve in the fully open position.
