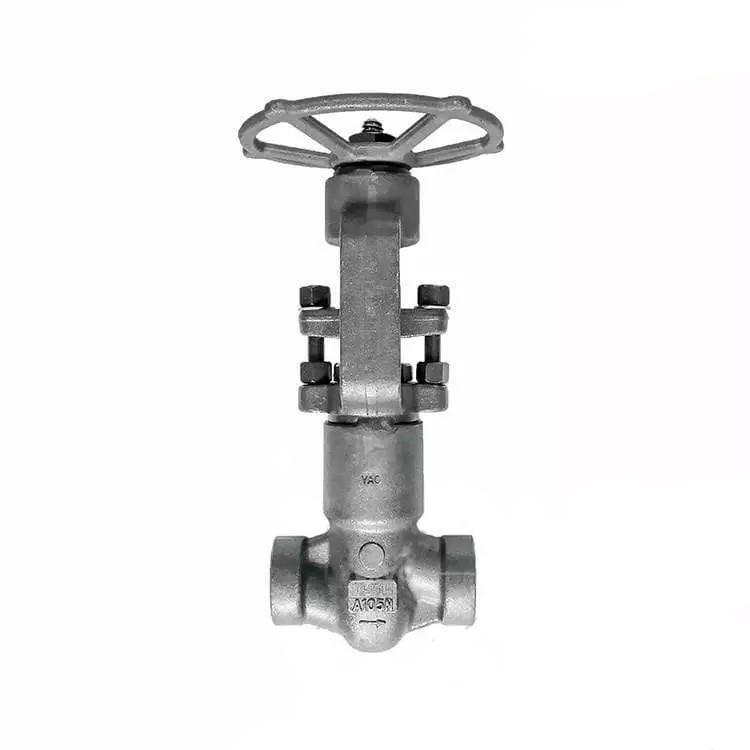

Pressure Seal Bonnet Globe Valve, ASTM A105N, 3/4 IN, CL1500
Key Specifications / Features
Model No.: WV-231223-PSBGBV-01 Hits: 2
As a leading Pressure Seal Bonnet Globe Valve mill in China, our commitment to excellence shines through in every detail of our product. Crafted with precision, our valve is manufactured from high-quality ASTM A105N, ensuring durability and optimal performance. Compliant with API 602 and BS 5352 standards, this globe valve is designed to meet the rigorous demands of fluid control applications.
Request a quoteTags:
Detail Information
Name: Forged Steel Pressure Seal Bonnet Globe Valve
Size: 0.75mm, 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Material: ASTM A105N
Standard: API 602, BS 5352
End Connection: SW
Power: Manual or Motor Operated
Temperature Of Media: -54℃ - 232℃
Feature: PSB Type, Full Bore
Product Range
Size: 1/4 - 6 Inch, DN8-DN150
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Media: Oli, Gas, Water
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO, API, ASME, ASTM
Design: ASME B16.11, ASME B16.25, ASME B16.34, ASME B16.5
Temperature: Up to 500℃
End Connection: Socket-Welded or Flanged Type
Power: Manual, Pneumatic, Solenoid, Electrical Actuated, Hydraulic
Forged Steel Globe Valves
Our forged steel globe valves are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304/graphite. Ring joint gaskets are also available on request. The second design is the welded bonnet with a threaded and sealed welded joint. On request, a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Globe valve Design construction and Specification.
Our globe valve conform to API 602, BS 5352 and ASME B16.34. Each is tested according to API 598, and marking is per MSS SP-25.
Size: 0.75mm, 3/4 Inch, DN20
Pressure: Class 1500 LB, PN250
Material: ASTM A105N
Standard: API 602, BS 5352
End Connection: SW
Power: Manual or Motor Operated
Temperature Of Media: -54℃ - 232℃
Feature: PSB Type, Full Bore
Product Range
Size: 1/4 - 6 Inch, DN8-DN150
Pressure: Class 150-800 LB, 1500 LB, 2500 LB
Media: Oli, Gas, Water
Standard: API 602, BS 5352, GOST, JIS, DIN, ISO, API, ASME, ASTM
Design: ASME B16.11, ASME B16.25, ASME B16.34, ASME B16.5
Temperature: Up to 500℃
End Connection: Socket-Welded or Flanged Type
Power: Manual, Pneumatic, Solenoid, Electrical Actuated, Hydraulic
Forged Steel Globe Valves
Our forged steel globe valves are available in three bonnet designs. The first design is the Bolted Bonnet, with male-female joint, spiral wound gasket, made in F304/graphite. Ring joint gaskets are also available on request. The second design is the welded bonnet with a threaded and sealed welded joint. On request, a full penetration strength welded joint is available. The third design is the pressure seal bonnet, with a threaded and pressure seal bonnet joint.
Globe valve Design construction and Specification.
Our globe valve conform to API 602, BS 5352 and ASME B16.34. Each is tested according to API 598, and marking is per MSS SP-25.
| Model number | PSBJ61Y-2500LB-DN20 |
| Item | PSB Globe Valve |
| Certification | ISO9001, ISO14001, ISO18001, CE, TS |
| Connection form | Socket welding/SW |
| Body material | Stainless Steel |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
