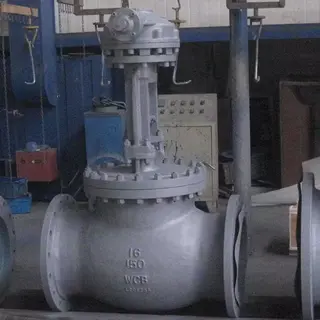

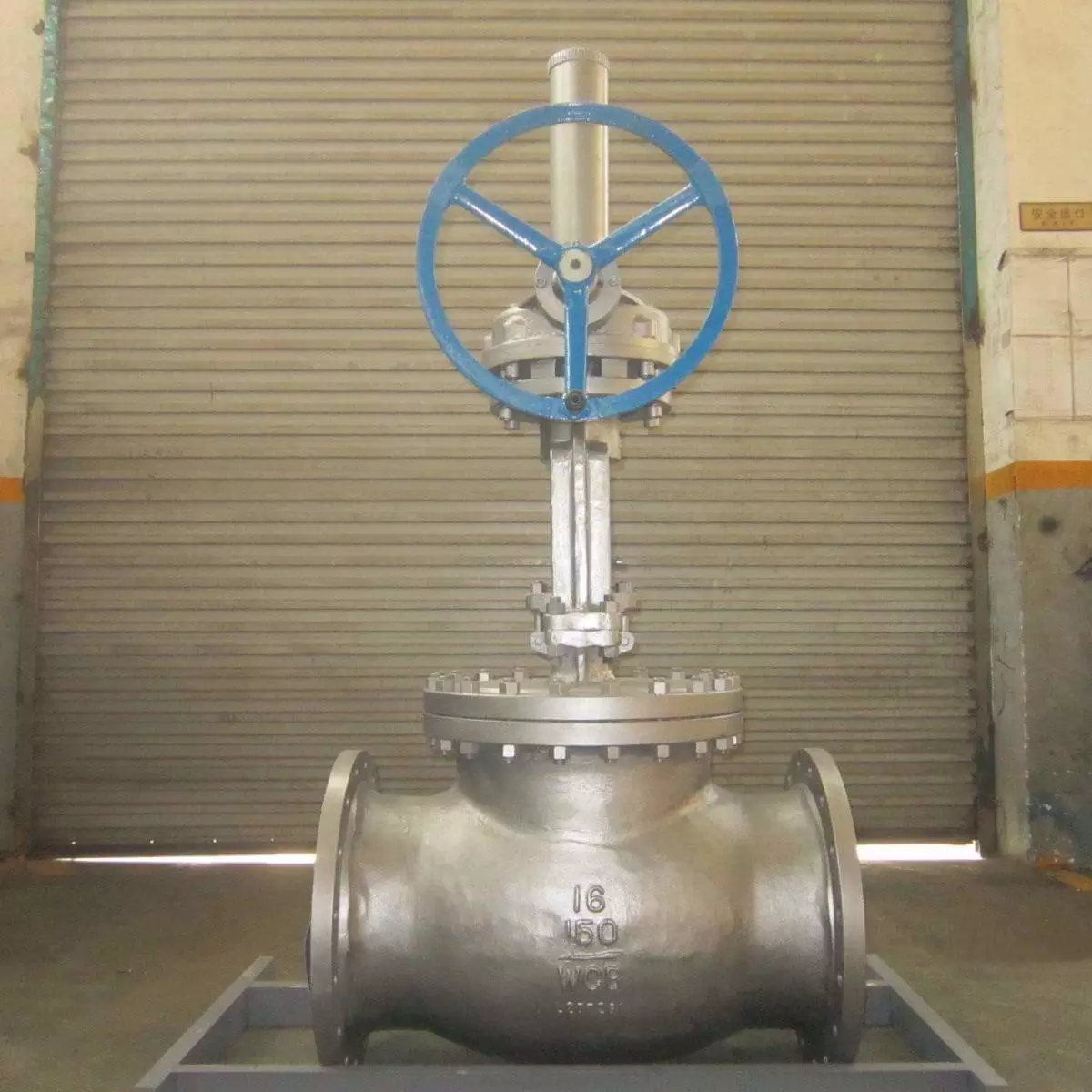

ASTM A216 WCB Globe Valve, Bolted Bonnet, 16 Inch, 150 LB
Key Specifications / Features
Model No.: WV-231223-AGBV-08 Hits: 94
As a premier Bolted Bonnet Globe Valve producer, we take pride in delivering a superior solution for your fluid control needs. Crafted in accordance with API 600 standards, our valve, made from high-quality Carbon Steel ASTM A216 WCB, boasts a substantial 16-inch size and a reliable Class 150 LB rating, making it an optimal choice for diverse industrial applications. Versatility is key with our valve, featuring a DN400 size and PN20 rating to accommodate various pressure requirements.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Valve description:
Globe valve, bolted bonnet, Raised flange.
Design: API 600.
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF.
Operation: Gear, handwheel
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Globe valve, bolted bonnet, Raised flange.
Design: API 600.
Body: ASTM A216 WCB
Nominal size: 16 Inch.
Nominal class: 150 LB.
End Connection: RF.
Operation: Gear, handwheel
Face to face: ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Globe valve. |
| Nominal diameter | 1/2 Inch - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API 600. |
| Face to face | ASME B16.10. |
| Operation | Gear, handwheel |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
| Special test | Impact test. |
