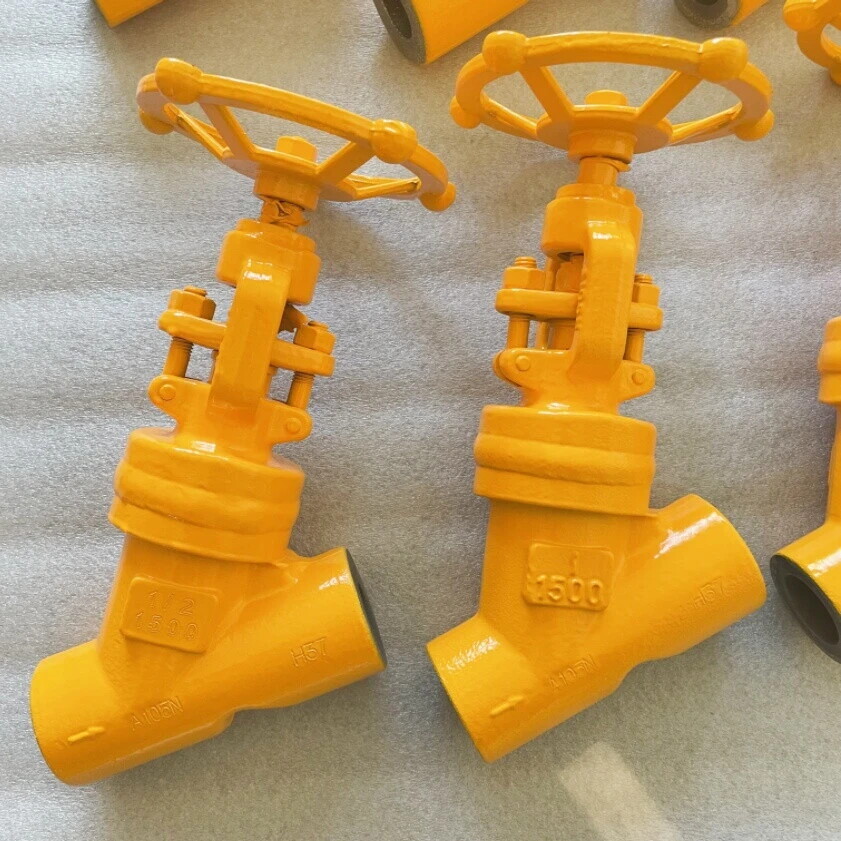

Welded Bonnet Y Globe Valve, A105N, 1/2 IN, 1500 LB, API 602

Welded Bonnet Y Globe Valve, A105N, 1/2 IN, 1500 LB, API 602

Key Specifications / Features

Model No.: WV-240427-YPGBV-01 Hits: 4

Discover our Welded Bonnet Globe Valve, meticulously crafted with a Y Type design for optimal performance. Constructed from robust ASTM A105N material and compliant with API 602 standards, this valve ensures dependable operation even in high-pressure environments. With a 1/2 inch size and Class 1500 LB rating, it's engineered to deliver precise control in demanding conditions.

Request a quote

Detail Information

Y TYPE Globe valve, carbon steel, welded bonnet, 1/2 INCH, CLASS 1500 LB, HANDWHEEL.

Standard: API 602.
Material: ASTM A105N
Size: 1/2 Inch, DN15
Pressure: Class 1500 LB, PN250
End Connection: SW
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, SW, NPT.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +425℃.



Product Y TYPE Globe valve.
Nominal diameter 1/2 Inch - 2 Inch.
Design temp. Down to -29℃.
Design pressure Class 150 - 2500 LB.
Material Carbon steel.
Design standard API 602.
Face to face MFG'S.
Operation Handwheel
Connection end BW, Flange, SW, NPT.
Test standard API 598.
Package Plywood
Application The oil and gas industry
